Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Seat Back Cushion Cover and Pad
    GM4321287Courtesy of GENERAL MOTORS COMPANY
  1. Remove Rear Seat Back Cushion Cover and Pad (2). Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%)

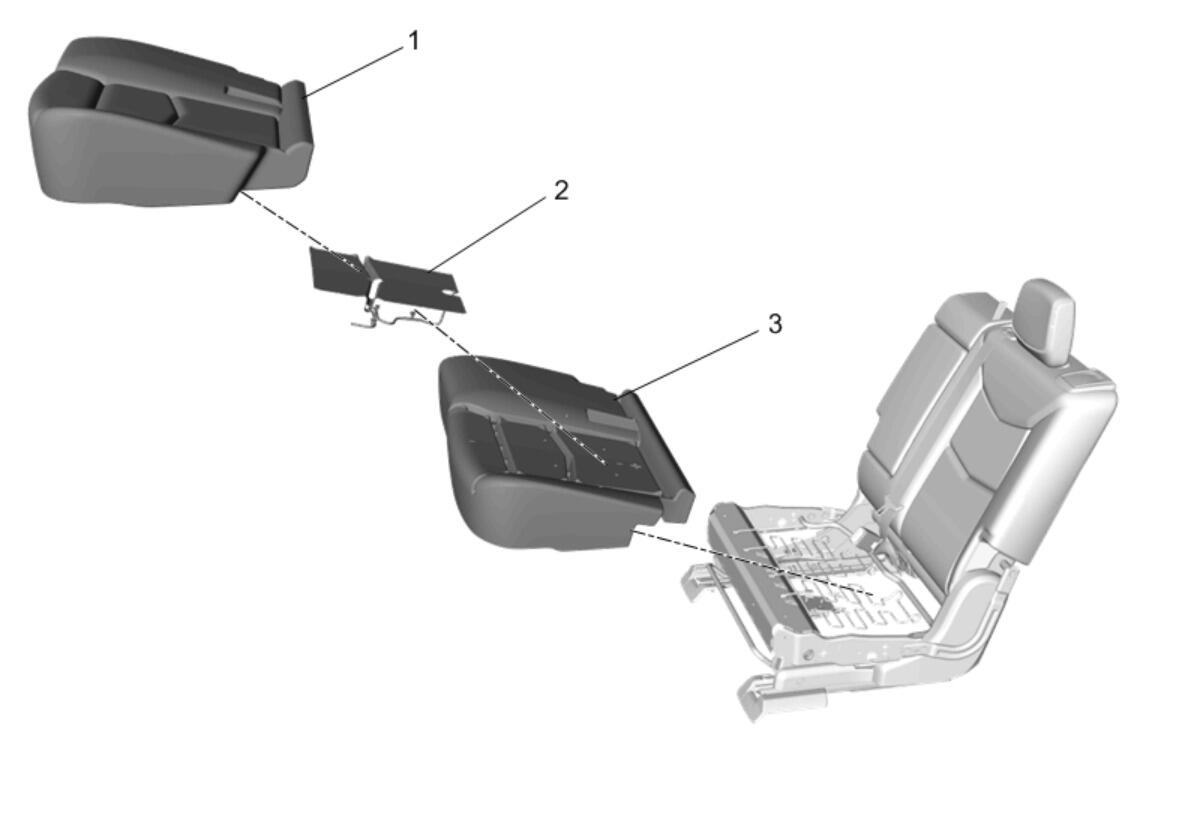

    2. Fig 2: Rear Seat Cushion Cover, Heater and Pad
    GM4316605Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Seat Cushion Cover and Pad (3). Refer to Rear Seat Cushion Cover and Pad Replacement (60%)

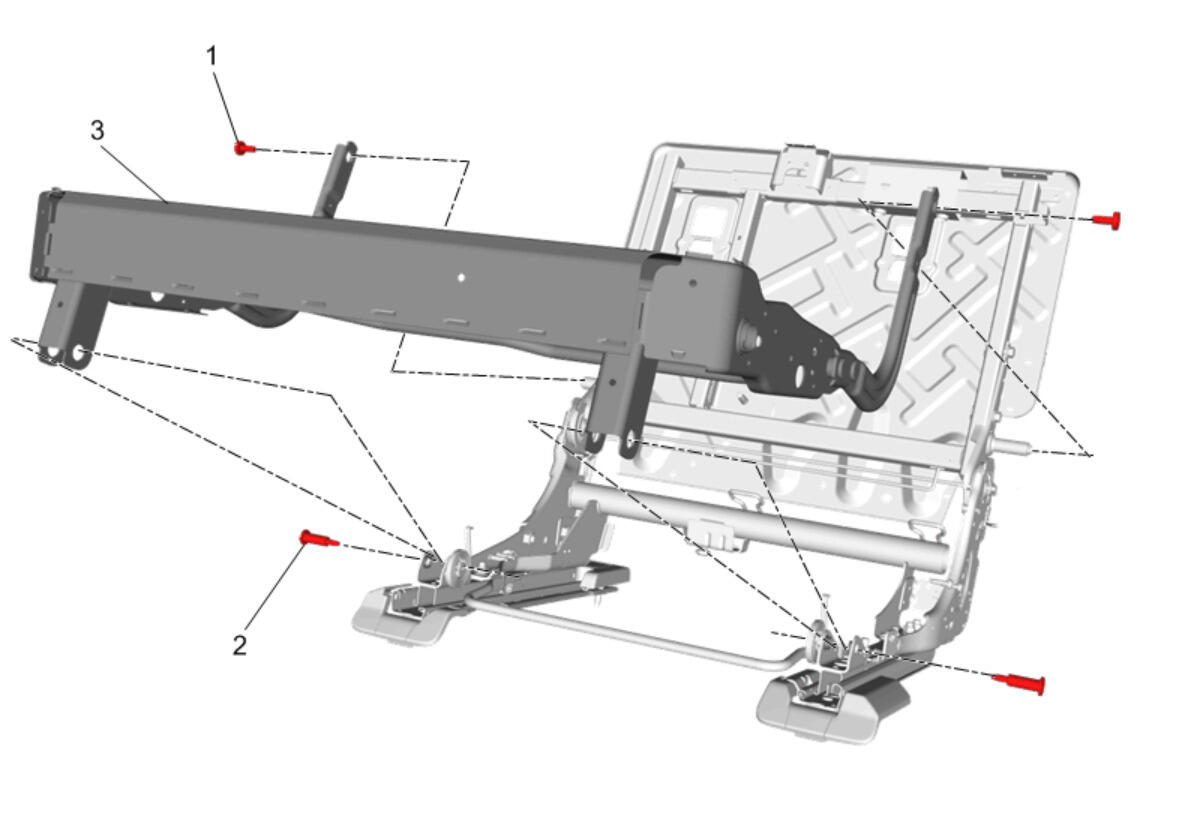

    3. Fig 3: Rear Seat Cushion Frame and Bolts
    GM4374239Courtesy of GENERAL MOTORS COMPANY
  3. Remove Rear Seat Cushion Frame Bolt - Upper (1) (Qty: 2)
  4. Remove Rear Seat Cushion Frame Bolt - Front (2) (Qty: 2)
  5. Remove Rear Seat Cushion Frame (3)

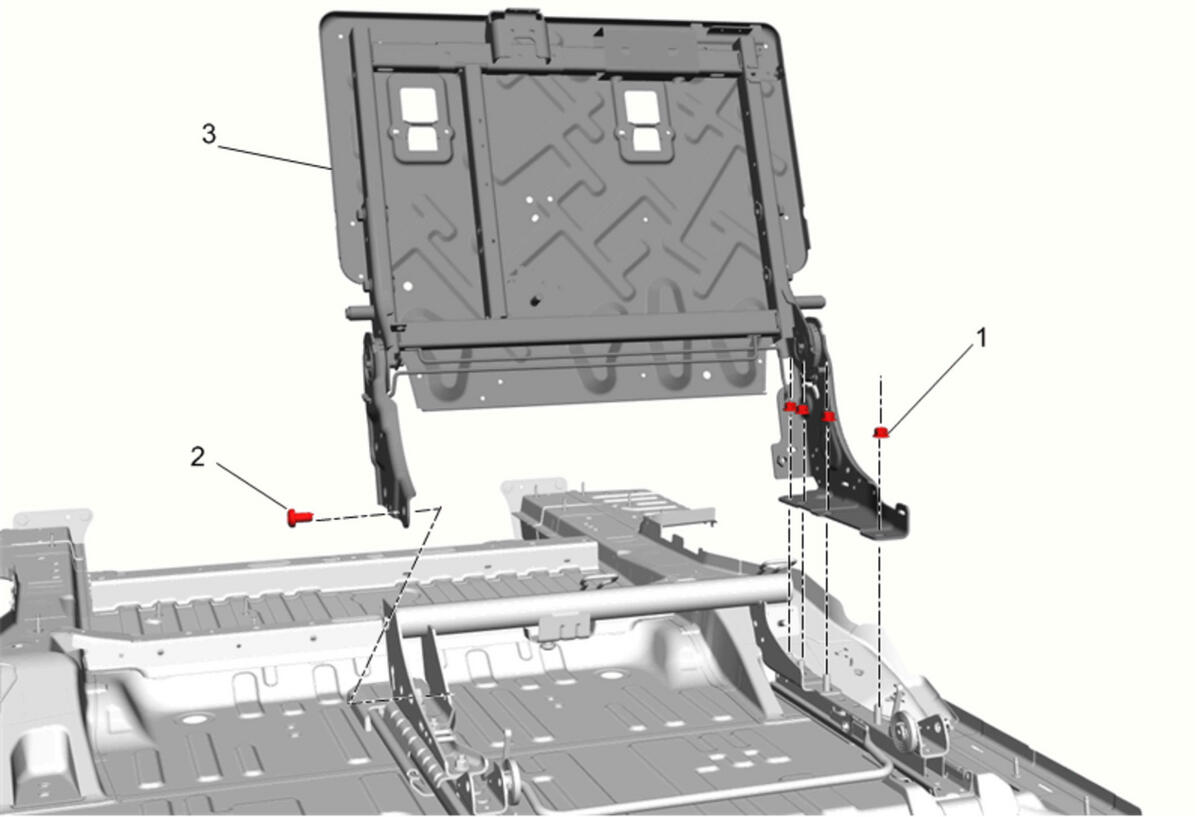

    6. Fig 4: Rear Seat Frame Nuts, Rear Seat Back Panel and Bolt
    GM4374238Courtesy of GENERAL MOTORS COMPANY
  6. Remove Rear Seat Frame Nuts (1) (Qty: 4)
  7. Remove Rear Seat Back Panel Bolt (2)
  8. Remove Rear Seat Back Panel (3)

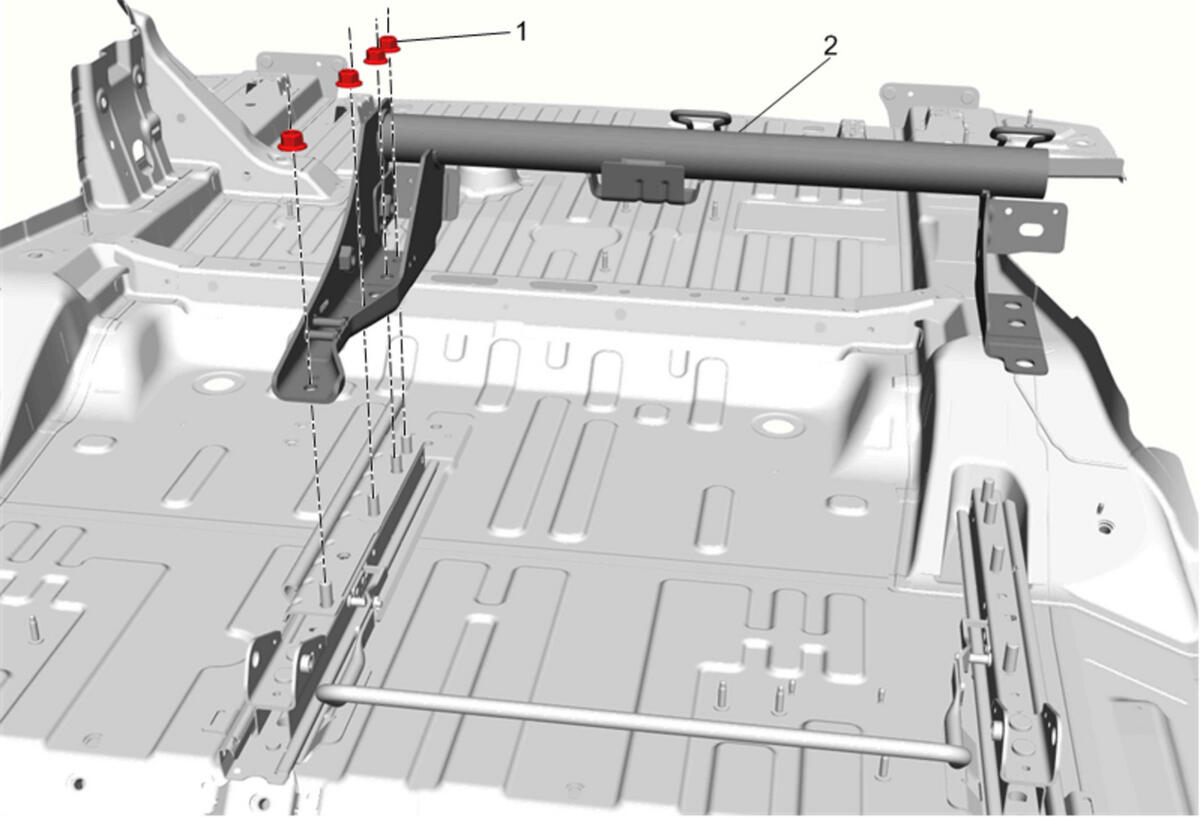

    9. Fig 5: Rear Seat Frame Stanchion and Nuts
    GM4325884Courtesy of GENERAL MOTORS COMPANY
  9. Remove Rear Seat Frame Nut (1) (Qty: 4)
  10. Remove Rear Seat Frame Stanchion (2)

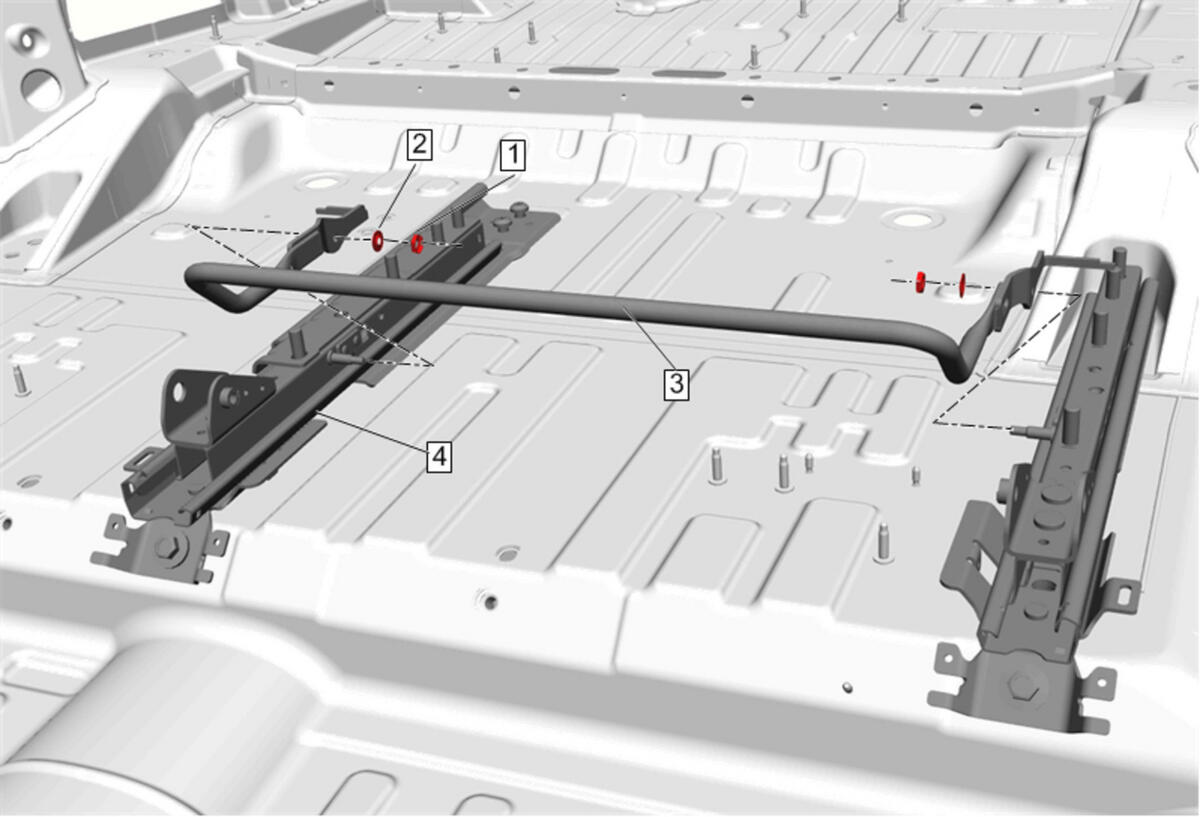

    11. Fig 6: Rear Seat Cushion Bracket, Fasteners, Washers and Rear Seat Support
    GM4325893Courtesy of GENERAL MOTORS COMPANY
  11. Remove Rear Seat Cushion Bracket Fasteners (1) (Qty: 2)
  12. Remove Rear Seat Cushion Bracket Washers (2) (Qty: 2)
  13. Remove Rear Seat Cushion Bracket (3)
  14. Remove Rear Seat Support (4)
  15. Transfer components as necessary.
