Rear Seat Belt Opening Bezel Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

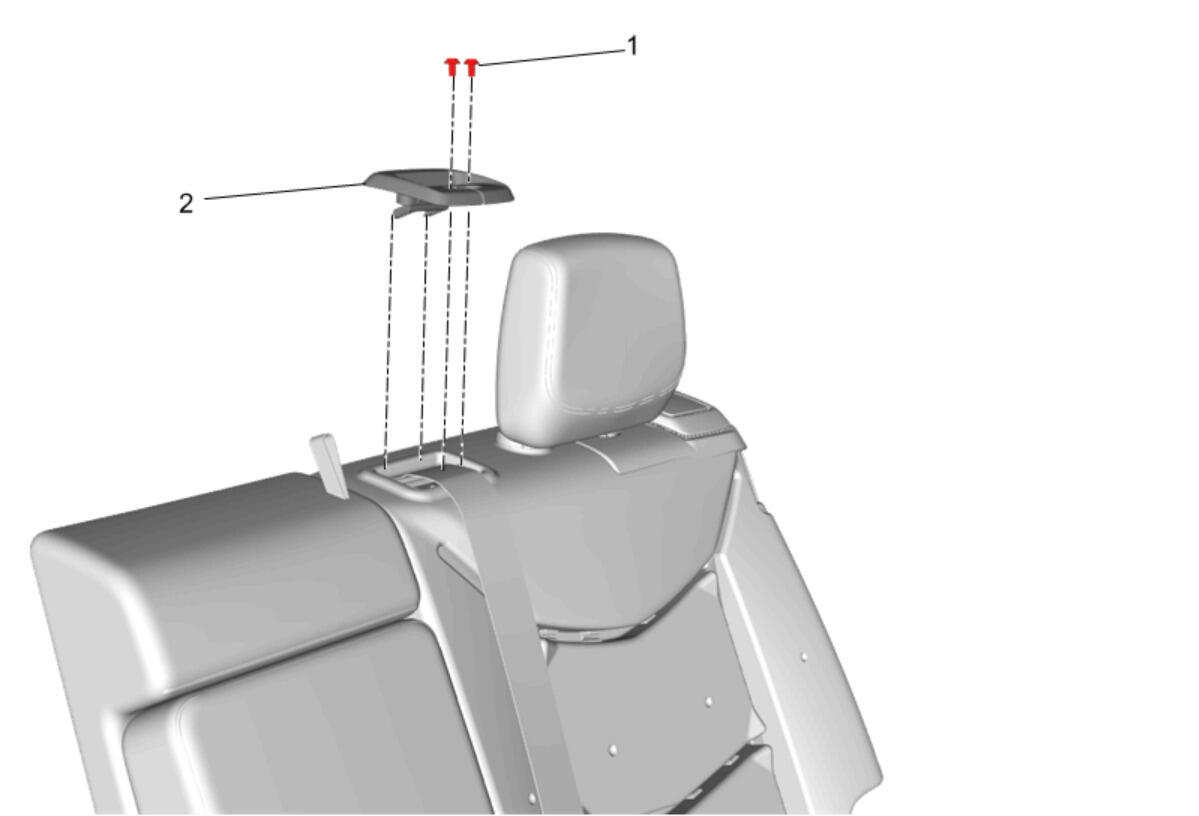

Fig 1: Rear Seat Belt Opening Bezel
GM4316529Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Belt Opening Bezel Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Seat Belt Opening Bezel
