Rear Seat Back Cushion Latch Release Handle Replacement (Upper)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

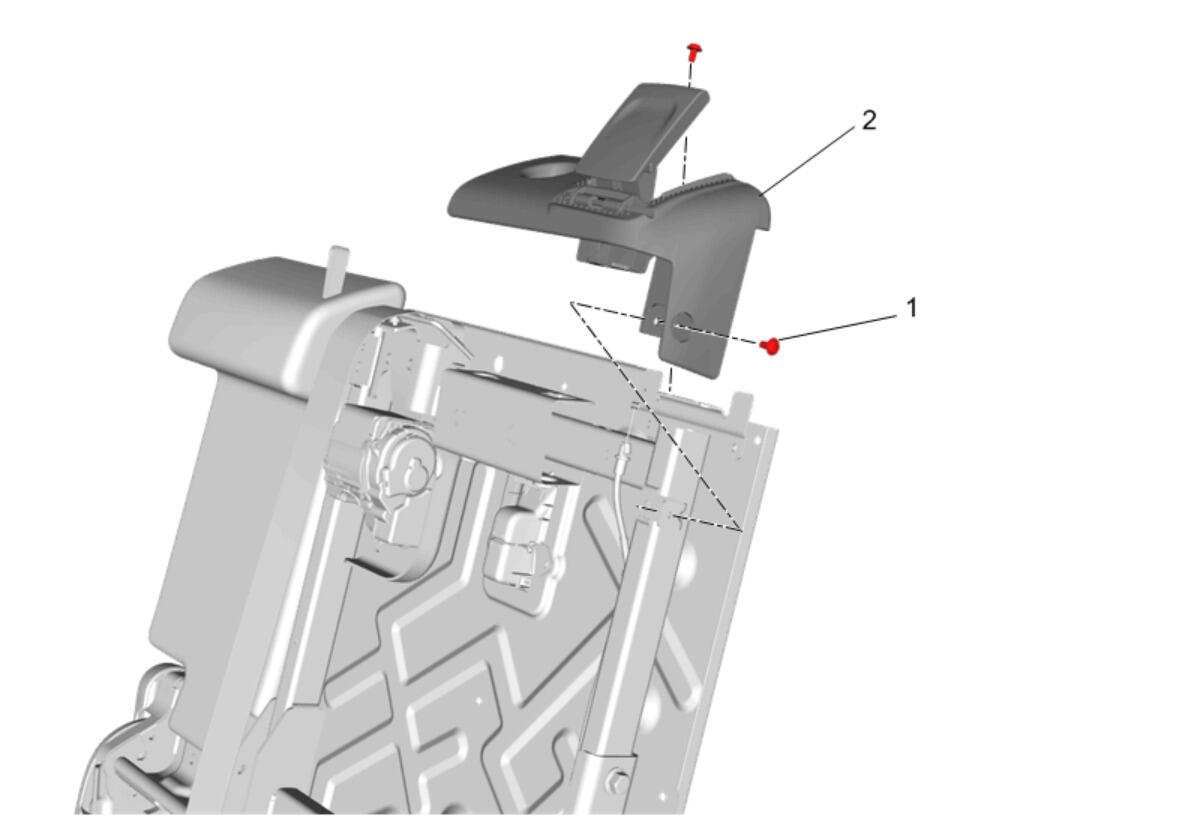

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Rear Seat Back Cushion Cover and Pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) Rear Seat Back Cushion Cover and Pad Replacement (40%) Rear Seat Back Cushion Cover and Pad Replacement (Bucket) |
|
| 1 | Rear Seat Back Cushion Latch Release Handle Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in) |
| 2 | Rear Seat Back Cushion Latch Release Handle Procedure Disconnect the cable. |
