Rear Seat Back Cushion Latch Release Handle Replacement (Rear)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

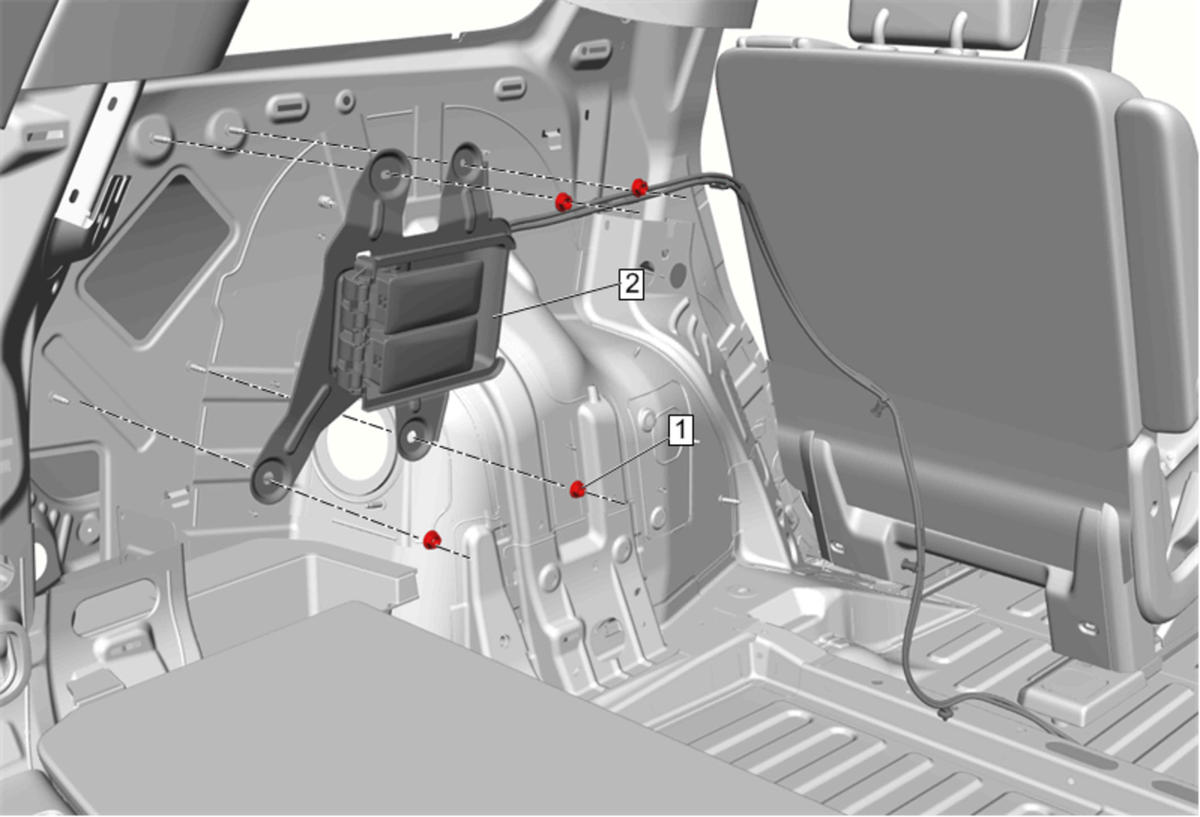

Fig 1: Rear Seat Back Cushion Latch Release Handle (Rear)
GM4360632Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Rear Seat. Refer to Rear Seat Removal and Installation (40%) Rear Seat Removal and Installation (60%) Rear Seat Removal and Installation (Bucket)
  2. Remove Quarter Lower Rear Trim Panel. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)
1 Rear Seat Back Cushion Latch Release Handle Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Rear Seat Back Cushion Latch Release Handle

Procedure

  1. Disconnect the lever cable retainers from the body side inner weld studs.
  2. Pull back the rear compartment floor panel trim to gain access to the release lever cable equalizer.
  3. Disengage the recliner actuator cable from the release lever cable equalizer.
  4. Disengage the release lever cable equalizer from the floor panel studs.
