Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Seat
    GM4309864Courtesy of GENERAL MOTORS COMPANY
  1. Remove Rear Seat (3). Refer to Rear Seat Removal and Installation (40%)
    2. Fig 2: Rear Seat Back Center Bar Front Finish Cover
    GM4316597Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Seat Back Center Bar Front Finish Cover (2). Refer to Rear Seat Back Center Bar Front Finish Cover Replacement (40%)

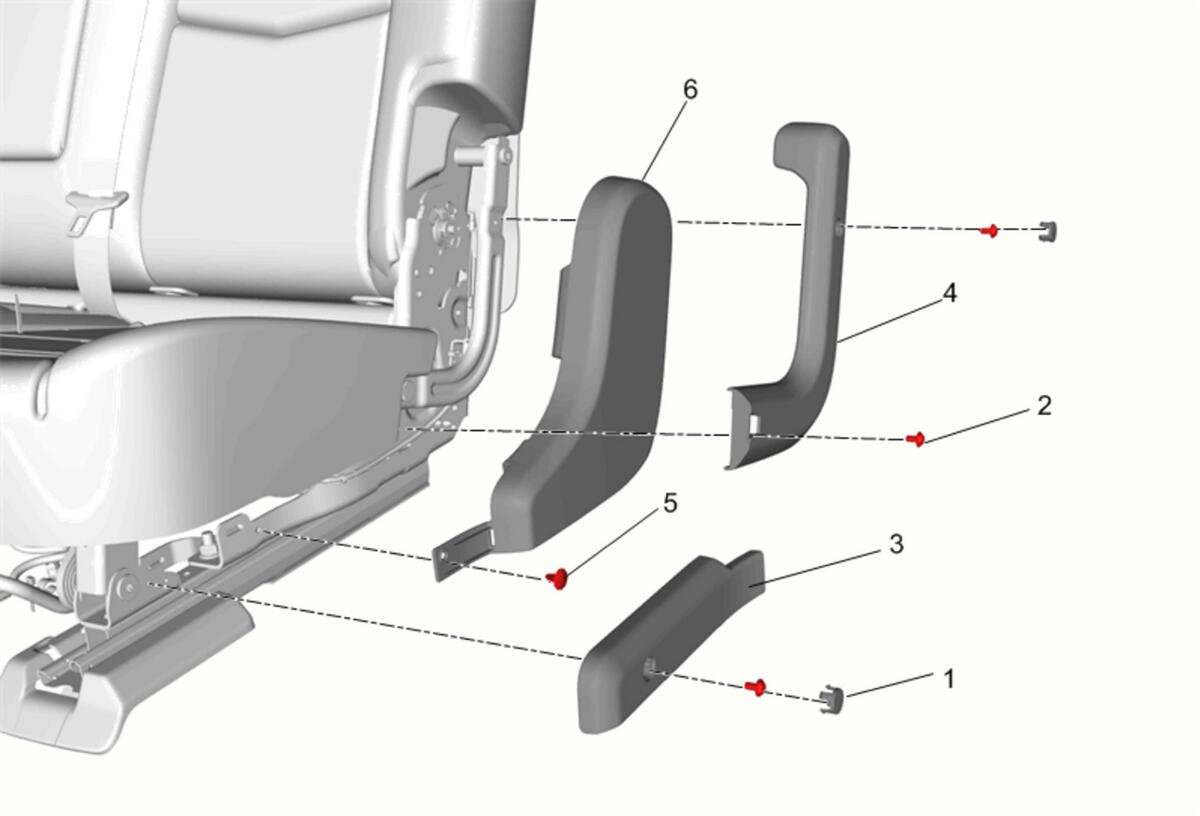

    3. Fig 3: Rear Seat Outer Hinge Finish Cover
    GM4317778Courtesy of GENERAL MOTORS COMPANY
  3. Remove Rear Seat Outer Hinge Finish Cover (3, 4, 6). Refer to Rear Seat Outer Hinge Finish Cover Replacement (60/40 Bench)

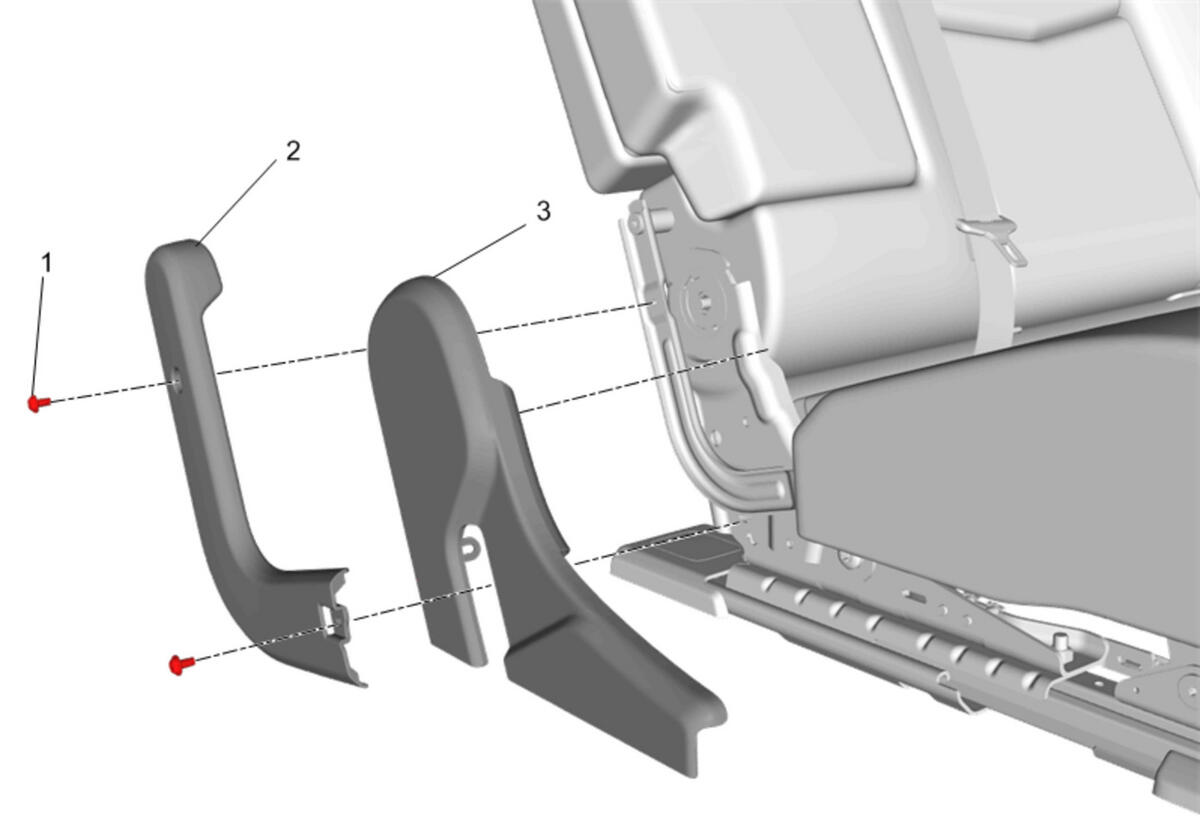

    4. Fig 4: Rear Seat Inner Hinge Finish Cover
    GM4316591Courtesy of GENERAL MOTORS COMPANY
  4. Remove Rear Seat Inner Hinge Finish Cover (2, 3). Refer to Rear Seat Inner Hinge Finish Cover Replacement (60/40 Bench)
    5. Fig 5: Rear Seat Head Restraint
    GM4214848Courtesy of GENERAL MOTORS COMPANY
  5. Remove Rear Seat Head Restraint (1). Refer to Rear Seat Head Restraint Replacement
    6. Fig 6: Rear Seat Head Restraint Guide
    GM4214973Courtesy of GENERAL MOTORS COMPANY
  6. Remove Rear Seat Head Restraint Guide (1). Refer to Rear Seat Head Restraint Guide Replacement
    7. Fig 7: Rear Seat Back Cushion Latch Release Handle Bezel
    GM4311555Courtesy of GENERAL MOTORS COMPANY
  7. Remove Rear Seat Back Cushion Latch Release Handle Bezel (2). Refer to Rear Seat Back Latch Release Handle Bezel Replacement (Upper) Rear Seat Back Latch Release Handle Bezel Replacement (Rear)

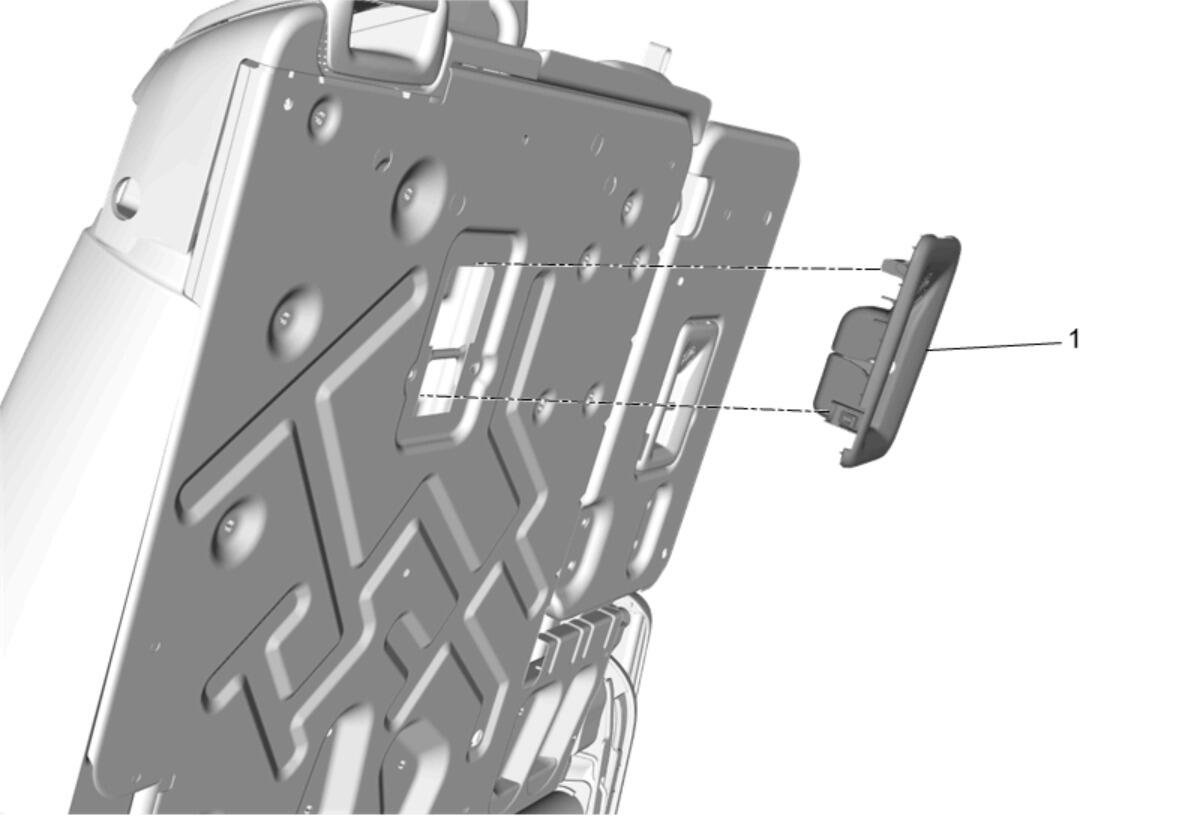

    8. Fig 8: Rear Seat Anchor Plate Bezel
    GM4318445Courtesy of GENERAL MOTORS COMPANY
  8. Remove Rear Seat Anchor Plate Bezel (1). Refer to Rear Seat Anchor Plate Bezel Replacement

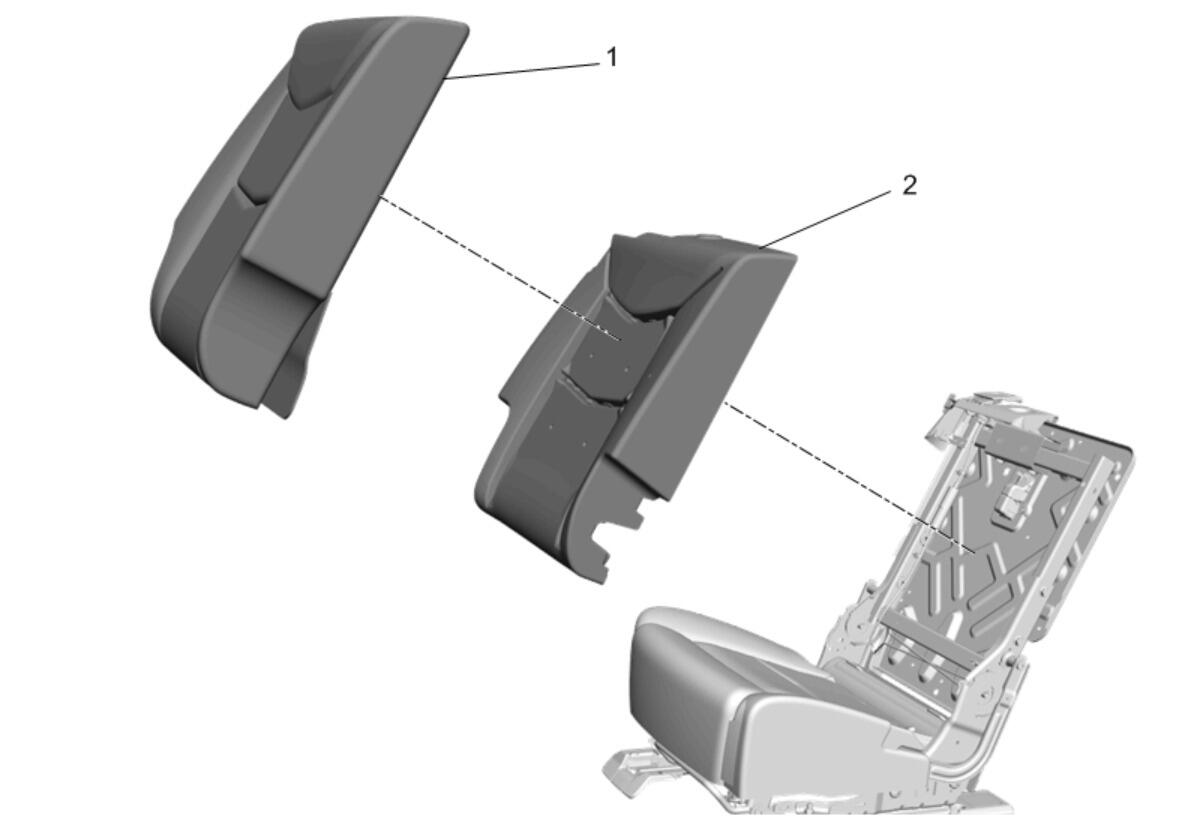

    9. Fig 9: Rear Seat Back Cushion Cover and Pad
    GM4326193Courtesy of GENERAL MOTORS COMPANY
  9. Unzip the zippers.
  10. Disengage the J-channel retainers from the seat back cushion frame.
  11. Remove Rear Seat Back Cushion Cover (1)
  12. Remove Rear Seat Back Cushion Pad (2)
