Rear Seat Armrest Replacement (Bucket)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

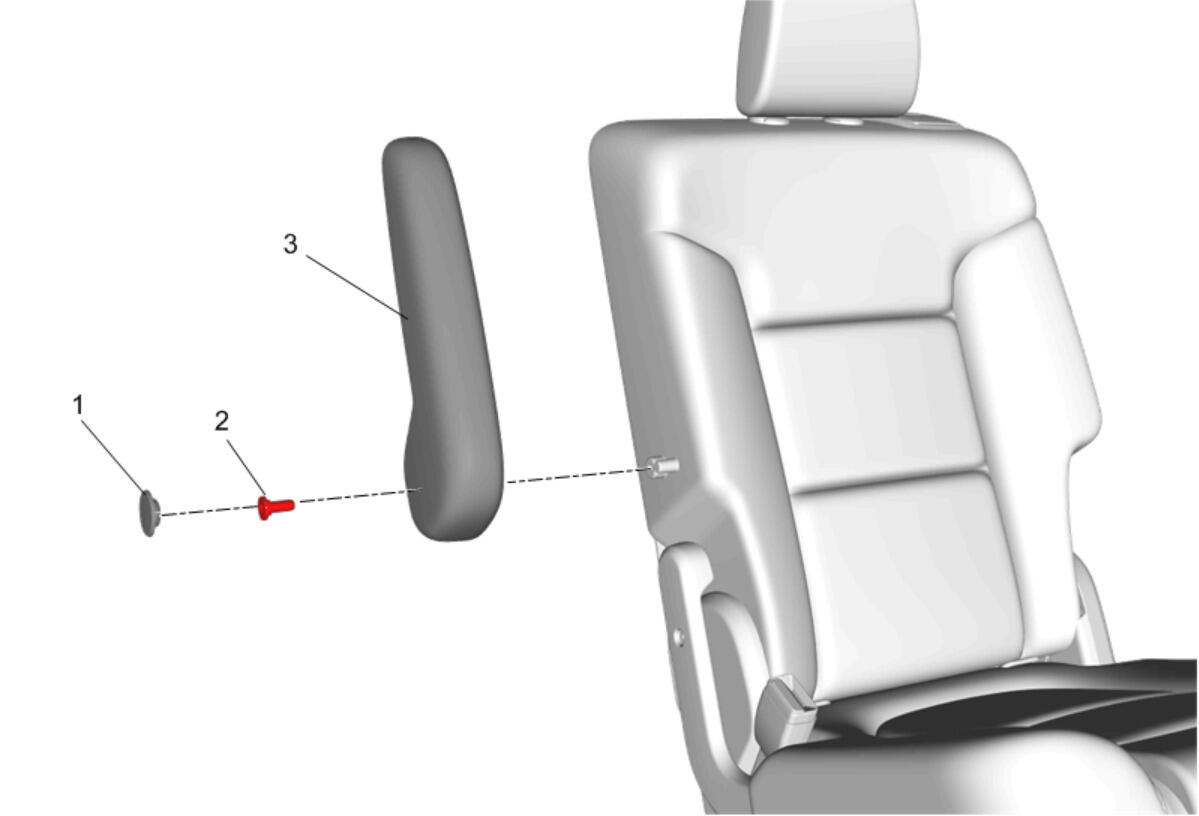

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Armrest Support Finish Cover |
| 2 | Rear Seat Armrest Fastener
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Rear Seat Armrest |
