Rear Seat Armrest Replacement (60%)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

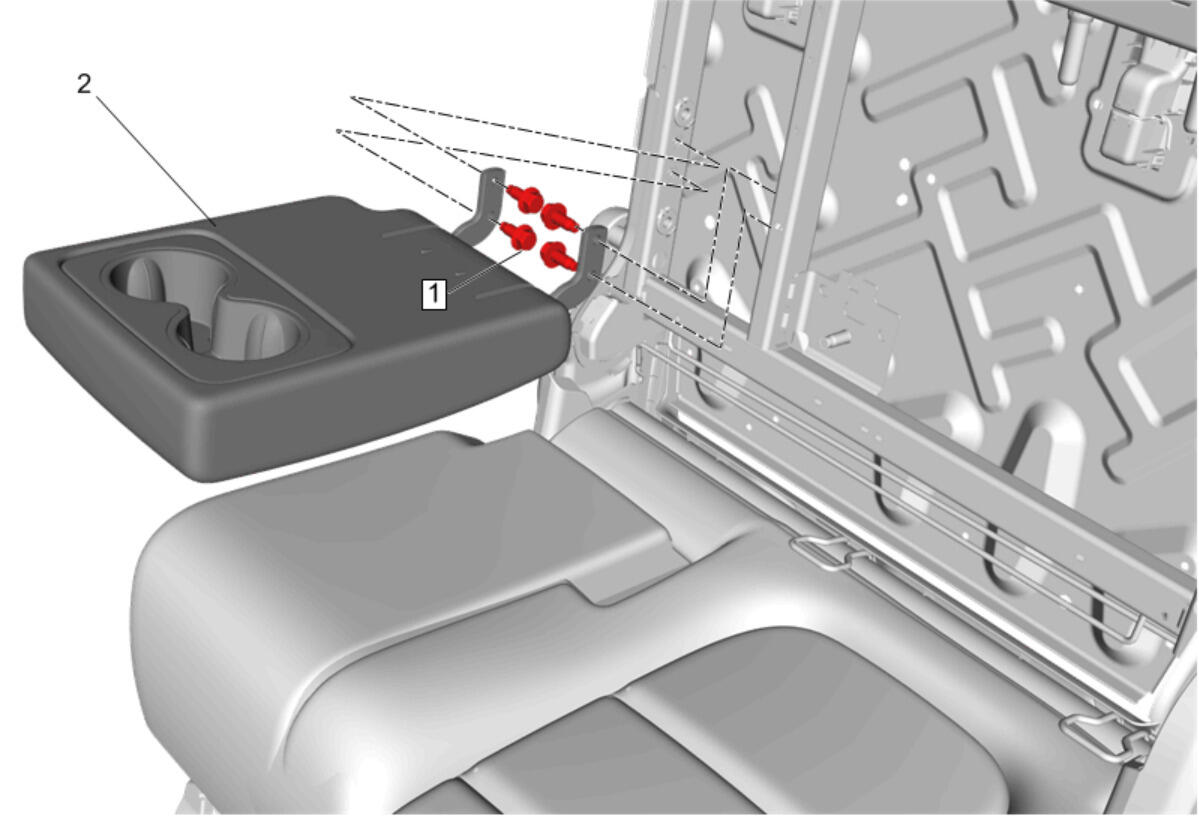

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Rear Seat Back Cushion Cover and Pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) |
|
| 1 | Rear Seat Armrest Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Rear Seat Armrest |
