Front Seat Cushion Pad Support Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

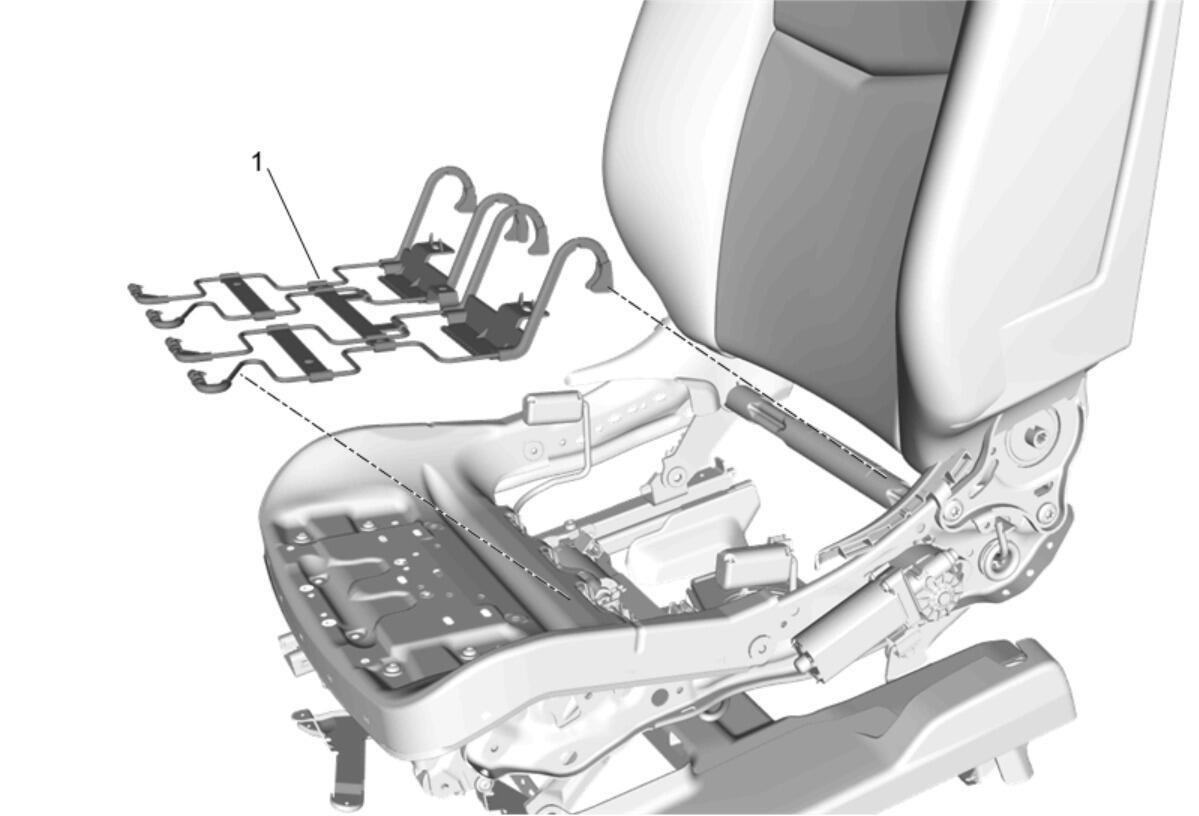

Fig 1: Front Seat Cushion Pad Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction. Preliminary Procedures Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement If servicing the passenger seat, refer to Airbag Front Passenger Presence Module Replacement
1	Front Seat Cushion Pad Support Procedure Transfer components as necessary. If servicing the passenger seat, re-zero the passenger presence system. Refer to Passenger Presence System Rezeroing

Callout

Component Name

WARNING:

To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction.

Preliminary Procedures

Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement
If servicing the passenger seat, refer to Airbag Front Passenger Presence Module Replacement

Front Seat Cushion Pad Support

Procedure

Transfer components as necessary.
If servicing the passenger seat, re-zero the passenger presence system. Refer to Passenger Presence System Rezeroing
