Driver or Passenger Seat Cushion Frame Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

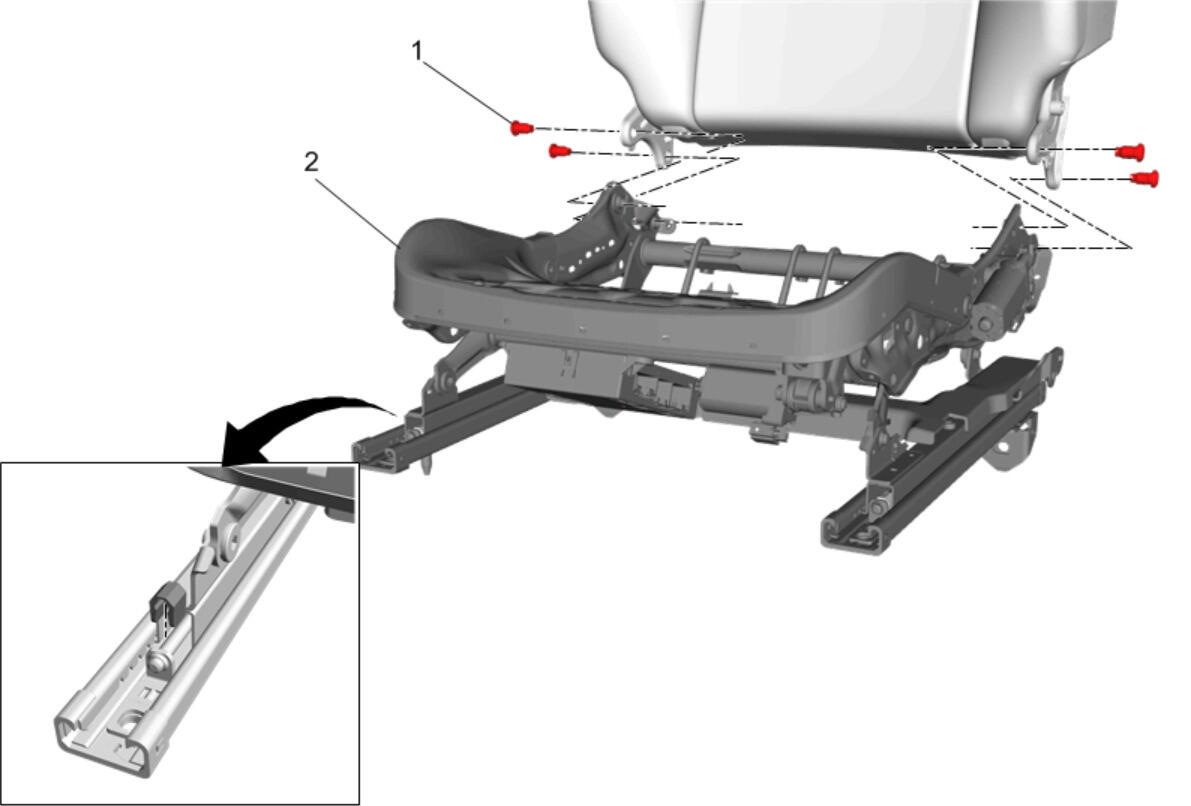

Fig 1: Driver or Passenger Seat Cushion Frame
GM4531594Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Procedure Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement
1 Driver or Passenger Seat Back Frame Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
NOTE:

When replacing the seat cushion frame, ensure the front seat adjuster stops are installed.
