Driver or Passenger Seat Adjuster Handle Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

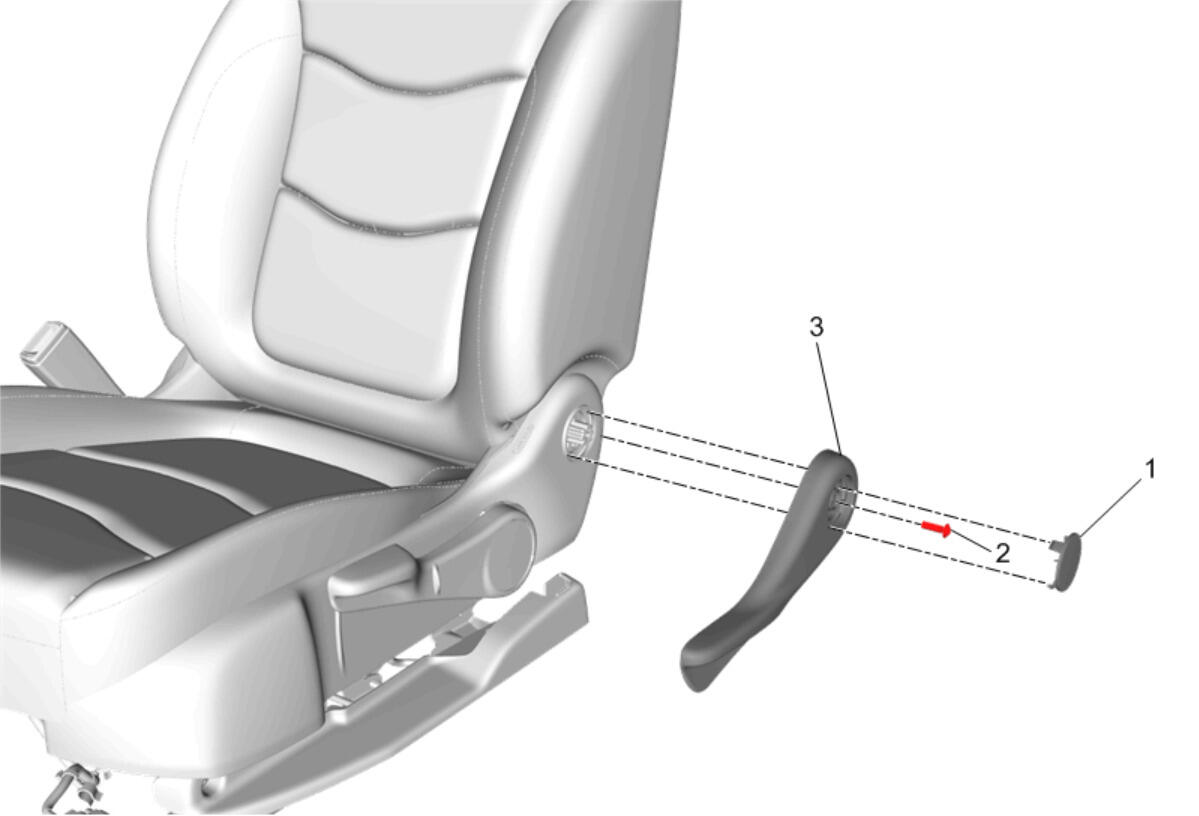

Fig 1: Driver or Passenger Seat Adjuster Handle
GM4089610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Adjuster Finish Cover Bolt Cap
2 Front Seat Adjuster Handle Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Front Seat Adjuster Handle
