Front Suspension Automatic Forward Lighting Position Sensor Replacement (Coupe)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

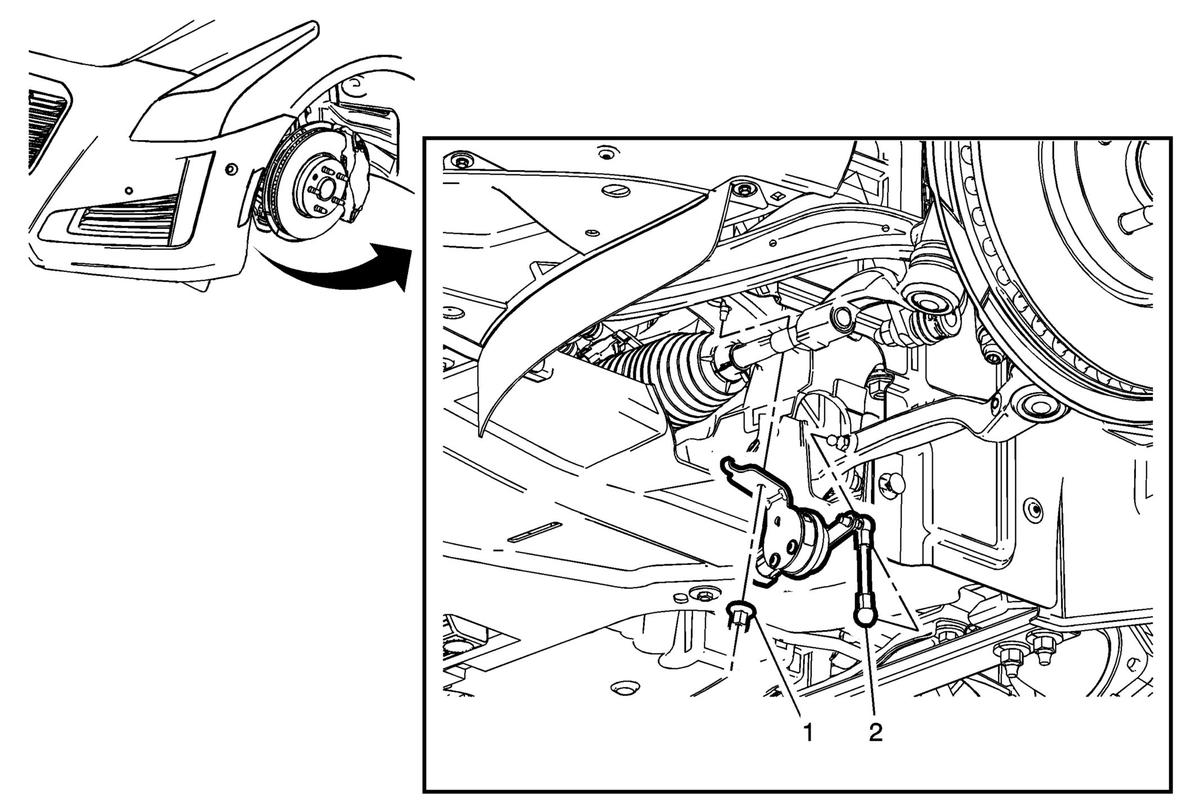

Fig 1: Front Suspension Automatic Forward Lighting Position Sensor (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front tire and wheel. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series October 4th 2015 and Earlier)Tire and Wheel Removal and Installation (V-Series October 5th 2015 and Later) .
1	Front Suspension Automatic Forward Lighting Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Suspension Automatic Forward Lighting Position Sensor Procedure Disconnect the electrical connector. With a suitable tool separate the ball and socket.

Callout

Component Name

Preliminary Procedure
Remove the front tire and wheel. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series October 4th 2015 and Earlier)Tire and Wheel Removal and Installation (V-Series October 5th 2015 and Later) .

Front Suspension Automatic Forward Lighting Position Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Suspension Automatic Forward Lighting Position Sensor

Procedure

Disconnect the electrical connector.
With a suitable tool separate the ball and socket.
