Front Side Marker Lamp Bulb Replacement (Coupe)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

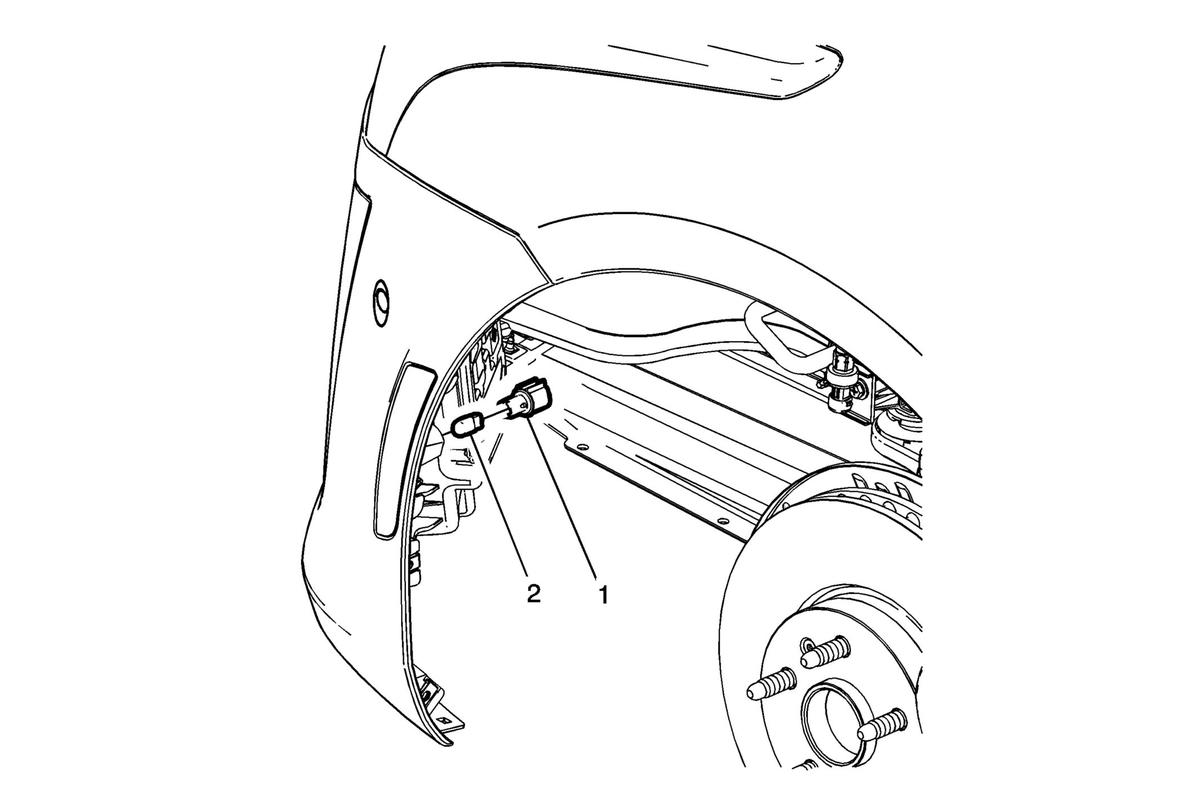

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) . |
|
| 1 | Front Side Marker Lamp Bulb Socket Procedure Turn front side marker lamp bulb socket counterclockwise and pull straight out. |
| 2 | Front Side Marker Lamp Bulb Procedure Pull front side marker lamp bulb straight out of the front side marker lamp bulb socket. |
