Module Power, Ground, Serial Data, Lumbar, and Memory Controls (AAB)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

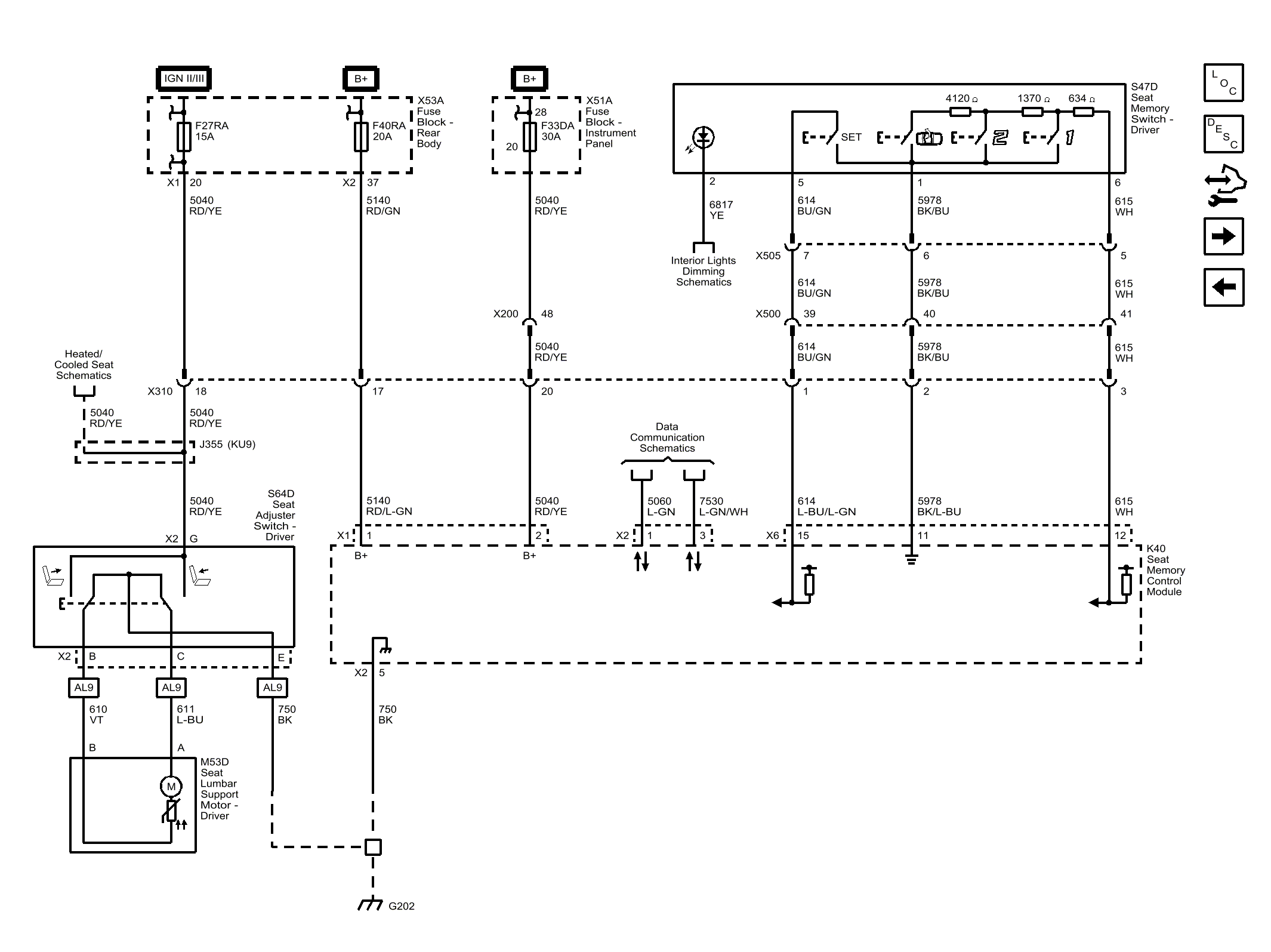

Fig 1: Module Power, Ground, Serial Data, Lumbar, and Memory Controls (AAB)
GM4373437Courtesy of GENERAL MOTORS COMPANY
