Front Seat Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

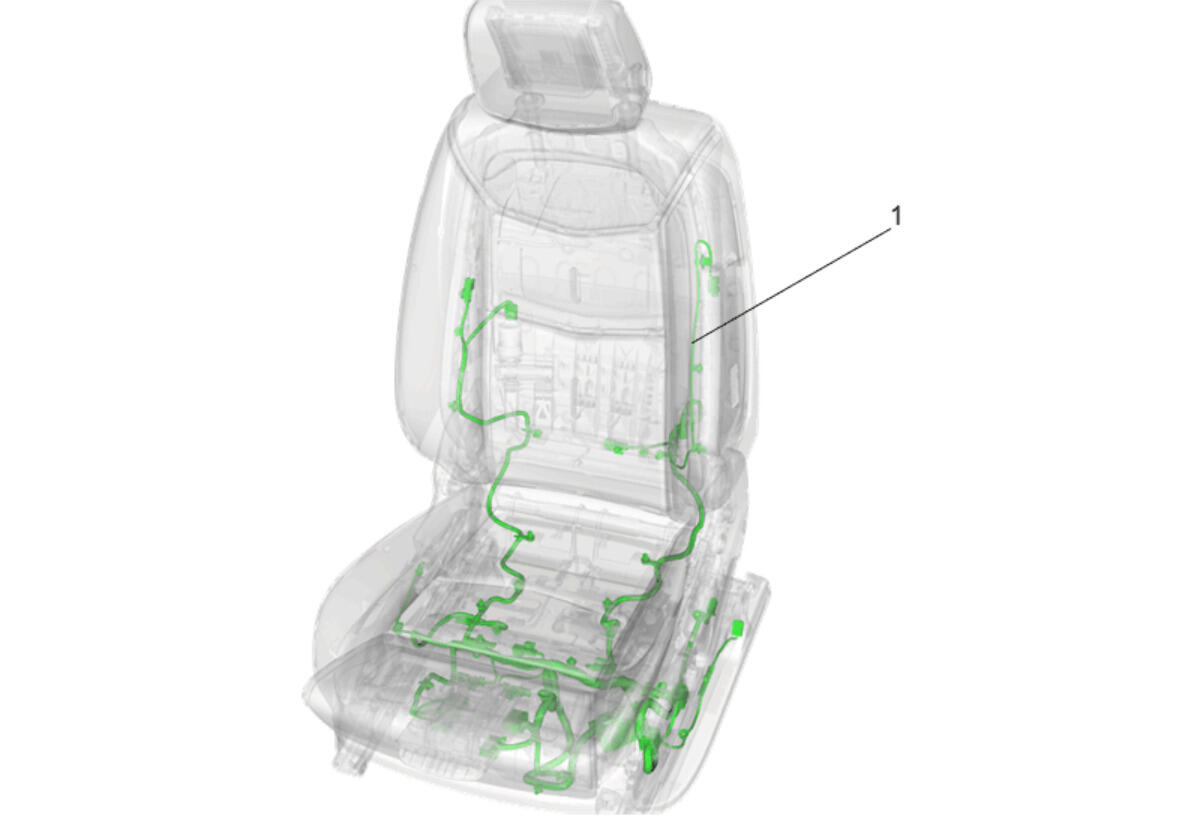

Fig 1: Front Seat Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable SIR system. Refer to SIR Disabling and Enabling Remove Driver or Passenger Seat. Refer to Driver or Passenger Seat Removal and Installation
1	Front Seat Wiring Harness NOTE: Typical wiring harness shown, individual harness may be different due to option content. Various seat components may need to be removed from the seat to access the harness depending on seat and content options.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable SIR system. Refer to SIR Disabling and Enabling
Remove Driver or Passenger Seat. Refer to Driver or Passenger Seat Removal and Installation

Front Seat Wiring Harness

NOTE:

Typical wiring harness shown, individual harness may be different due to option content. Various seat components may need to be removed from the seat to access the harness depending on seat and content options.
