Driver or Passenger Seat Vertical Adjuster Actuator Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

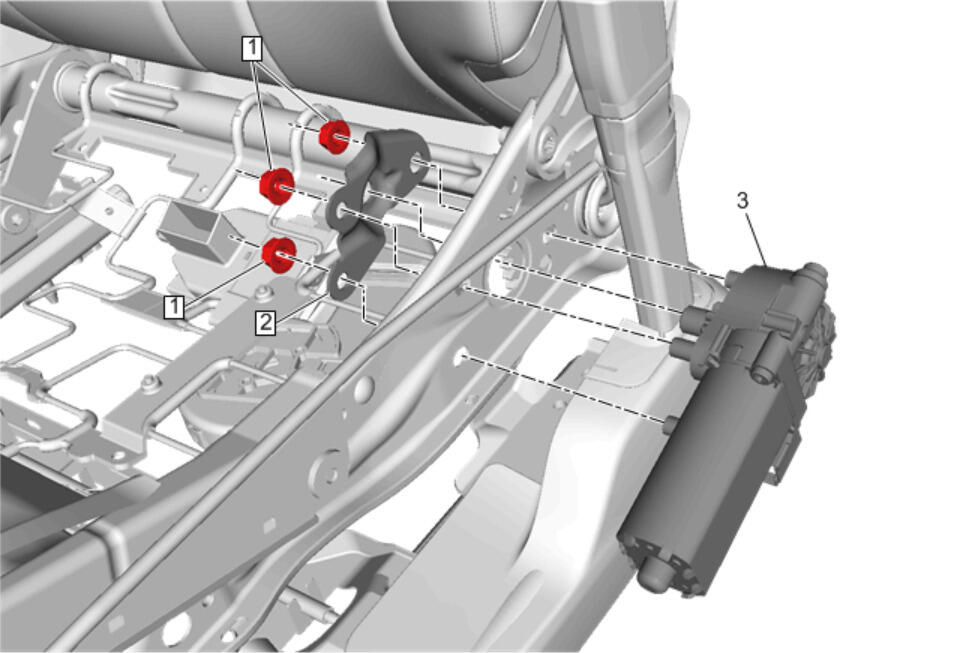

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement |
|
| 1 | Front Seat Vertical Adjuster Actuator Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 23 N.m (17 lb ft) |
| 2 | Front Seat Adjuster Vertical Actuator Bracket |
| 3 | Front Seat Adjuster Vertical Actuator Procedure Carefully disengage the adjuster by pulling outward. |
