Power, Ground, Serial Data and Traction Control Switch (JE5 or J55)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

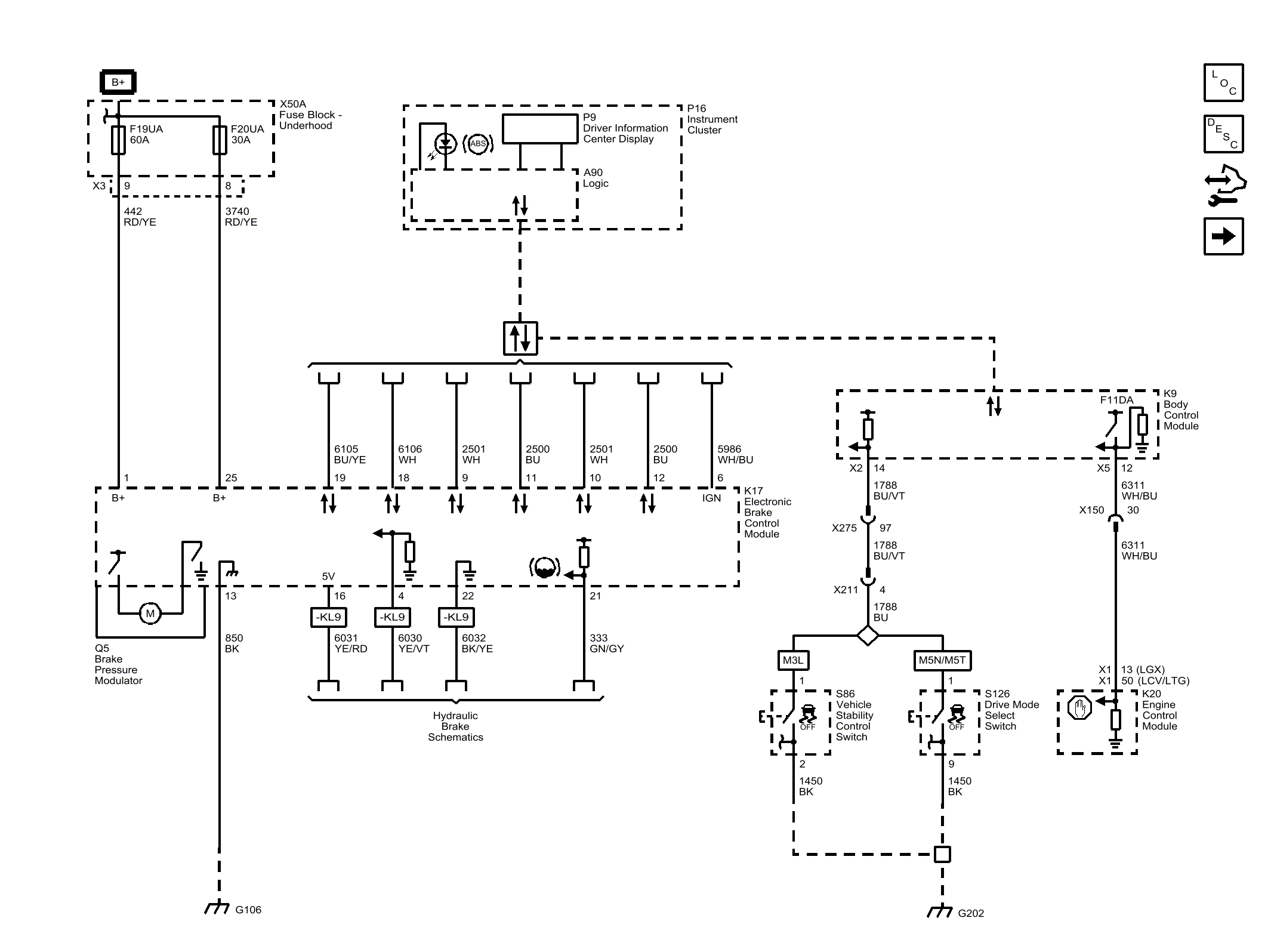

Fig 1: Power, Ground, Serial Data and Traction Control Switch (JE5 or J55)
GM4050575Courtesy of GENERAL MOTORS COMPANY
