Section 298 (Wiring Schematics - Trailer Connector/Provision Schematics)
>>
Schematic Wiring Diagrams
>>
Trailer Connector/Provision Wiring Schematics
>>
Trailer Wiring (V2S)
Trailer Wiring (V2S)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

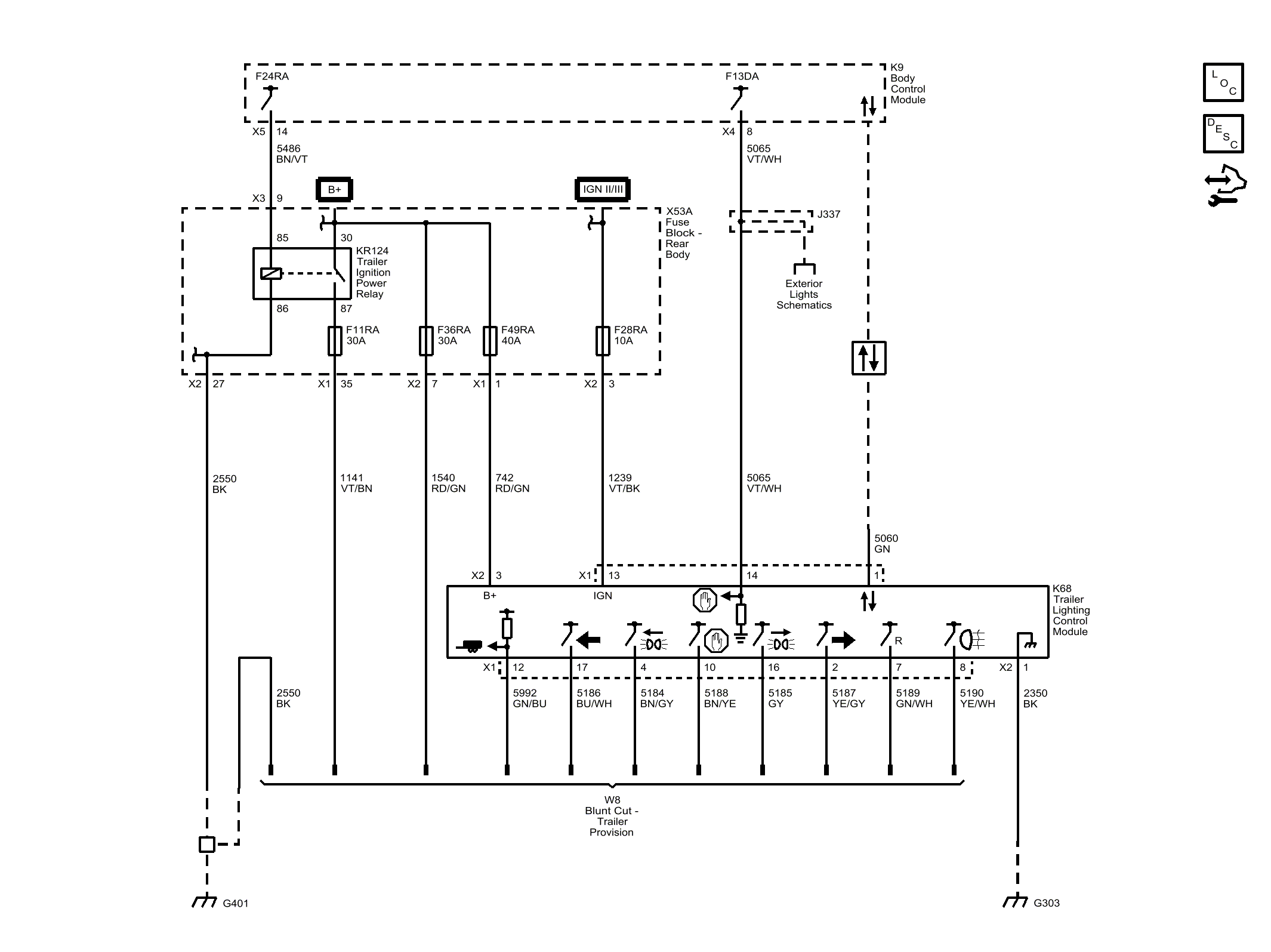

Fig 1: Trailer Wiring (V2S)
Courtesy of GENERAL MOTORS COMPANY
