Section 291 (Engine Controls And Fuel - 3.6L (LGX LF4) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics (LGX)
>>
Power, Ground, Serial Data, and MIL
Power, Ground, Serial Data, and MIL
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

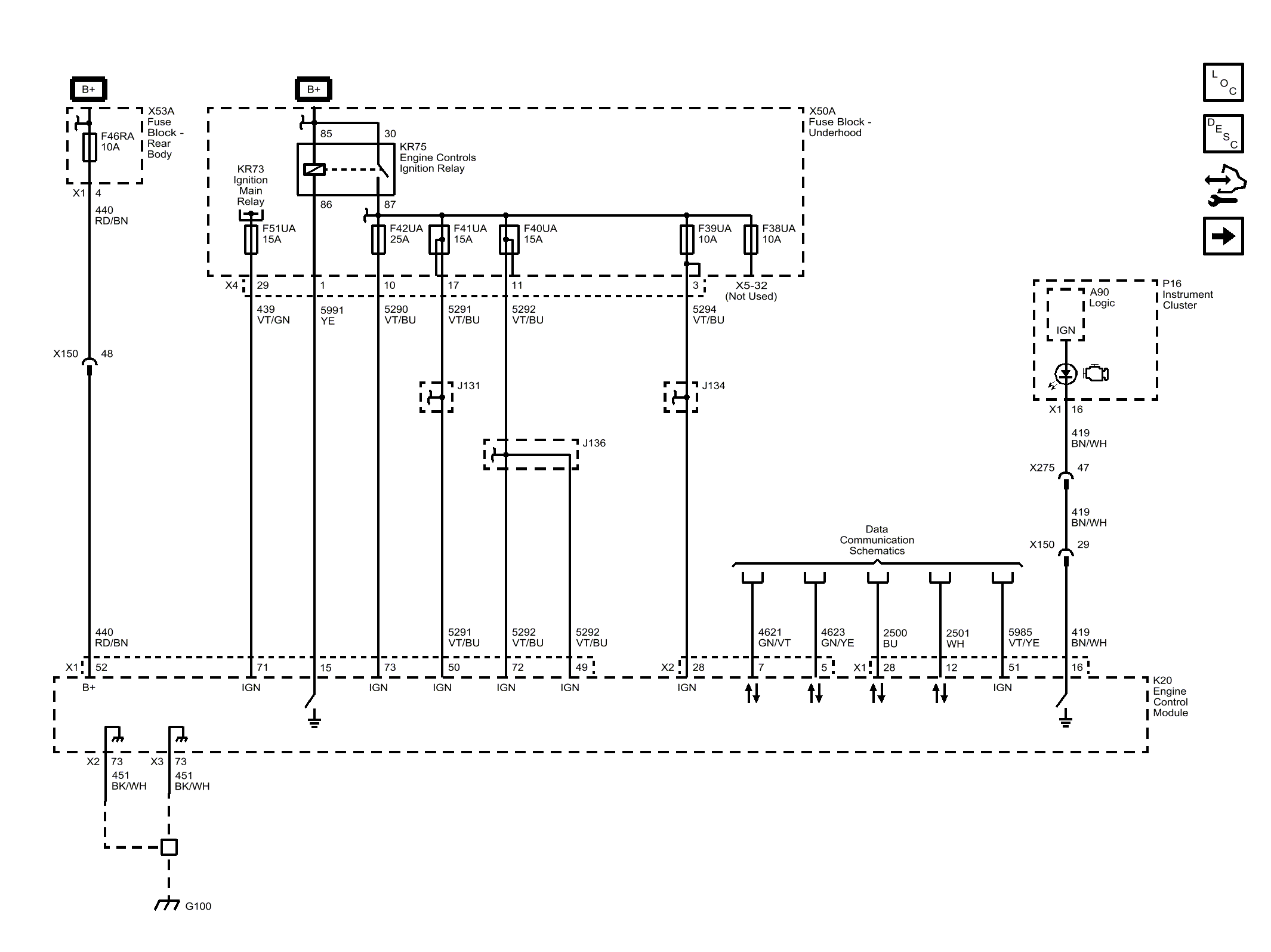

Fig 1: Power, Ground, Serial Data, and MIL
Courtesy of GENERAL MOTORS COMPANY
