Fuel Controls - Fuel Injectors and High Pressure Control

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

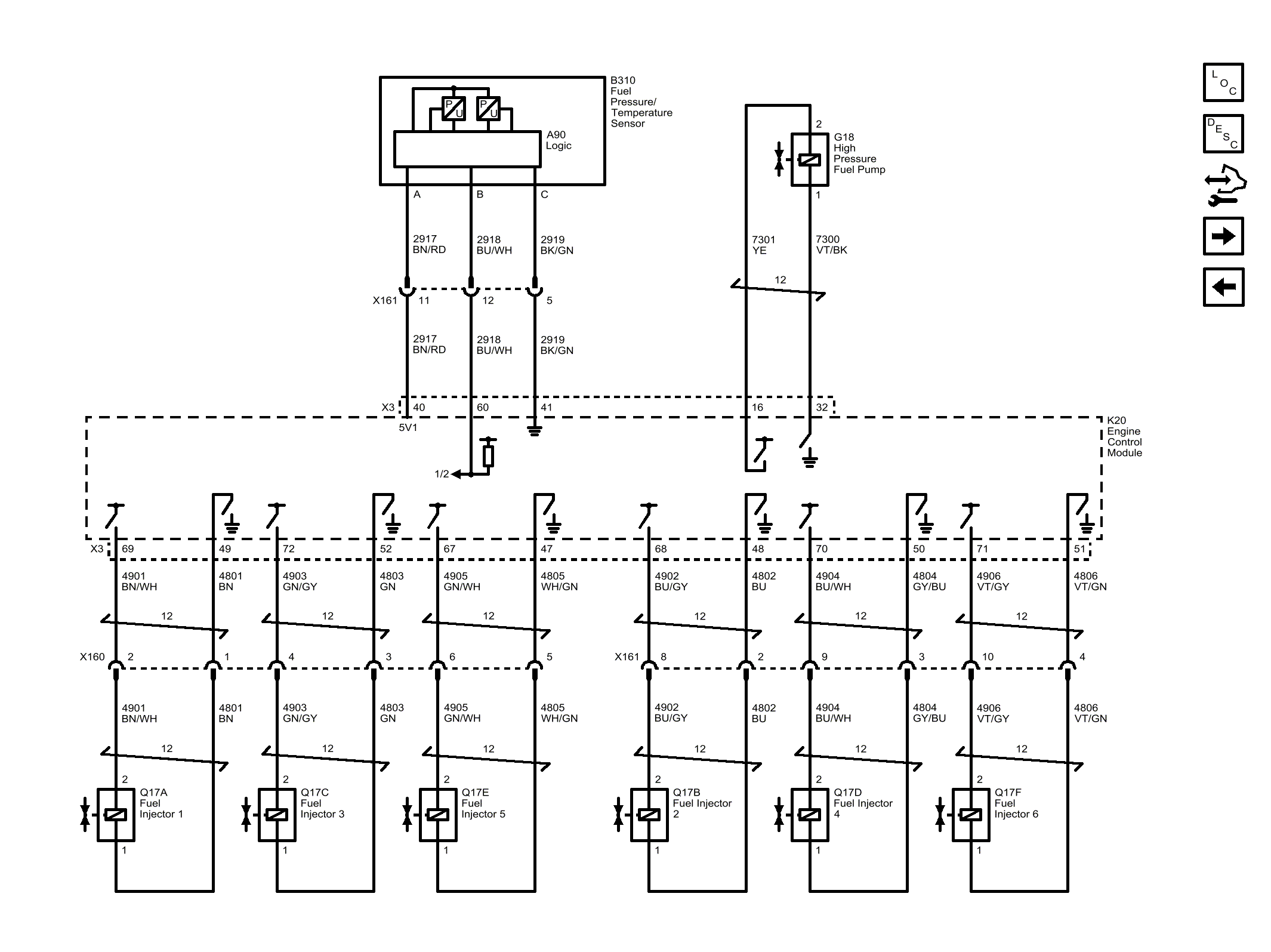

Fig 1: Fuel Controls - Fuel Injectors and High Pressure Control
GM4491818Courtesy of GENERAL MOTORS COMPANY
