Device Controls - Displacement on Demand

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

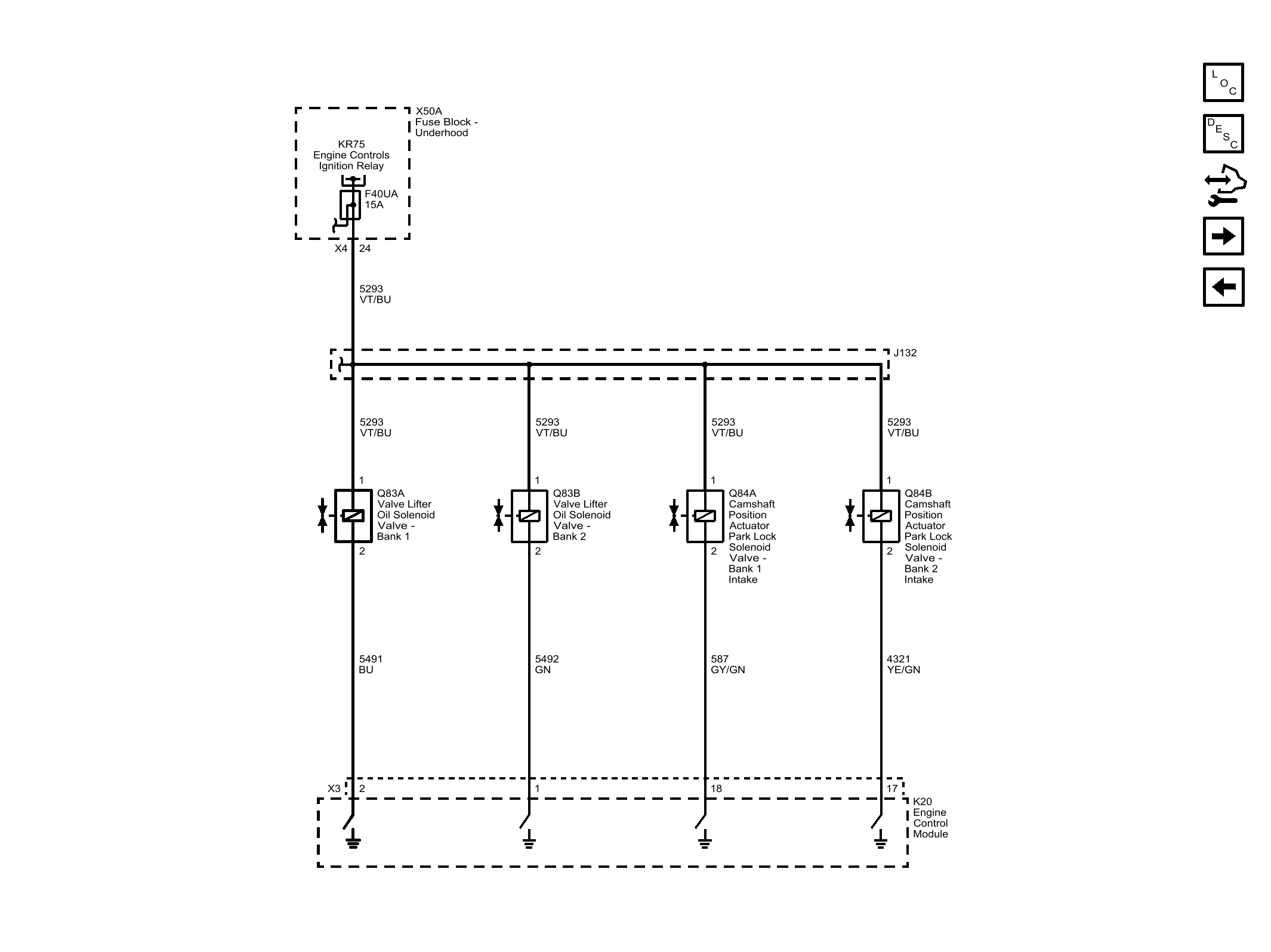

Fig 1: Device Controls - Displacement on Demand
GM4491822Courtesy of GENERAL MOTORS COMPANY
