Low Reference Bus (3 of 3)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

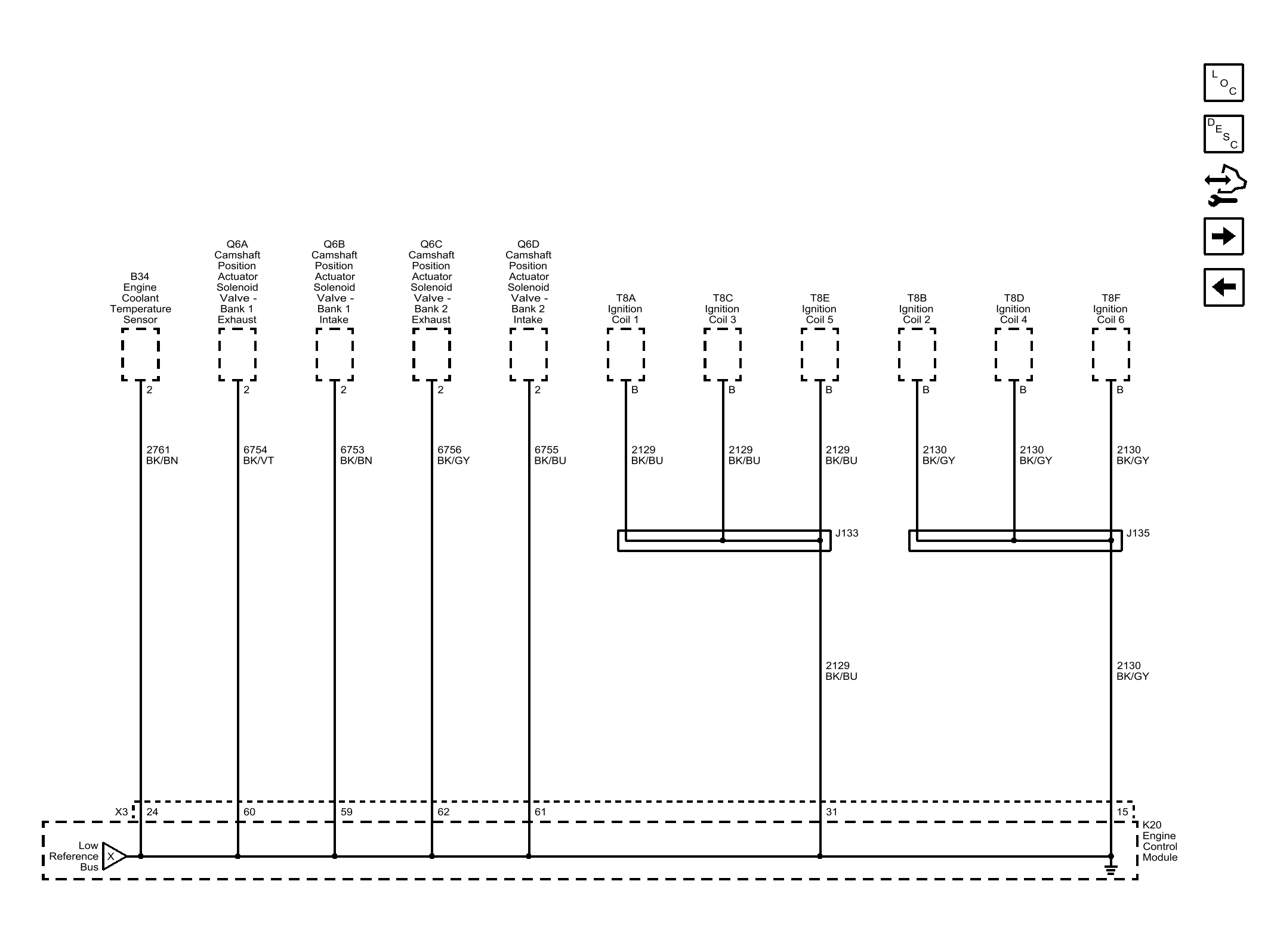

Fig 1: Low Reference Bus (3 of 3)
GM4491470Courtesy of GENERAL MOTORS COMPANY
