Engine Data Sensors - Throttle Controls and Override (M5U)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

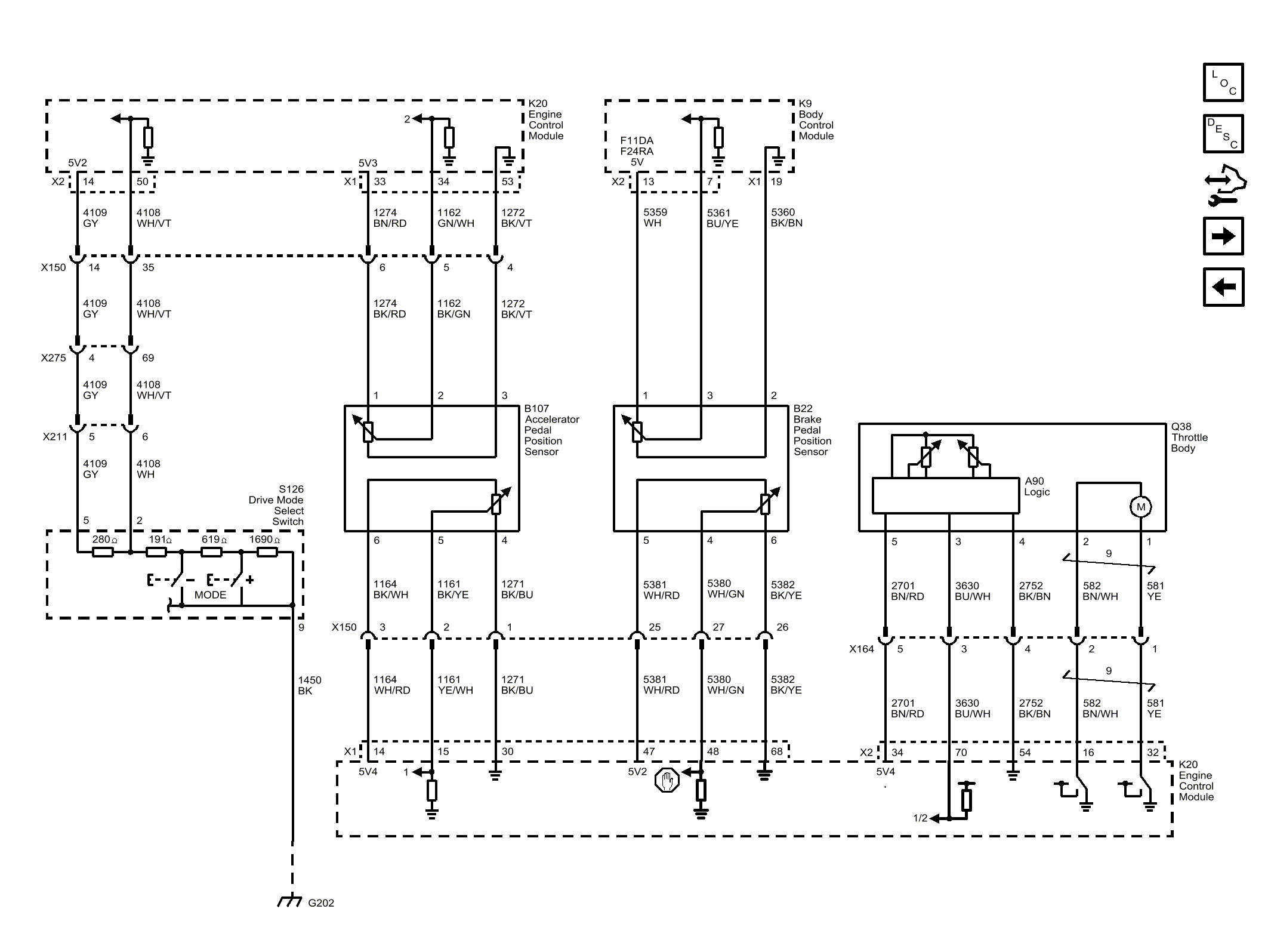

Fig 1: Engine Data Sensors - Throttle Controls and Override (M5U)
GM4491474Courtesy of GENERAL MOTORS COMPANY
