5V1 and Low Reference Bus (1 of 3)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

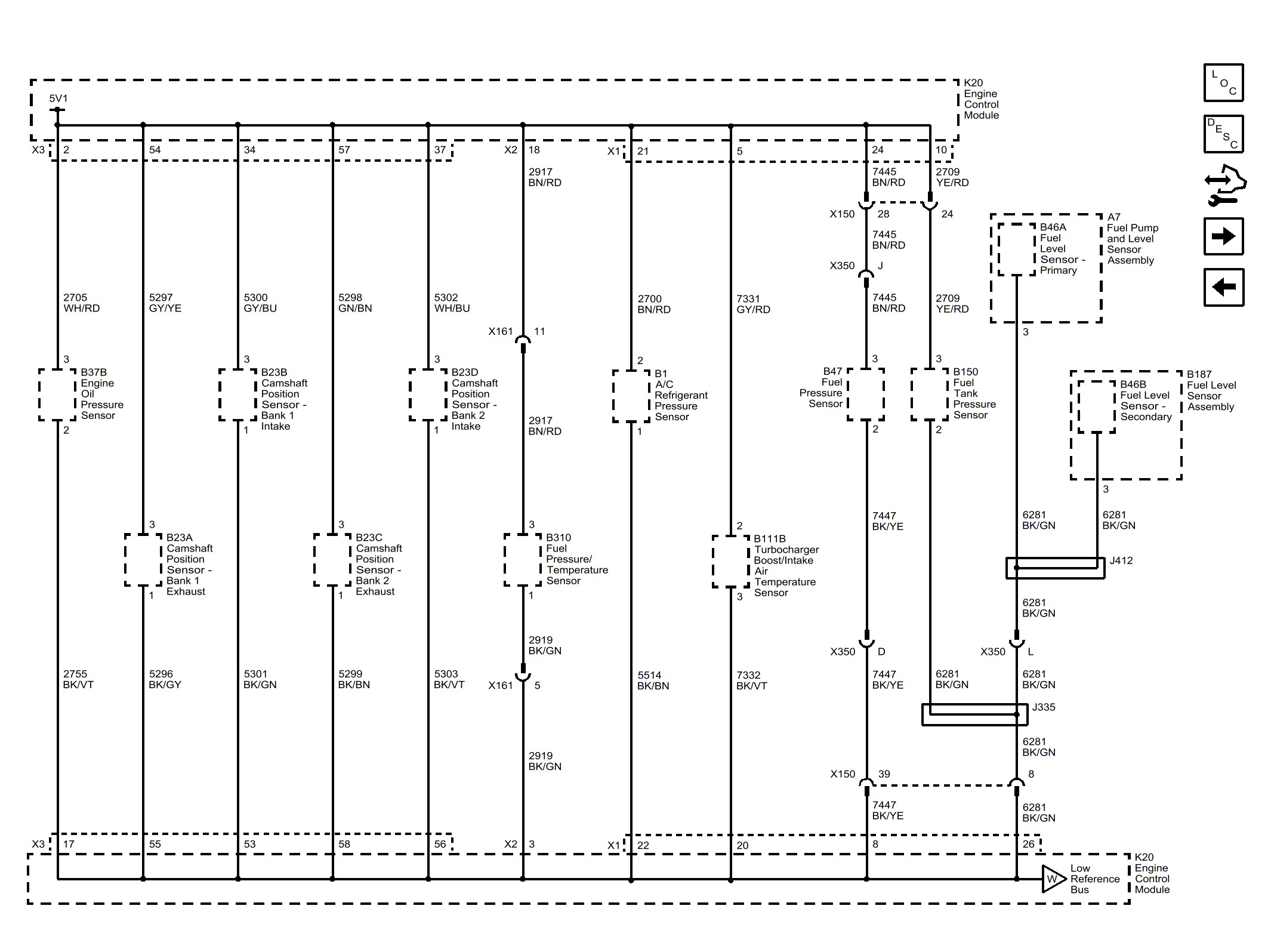

Fig 1: 5V1 and Low Reference Bus (1 of 3)
GM4491461Courtesy of GENERAL MOTORS COMPANY
