Section 29 (Power Door Lock System And Release Systems)
>>
Schematic Wiring Diagrams
>>
Door Lock/Indicator Wiring Schematics (Coupe)
>>
Lock Switches and Child Lock Status (Coupe)
Lock Switches and Child Lock Status (Coupe)
WARNING:
This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

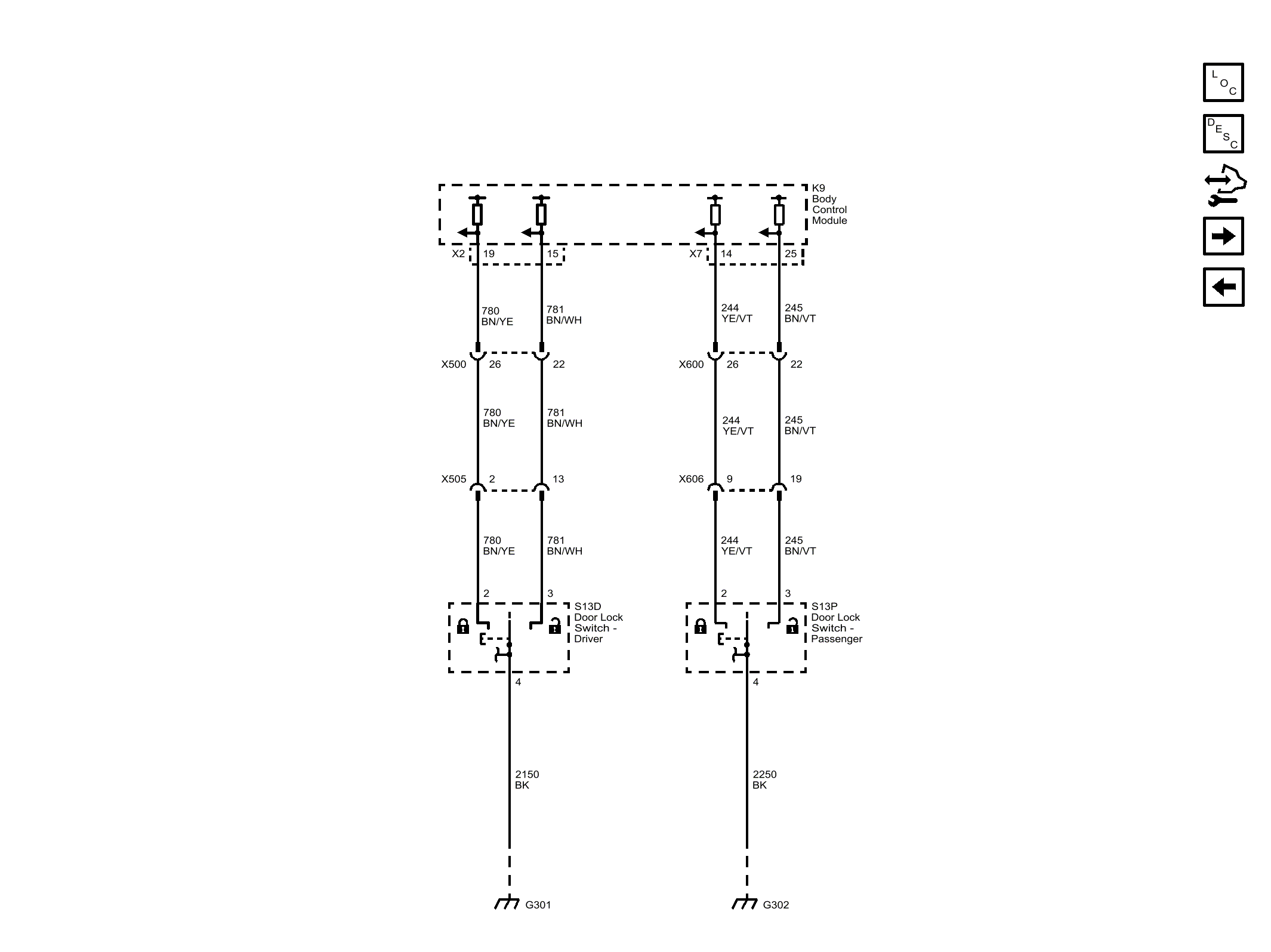

Fig 1: Lock Switches and Child Lock Status (Coupe)
Courtesy of GENERAL MOTORS COMPANY
