Tail Lamp Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

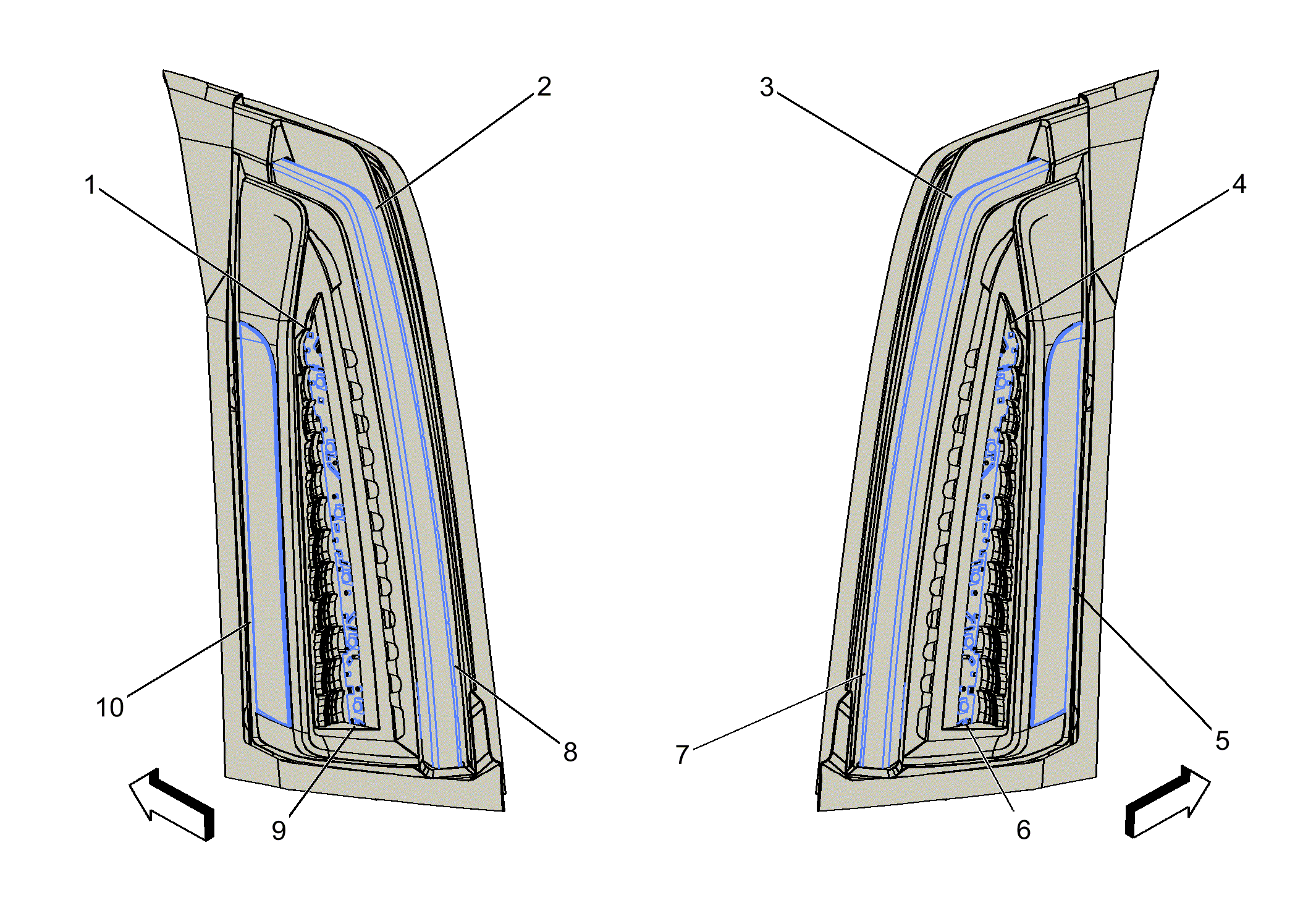

Tail Lamp Components
| Items |
|---|
| 1: E4LR Turn Signal Lamp - Left Rear (TVN) |
| 2: E5S Tail/Stop and Turn Signal Lamp - Left (-TVN) |
| 3: E5T Tail/Stop and Turn Signal Lamp - Right (-TVN) |
| 4: E4RR Turn Signal Lamp - Right Rear (TVN) |
| 5: E2RR Side Marker Lamp - Right Rear (-TVN) |
| 6: E5F Tail Lamp - Right (-TVN) |
| 7: E5AB Tail/Stop Lamp - Right (TVN) |
| 8: E5AA Tail/Stop Lamp - Left (TVN) |
| 9: E5E Tail Lamp - Left (-TVN) |
| 10: E2LR Side Marker Lamp - Left Rear (-TVN) |
