Rear of Vehicle Components (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: E18 Rear Defogger Grid E18 Rear Defogger Grid X1 E18 Rear Defogger Grid X2
2: T2RR Antenna - Roof Rear (IO6/UE1) T2RR Antenna - Roof Rear X2 (UE1+CV3)T2RR Antenna - Roof Rear X3 (UE1+CV3)/(IO6-UE1)T2RR Antenna - Roof Rear X4 (U2K/U2M)T2RR Antenna - Roof Rear X5 (IO6+UE1-CV3)T2RR Antenna - Roof Rear X5 (UE1- CZ2)
3: T2SR Antenna - Rear Window T2SR Antenna - Rear Window X1 T2SR Antenna - Rear Window X2 (-Coupe+(IO6+MAW)/U2Q)
4: E42R Tail Lamp Assembly - Right E42R Tail Lamp Assembly - Right (-TVN)E42R Tail Lamp Assembly - Right (TVN)
5: M97 Fuel Fill Door Lock Actuator (N08) M97 Fuel Fill Door Lock Actuator
6: B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7) B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7)
7: B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7) B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7)
8: E5B Backup Lamp - Right E5B Backup Lamp - Right
9: E29R Fog Lamp - Rear (T79) E29R Fog Lamp - Rear (T79)
10: E5A Backup Lamp - Left E5A Backup Lamp - Left
11: B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7) B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7)
12: B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7) B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7)
13: E42L Tail Lamp Assembly - Left E42L Tail Lamp Assembly - Left (-TVN)E42L Tail Lamp Assembly - Left (TVN)

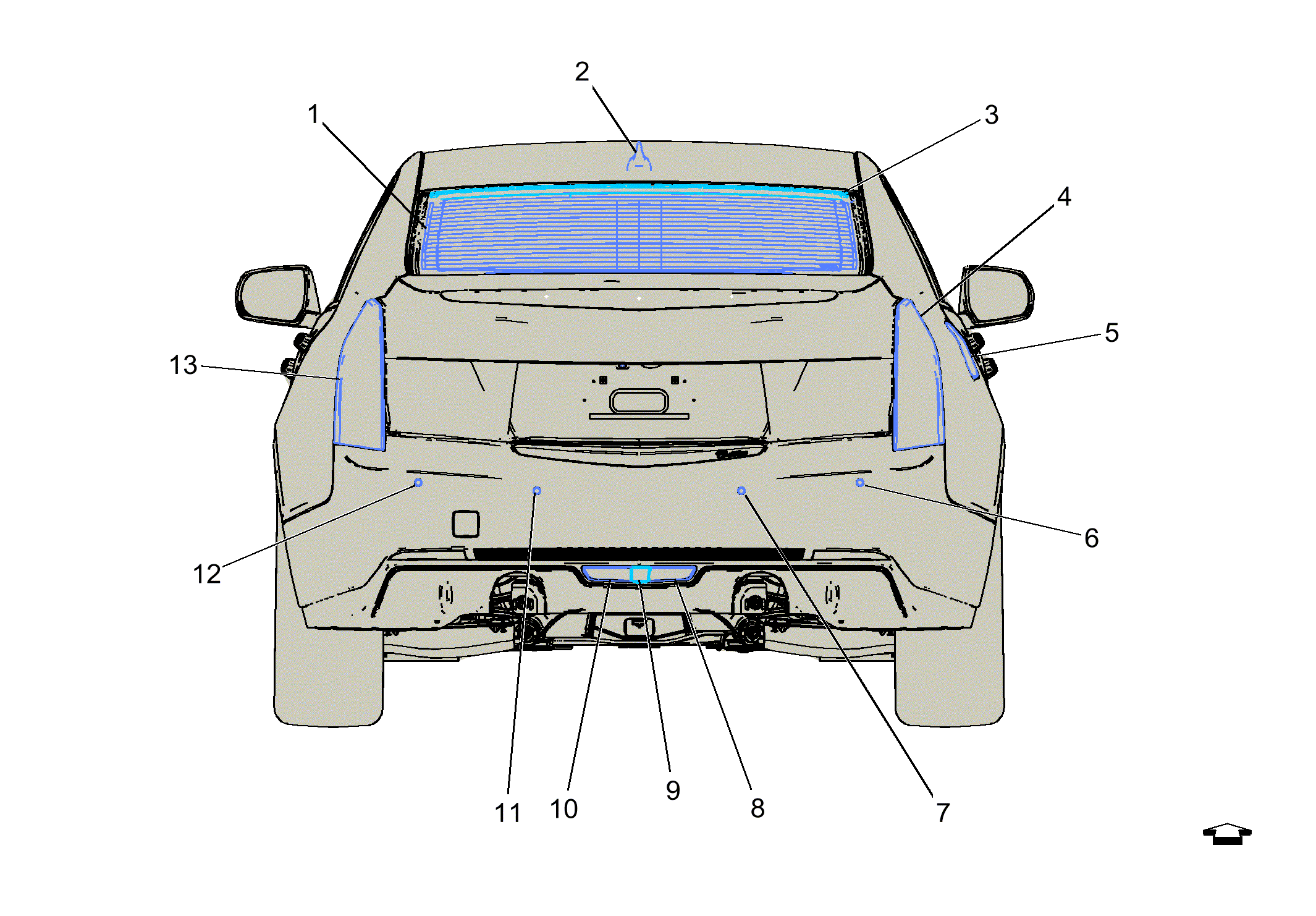

Fig 1: Rear of Vehicle Components (Sedan)

Courtesy of GENERAL MOTORS COMPANY
