Rear Compartment Lid Components (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

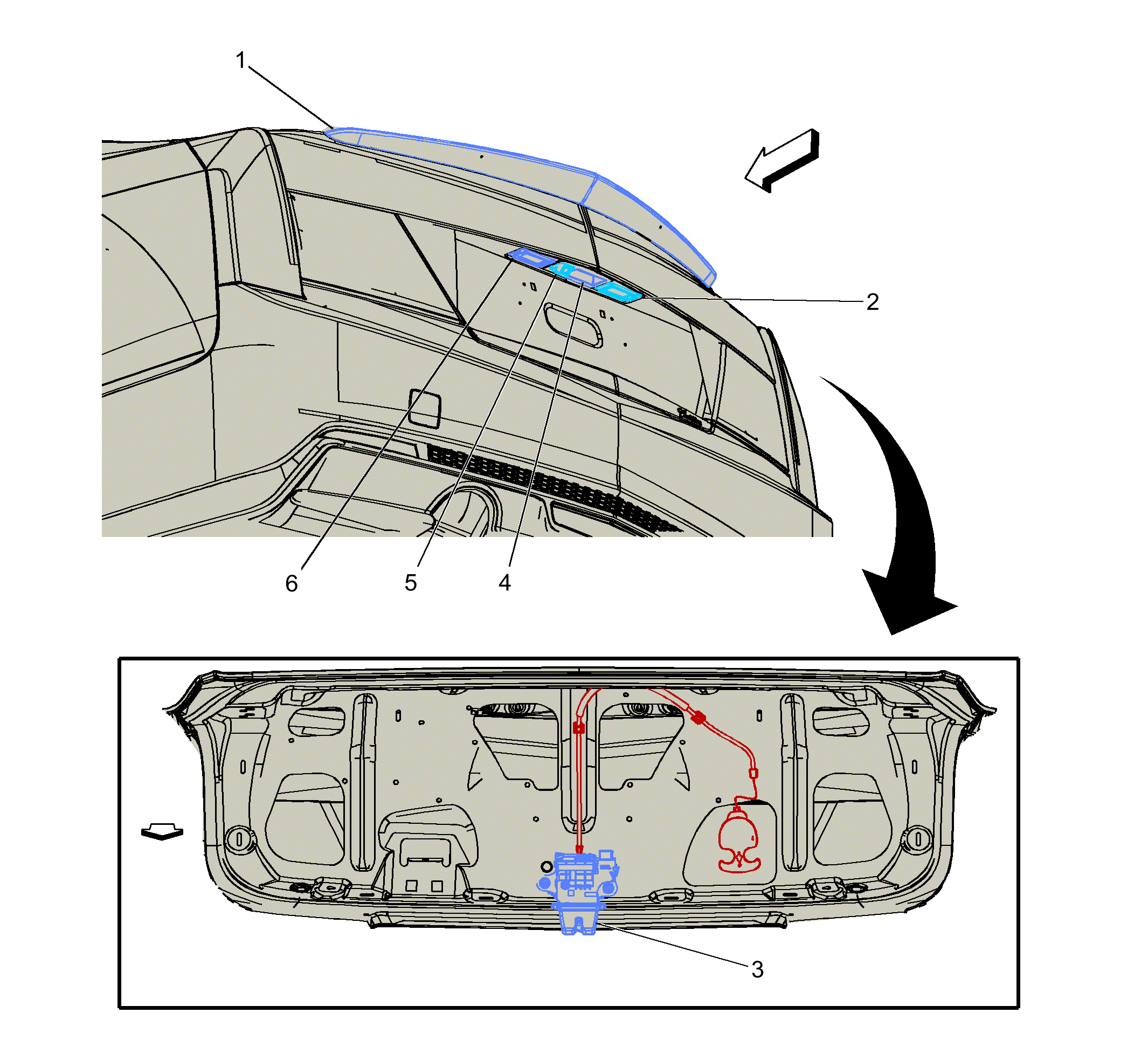

Rear Compartment Lid Components (Sedan)
| Items |
|---|
| 1: E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp (Sedan) |
| 2: E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 3: M40 Rear Compartment Lid Latch M40 Rear Compartment Lid Latch |
| 4: S58A Rear Compartment Lid Unlatch Switch - Exterior S58A Rear Compartment Lid Unlatch Switch - Exterior |
| 5: B87 Rearview Camera (UVC) B87 Rearview Camera |
| 6: E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
