Luggage Compartment Components Right
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

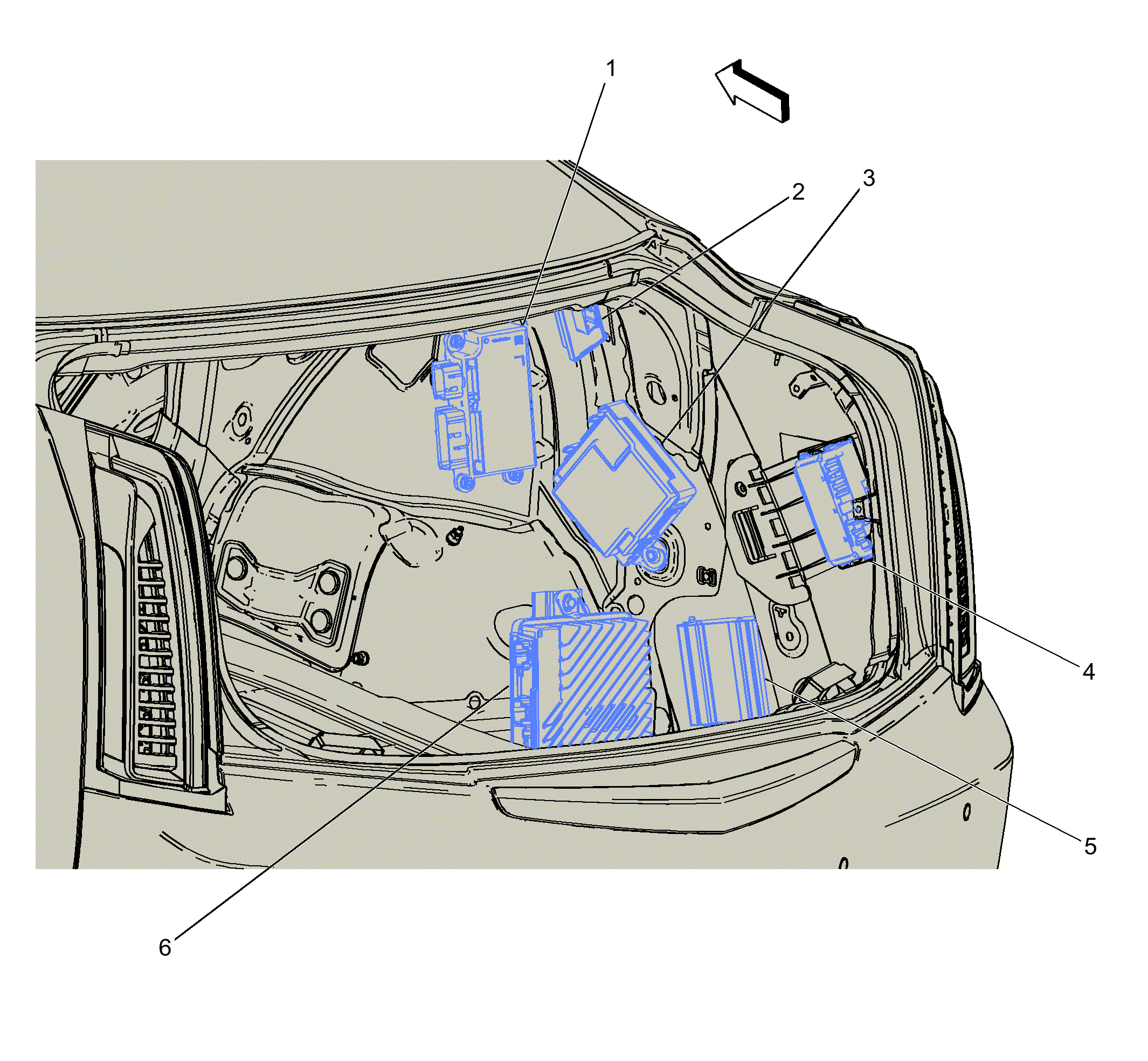

Luggage Compartment Components Right
| Items |
|---|
| 1: K42 Pedestrian Impact Detection Control Module (B3T) K42 Pedestrian Impact Detection Control Module X1 (B3T+1SV)K42 Pedestrian Impact Detection Control Module X1 (B3T-1SV)K42 Pedestrian Impact Detection Control Module X2 (B3T) |
| 2: K26 Headlamp Control Module (T4F) K26 Headlamp Control Module |
| 3: K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 (UE1)K84 Keyless Entry Control Module X2 (UE1) |
| 4: K69 Transfer Case Control Module (F46) K69 Transfer Case Control Module X1 (F46)K69 Transfer Case Control Module X2 (F46) |
| 5: T1 Accessory DC/AC Power Inverter Module (KI6/KI7) T1 Accessory DC/AC Power Inverter Module |
| 6: T3 Audio Amplifier T3 Audio Amplifier X1 (UQA)T3 Audio Amplifier X1 (UQS)T3 Audio Amplifier X2T3 Audio Amplifier X3T3 Audio Amplifier X4 |
