Behind Rear Fascia Components

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Behind Rear Fascia Components

Items
1: B218R Side Object Sensor Module - Right (UFG/UKC) B218R Side Object Sensor Module - Right
2: B218L Side Object Sensor Module - Left (UFG/UKC) B218L Side Object Sensor Module - Left
3: B233R Radar Sensor Module - Short Range Rear (UVZ) B233R Radar Sensor Module - Short Range Rear

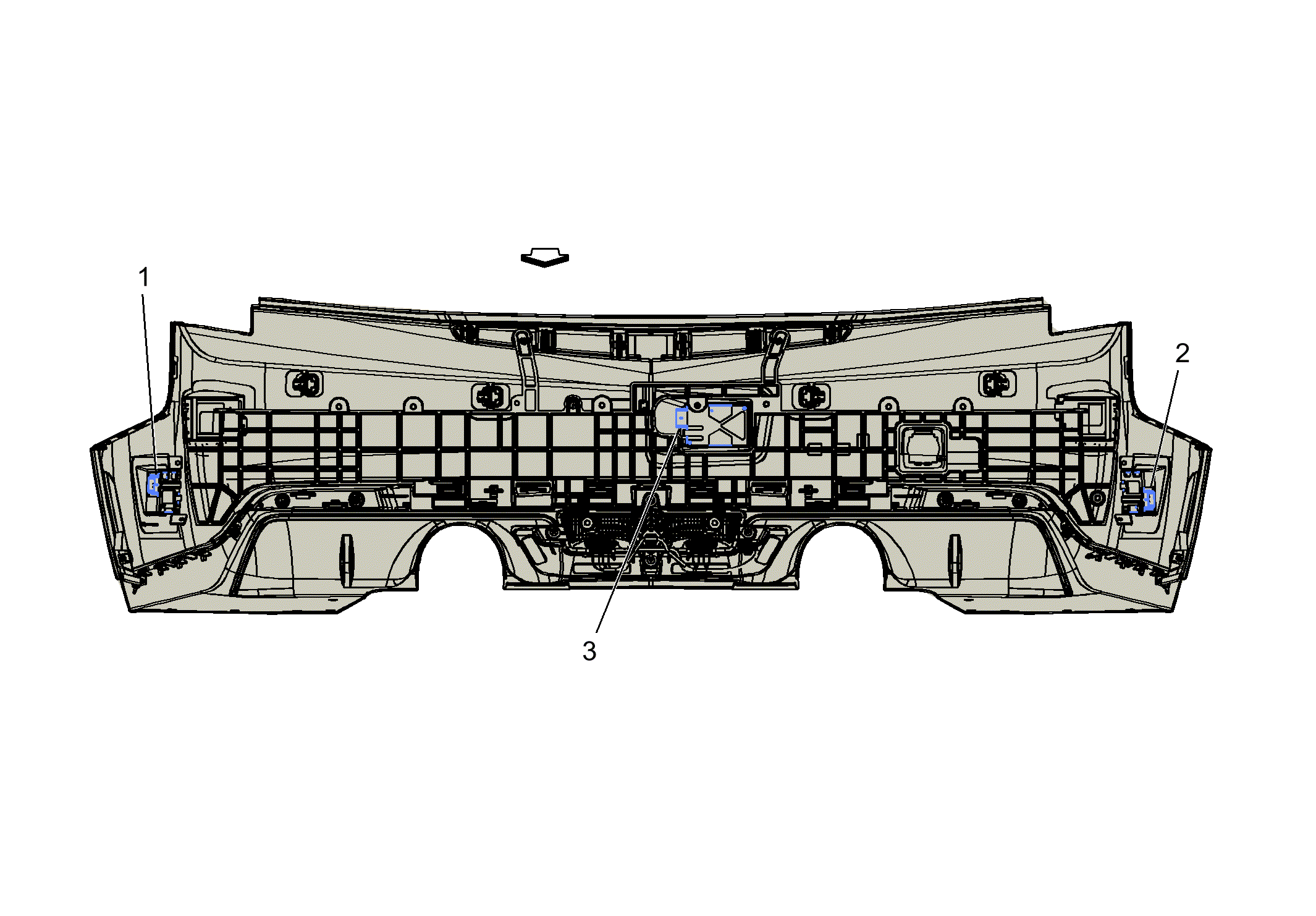

Fig 1: Behind Rear Fascia Components
GM4056026Courtesy of GENERAL MOTORS COMPANY
