Section 282 (Power Door Lock System And Release Systems - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Door Lock/Indicator Wiring Schematics (Sedan)
>>
Ajar Switches and Lock Indicators (Sedan)
Ajar Switches and Lock Indicators (Sedan)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

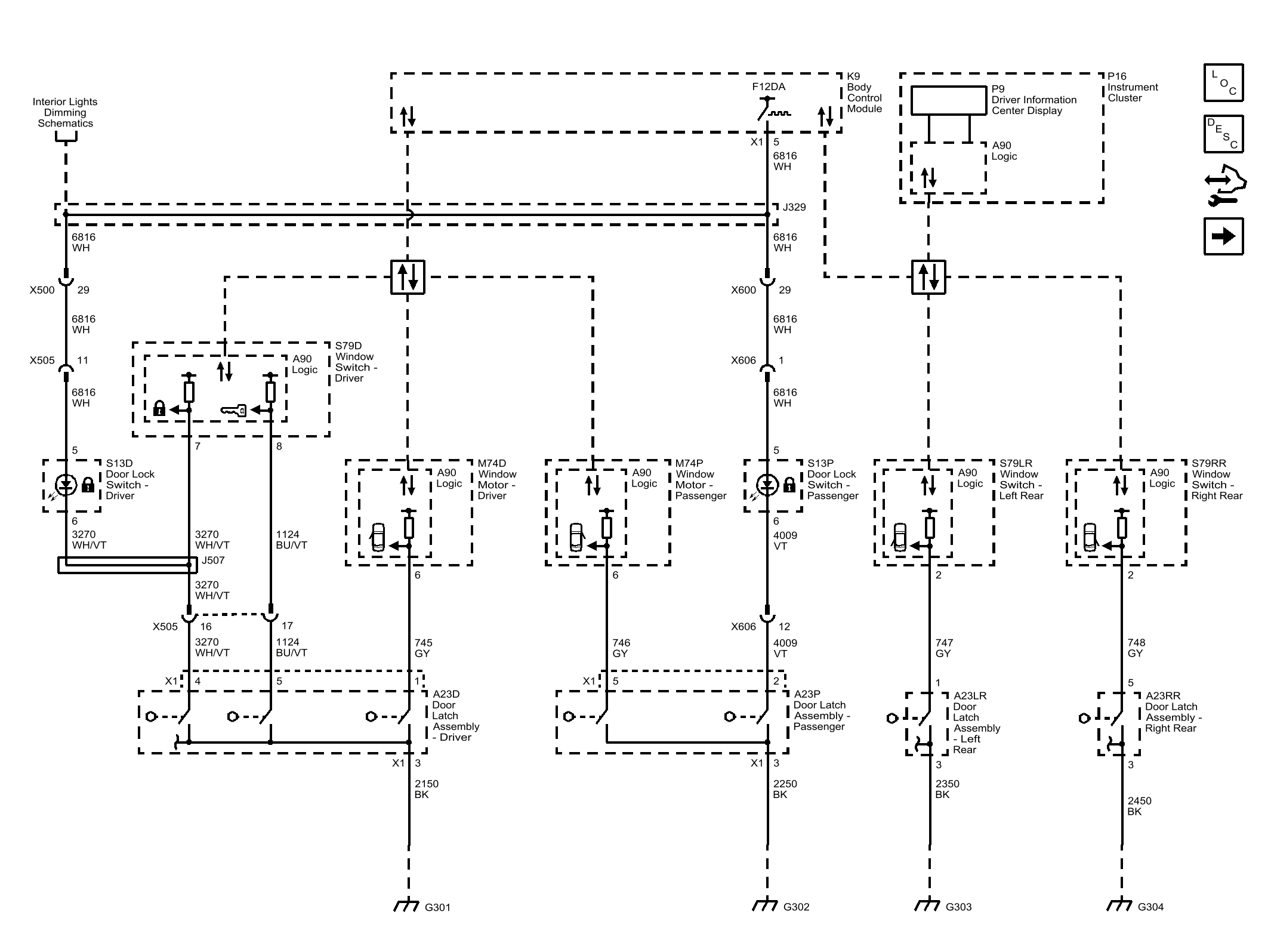

Fig 1: Ajar Switches and Lock Indicators (Sedan)
Courtesy of GENERAL MOTORS COMPANY
