Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To aid in installation of the hydraulic clutch pipe hose, wrap mechanics wire around the transmission end of the hose to route the hose around to top of the transmission.

Position the hydraulic clutch hose/pipe in the vehicle.

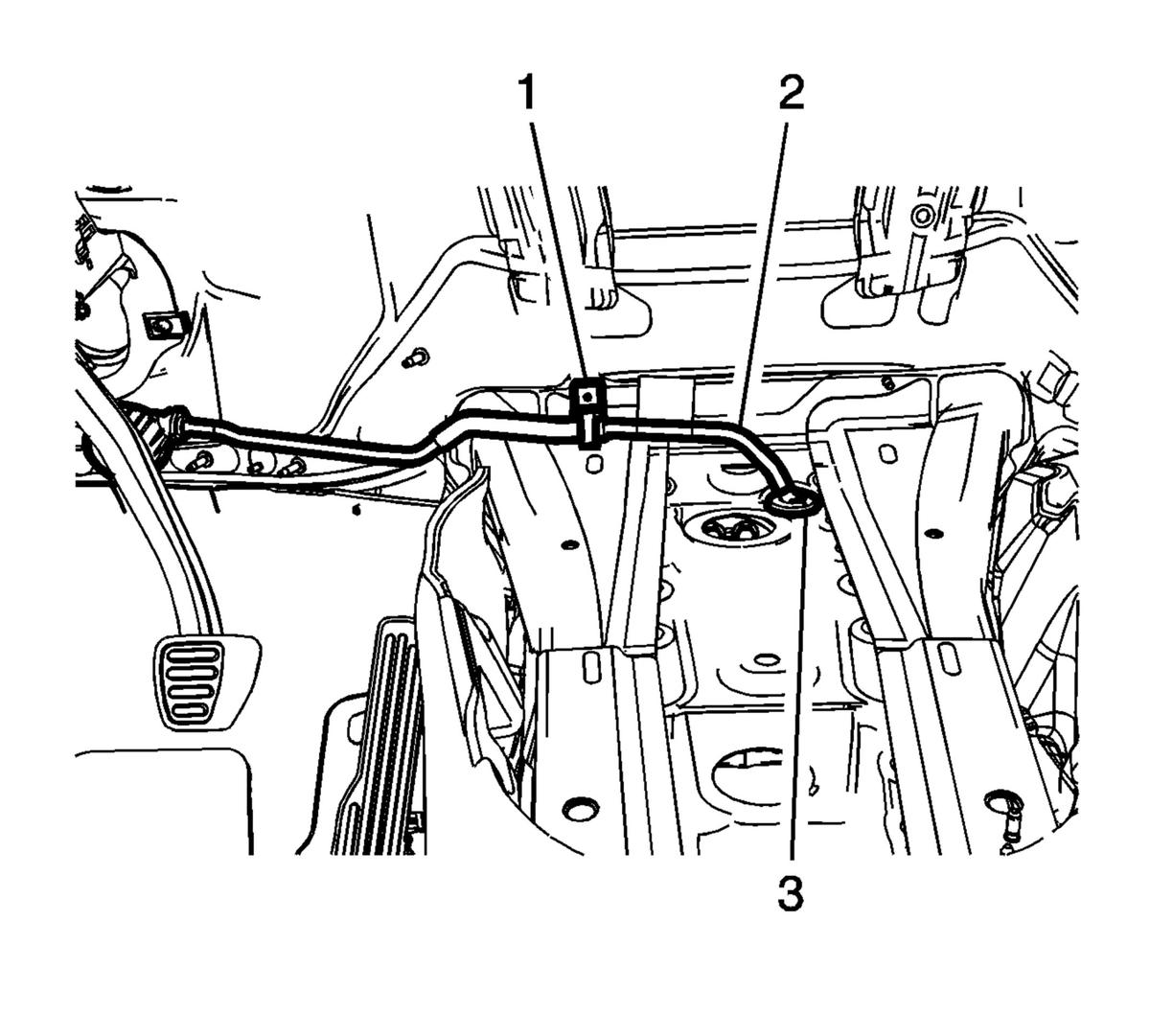

Fig 1: Hydraulic Clutch Hose/Pipe Retainer

Courtesy of GENERAL MOTORS COMPANY

Seat the grommet (3) into the floor panel.
Connect the hydraulic clutch hose/pipe (2) retaining clip to the cowl.

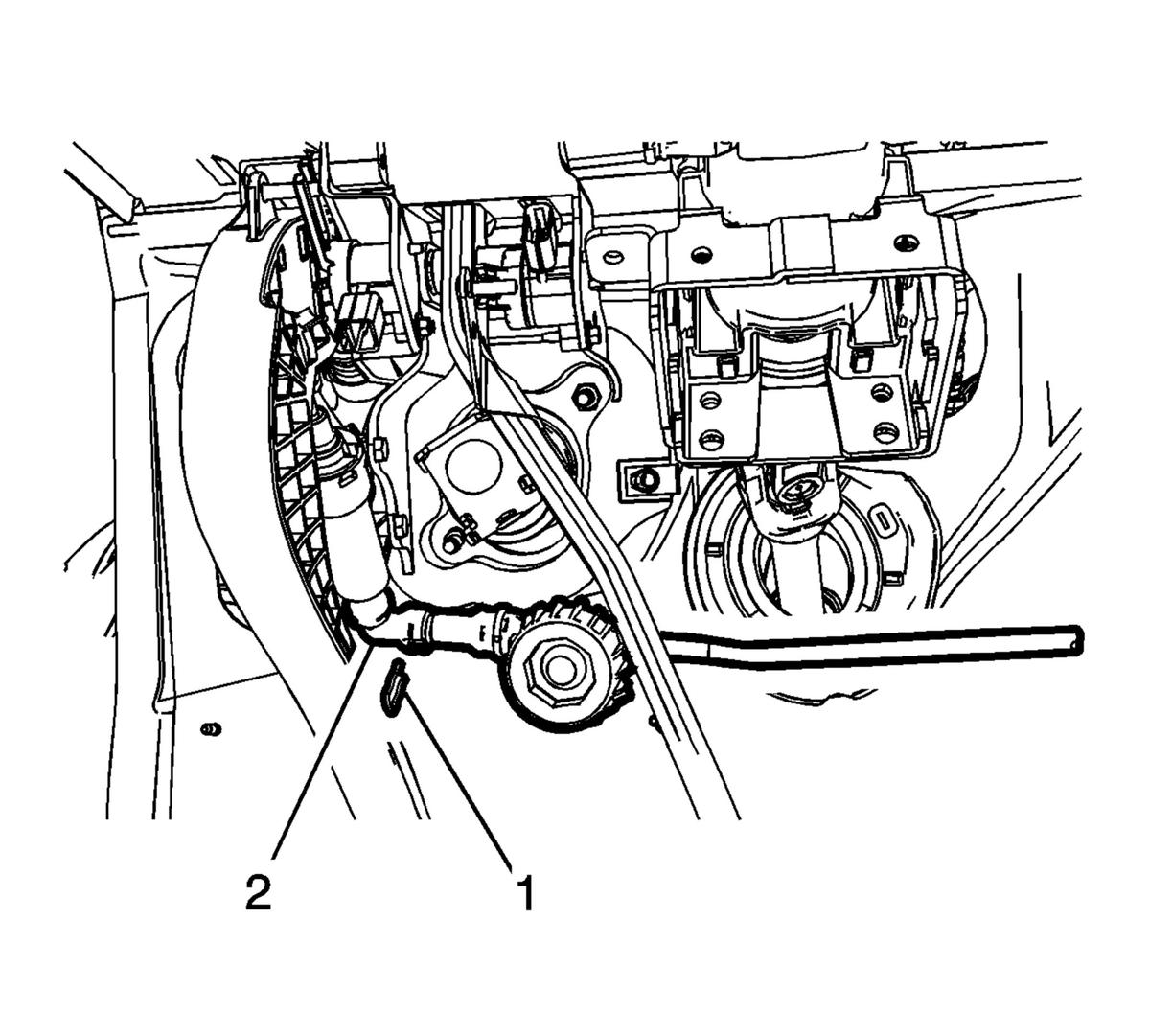

Fig 2: Clutch Pipe & Retaining Clip

Courtesy of GENERAL MOTORS COMPANY

Connect the hydraulic clutch hose/pipe (2) to the clutch master cylinder.
Install the hydraulic clutch hose/pipe retaining clip (1) to the clutch master cylinder.
Raise the vehicle.

Fig 3: Hydraulic Clutch Hose/Pipe Retaining Clip To Clutch Slave Cylinder

Courtesy of GENERAL MOTORS COMPANY

Connect the lower slave cylinder hose (2) to the slave cylinder.
Install the hydraulic clutch hose/pipe retaining clip (1) to the clutch slave cylinder.
Bleed the clutch hydraulic system. Refer to Hydraulic Clutch System Bleeding .
Lower the vehicle.
Install the heater and air conditioning evaporator and blower module in the vehicle. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation .
