Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
Disconnect the clutch pedal position sensor electrical connector.

NOTE:

Place shop towels over the carpeting to prevent possible damage.

Fig 1: Clutch Master Cylinder Fasteners

Courtesy of GENERAL MOTORS COMPANY

Remove the clutch master cylinder fasteners (1).

Fig 2: Clutch Master Cylinder & Pedal Retainer

Courtesy of GENERAL MOTORS COMPANY

Disconnect the clutch master cylinder to clutch pedal retainer (1) from the clutch pedal.

NOTE:

It is Not necessary to disconnect the reservoir hose or clutch pipe from the master cylinder.

Reposition the clutch master cylinder (2) away from the clutch pedal assembly.

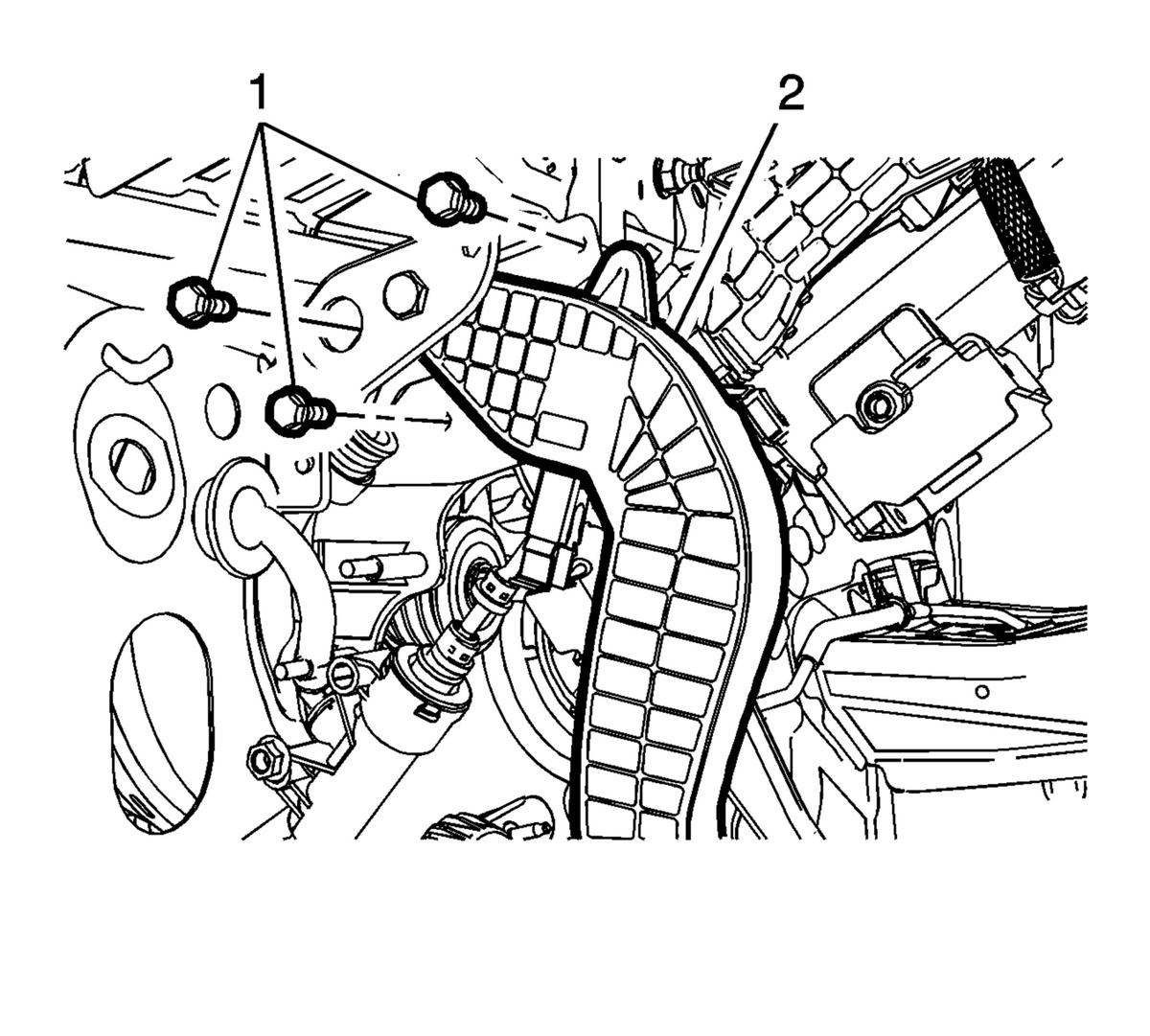

Fig 3: Clutch Pedal Assembly & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Remove the clutch pedal assembly fasteners (1) from the brake pedal assembly.
Remove the clutch pedal assembly (2) from the vehicle.
If replacing the clutch pedal, transfer components as necessary.
