Mobile Telephone and Navigation Power Supply Transformer Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

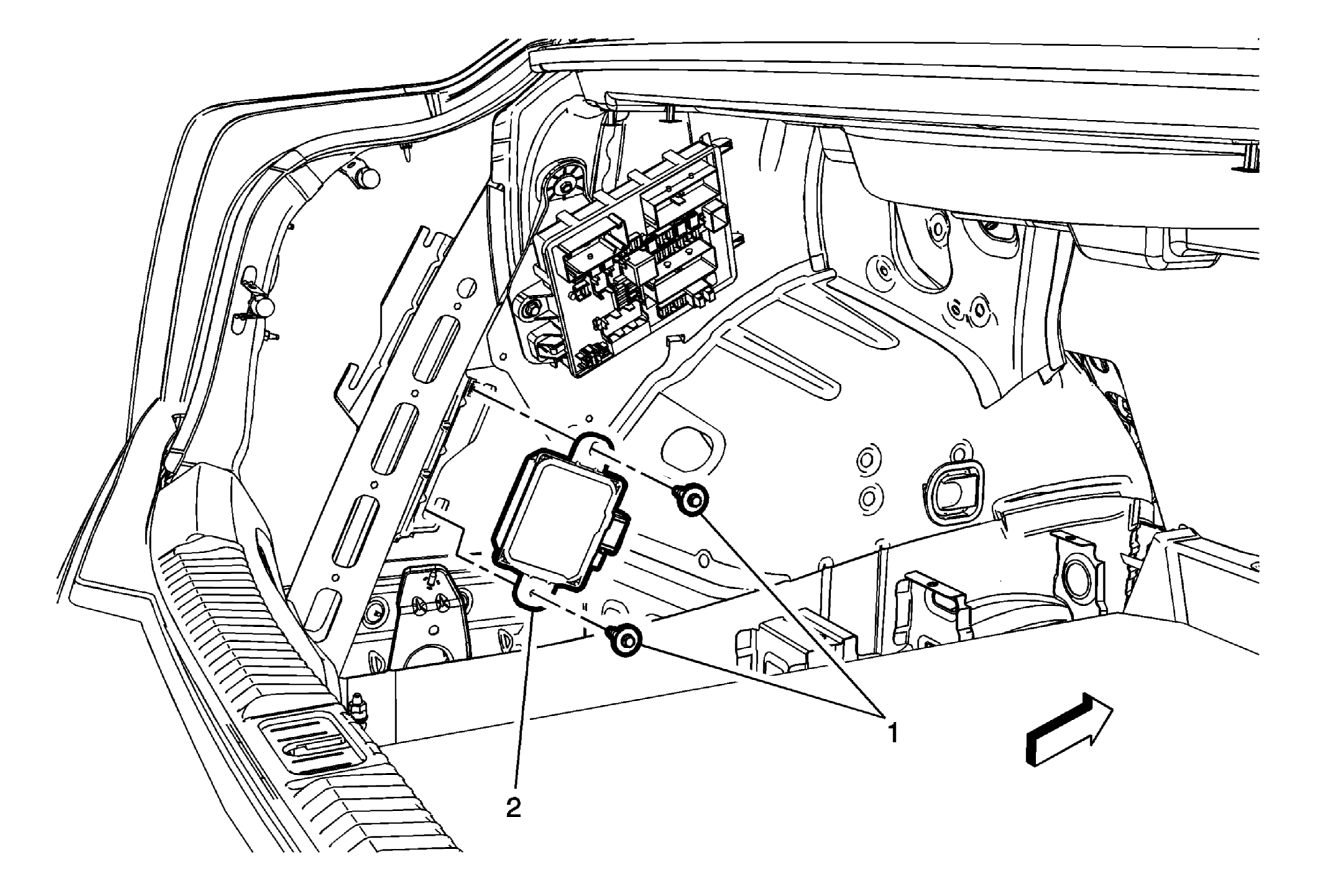

Fig 1: Mobile Telephone & Navigation Power Supply Transformer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) .
1	Mobile Telephone and Navigation Power Supply Transformer Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Mobile Telephone and Navigation Power Supply Transformer Procedure Disconnect the electrical connectors. Remove transformer from the quarter panel inner brace.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) .

Mobile Telephone and Navigation Power Supply Transformer Fasteners (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Mobile Telephone and Navigation Power Supply Transformer

Procedure

Disconnect the electrical connectors.
Remove transformer from the quarter panel inner brace.
