Seat Position (W2E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

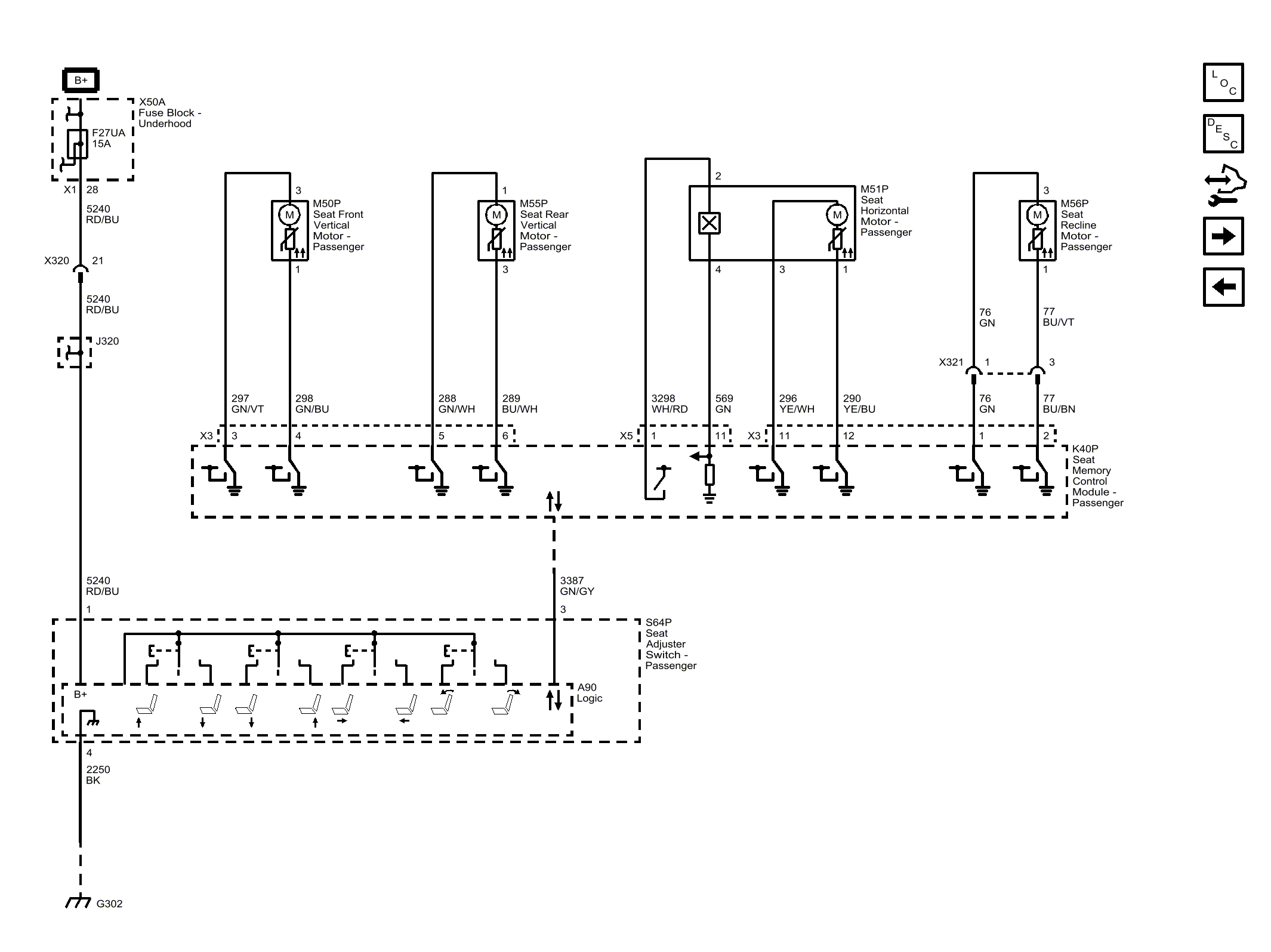

Fig 1: Seat Position (W2E)
GM4492554Courtesy of GENERAL MOTORS COMPANY
