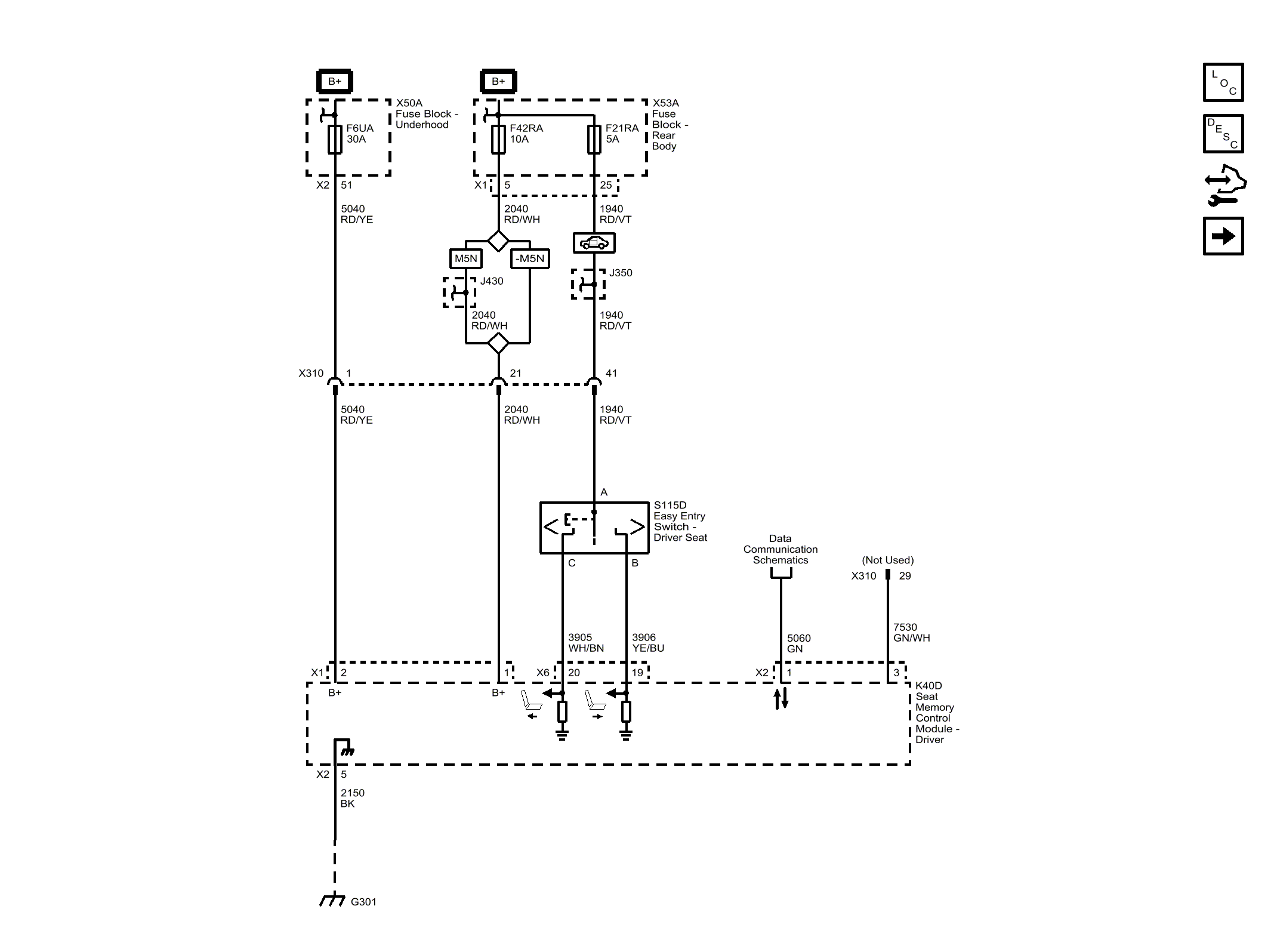

Power, Ground, Serial Data and Easy Entry (Coupe+AQ9-A45)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
