Lumbar and Bolster (AQ9+A45)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

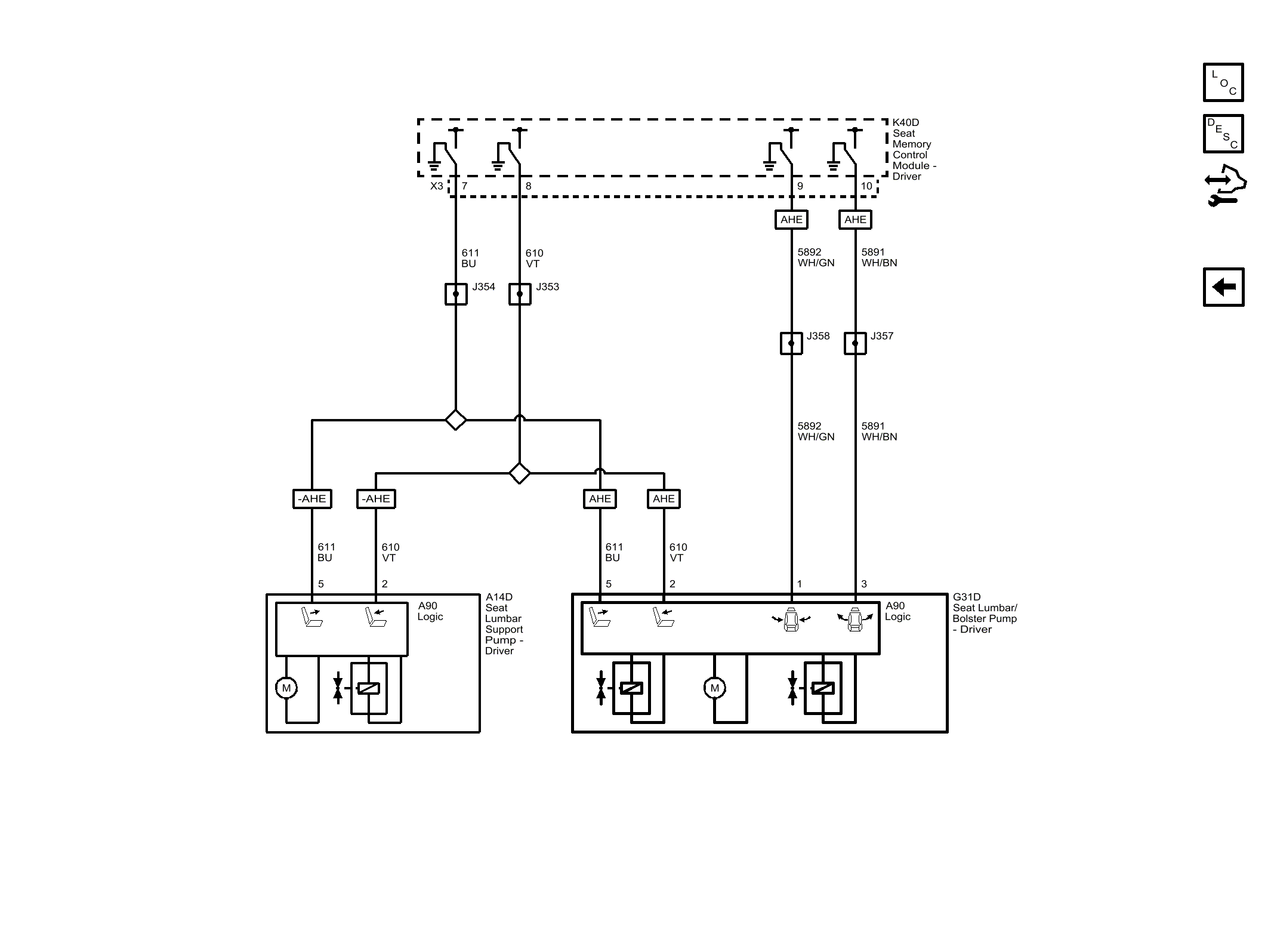

Fig 1: Lumbar and Bolster (AQ9+A45)
GM4492529Courtesy of GENERAL MOTORS COMPANY
