Front Seat Tilt Adjuster Actuator Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

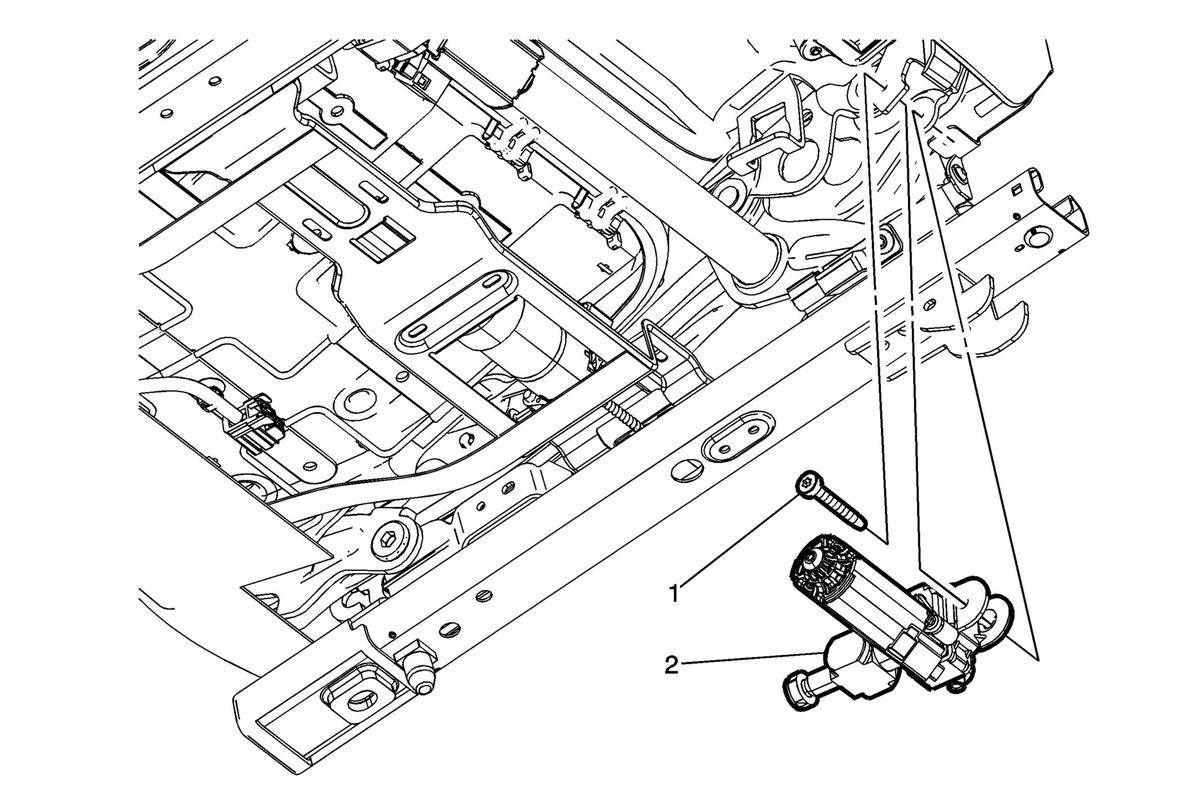

Fig 1: Front Seat Tilt Adjuster Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the driver or passenger seat adjuster memory module. Refer to Driver or Passenger Seat Adjuster Memory Module Replacement (Sedan) Driver or Passenger Seat Adjuster Memory Module Replacement (Coupe) .
1	Front Seat Tilt Adjuster Actuator Securing Fastener CAUTION: Refer to Fastener Caution . Procedure Set the seat to it's highest position. Remove the securing clip from the actuator and cushion frame.
2	Front Seat Tilt Adjuster Actuator Procedure Disconnect the electrical connector. Remove the two driver seat adjuster brackets. Remove the adjuster vertical actuator by pulling downward from the cushion frame.

Callout

Component Name

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the driver or passenger seat adjuster memory module. Refer to Driver or Passenger Seat Adjuster Memory Module Replacement (Sedan) Driver or Passenger Seat Adjuster Memory Module Replacement (Coupe) .

Front Seat Tilt Adjuster Actuator Securing Fastener

CAUTION:

Refer to Fastener Caution .

Procedure

Set the seat to it's highest position.
Remove the securing clip from the actuator and cushion frame.

Front Seat Tilt Adjuster Actuator

Procedure

Disconnect the electrical connector.
Remove the two driver seat adjuster brackets.
Remove the adjuster vertical actuator by pulling downward from the cushion frame.
