Front Seat Recliner Actuator Shaft Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

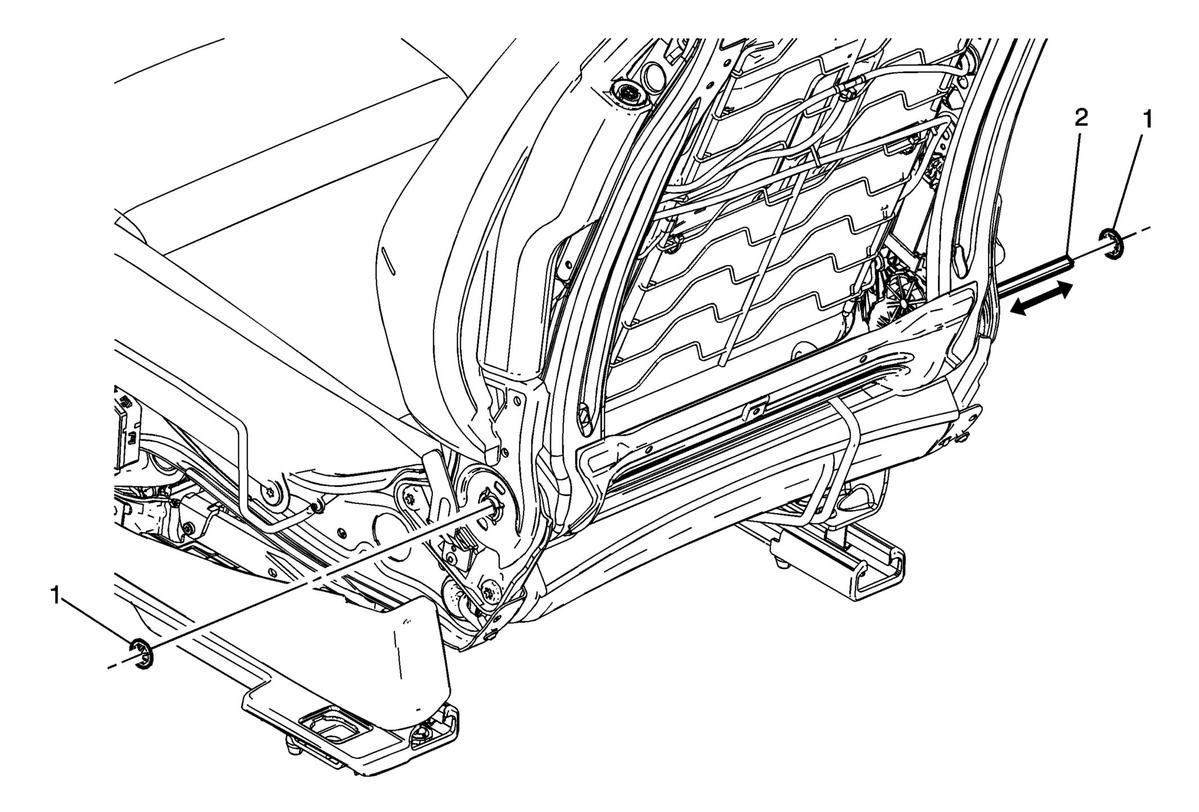

Fig 1: Front Seat Recliner Actuator Shaft
GM2837133Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Release the front seat back cushion cover at backrest.
  3. Release the front seat recliner actuator.
1 Front Seat Recliner Actuator Shaft Jam Fastener
TIP:  Use a new jam fastener.
2 Front Seat Recliner Actuator Shaft
