Front Seat Adjuster Actuator Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

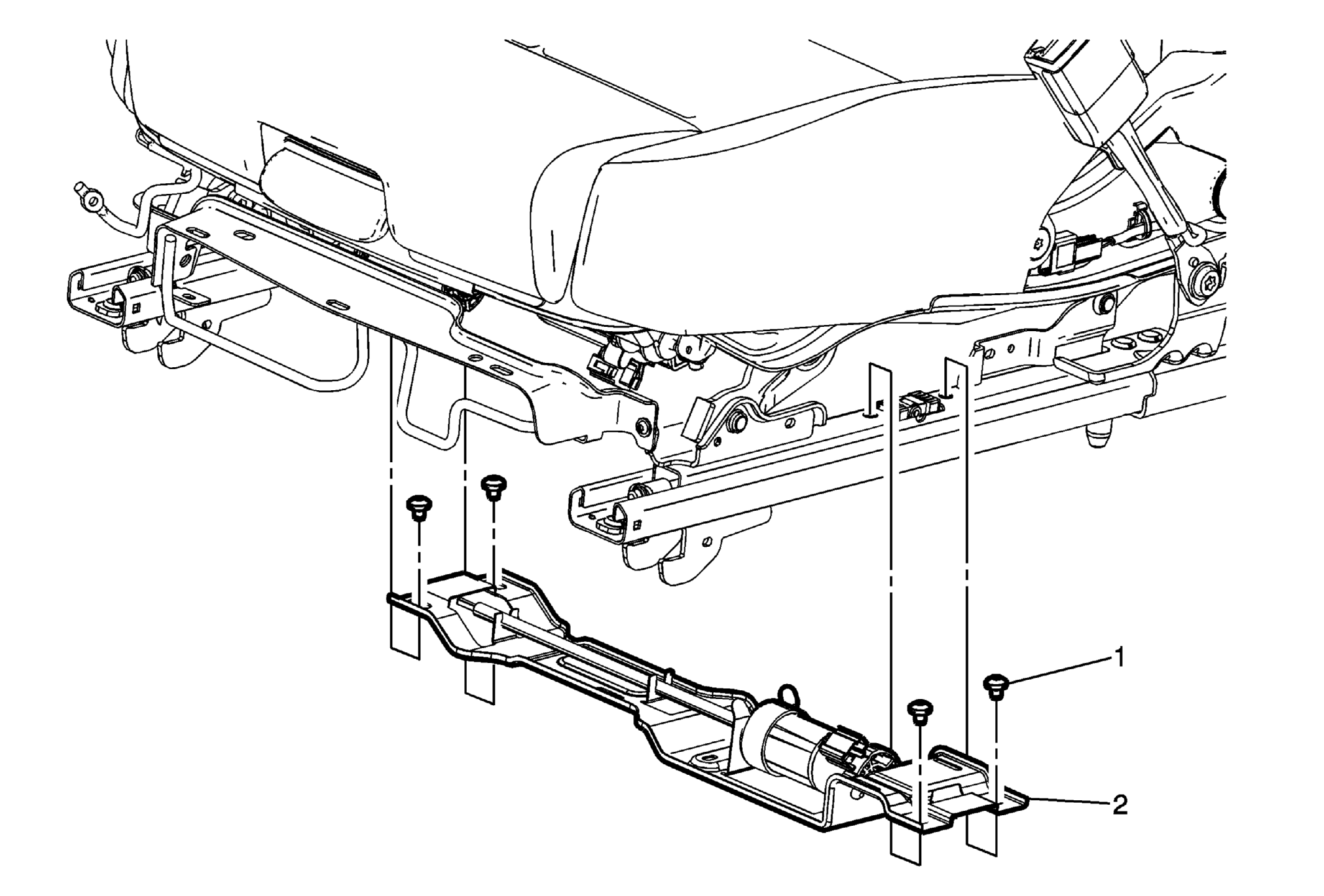

Fig 1: Front Seat Adjuster Actuator
GM2837130Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Sedan)Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Coupe)Driver or Passenger Seat Cushion Outer Finish Panel Replacement (with W2E)
  3. Remove the driver or passenger seat adjuster memory module. Refer to Driver or Passenger Seat Adjuster Memory Module Replacement (Sedan) Driver or Passenger Seat Adjuster Memory Module Replacement (Coupe) .
1 Front Seat Adjuster Actuator Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Adjuster Actuator

Procedure

  1. Disconnect the electric connector.
  2. Remove the driver seat adjuster bracket.
  3. Remove the seat adjuster motor shaft out of both seat frame side brackets.
  4. Remove the seat adjuster and mounting bracket by pulling downward from the cushion frame.
