Driver or Passenger Seat Adjuster Switch Replacement (Without W2E)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

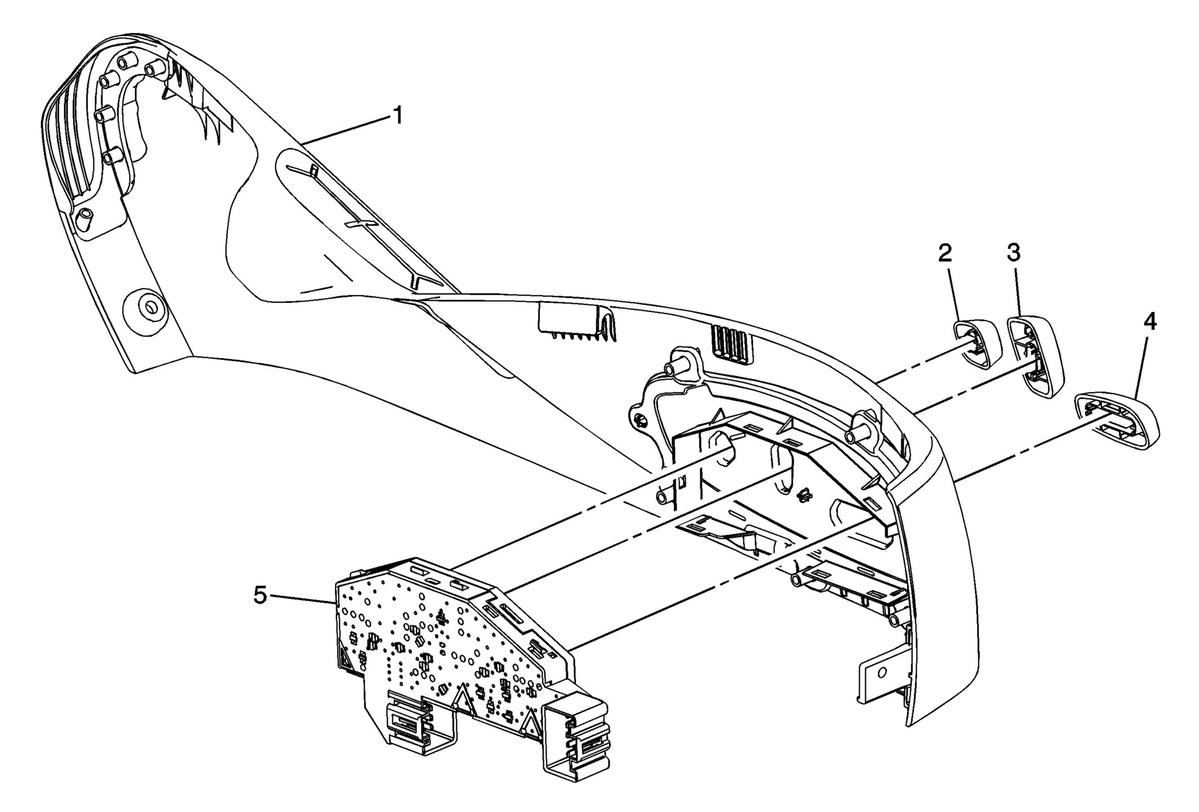

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Sedan)Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Coupe) . |
|
| 1 | Driver or Passenger Seat Cushion Outer Finish Panel |
| 2 | Driver or Passenger Seat Lumbar Support Actuator Knob |
| 3 | Front Seat Recliner Knob |
| 4 | Front Seat Adjuster Knob |
| 5 | Driver or Passenger Seat Adjuster Switch Procedure Use a flat-bladed tool to release the switch from the finish cover. |
