Driver Seat Adjuster Memory Switch Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

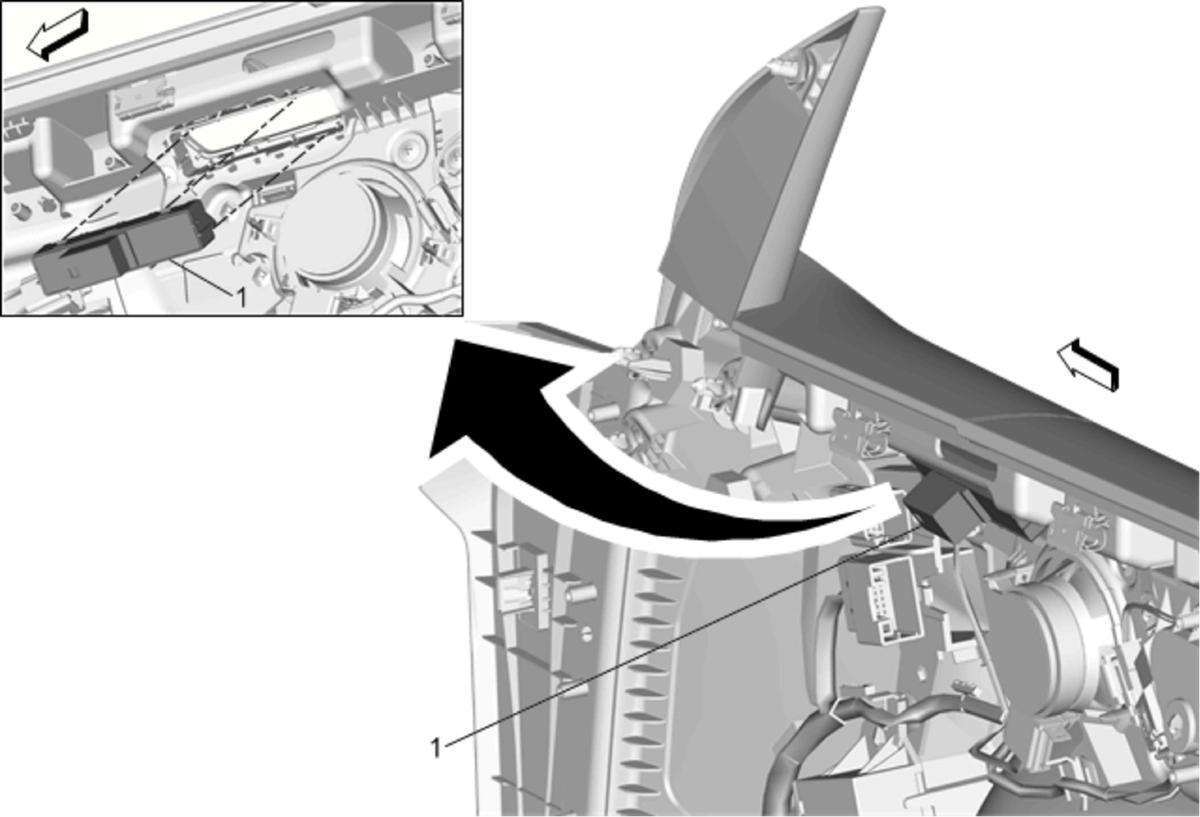

Fig 1: Driver Seat Adjuster Memory Switch (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Coupe) .
1	Driver Seat Adjuster Memory Switch Procedure Disconnect the electrical connector. Use a small flat bladed tool if necessary to help remove the switch from the door trim panel. Pull the switch outward to remove.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Coupe) .

Driver Seat Adjuster Memory Switch

Procedure

Disconnect the electrical connector.
Use a small flat bladed tool if necessary to help remove the switch from the door trim panel.
Pull the switch outward to remove.
