Memory Seats Description and Operation: Notes
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
The memory seat system consists of the following components:
- Driver seat adjuster switch
- Seat memory control module
- Driver seat memory switch
- Driver seat easy entry switch (Coupe)
- Driver seat horizontal motor
- Driver seat front vertical motor
- Driver seat rear vertical motor
- Driver seat recline motor
- Driver seat horizontal motor position sensor
- Driver seat front vertical motor position sensor
- Driver seat rear vertical motor position sensor
- Driver seat recline motor position sensor
- Passenger seat adjuster switch (Coupe)
- Passenger seat easy entry switch (Coupe)
- Passenger seat horizontal motor (Coupe)

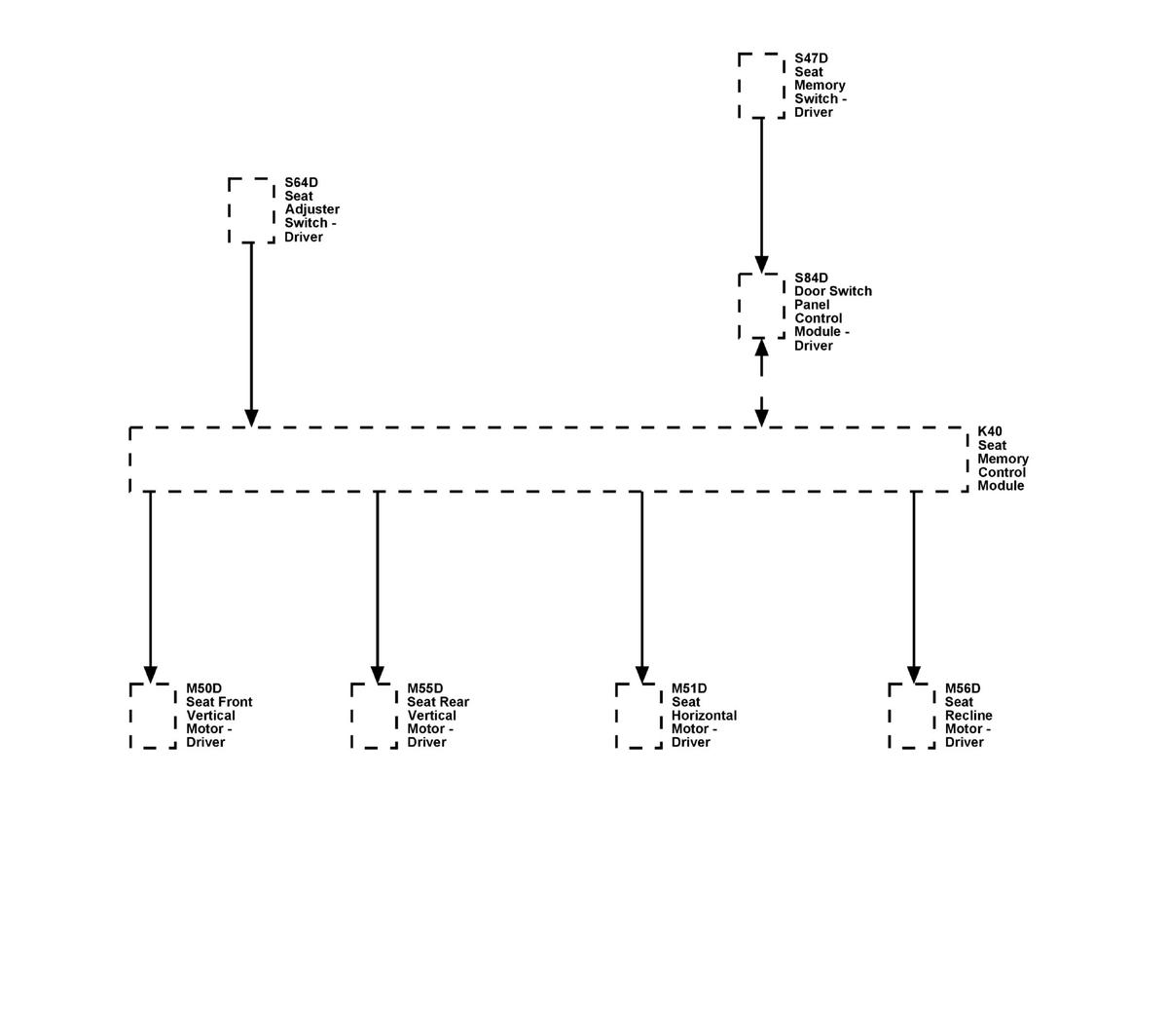

| Callout | Component Name |
|---|---|
| S64D | S64D Seat Adjuster Switch - Driver |
| S47D | S47D Seat Memory Switch - Driver |
| S84D | S84D Door Switch Panel Control Module - Driver |
| K40 | K40 Seat Memory Control Module |
| M56D | M56D Seat Recline Motor - Driver |
| M51D | M51D Seat Horizontal Motor - Driver |
| M55D | M55D Seat Rear Vertical Motor - Driver |
| M50D | M50D Seat Front Vertical Motor - Driver |
