Easy Entry Seat - Coupe Only

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The passenger seat block diagram is identical to the driver seat.

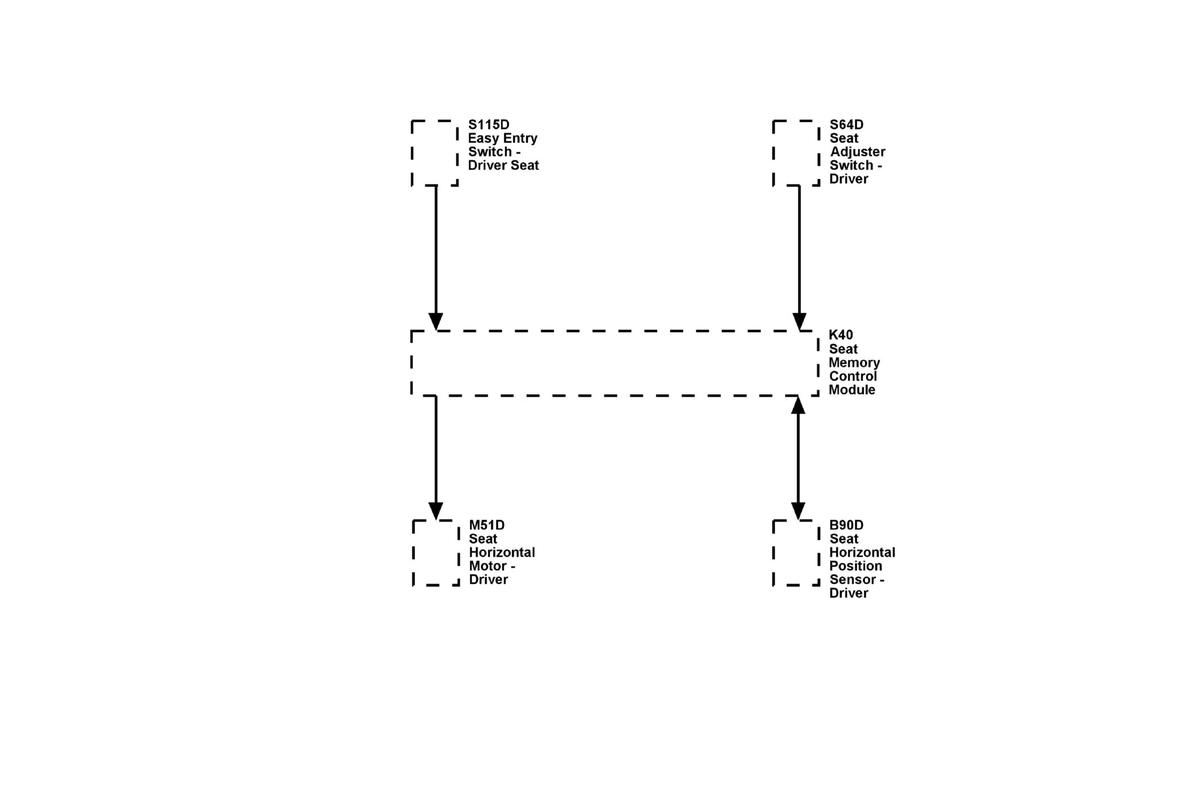

Fig 1: Rear Seat Easy Entry Block Diagram

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
S115D	Easy Entry Switch - Driver Seat
S64D	S64D Seat Adjuster Switch - Driver
K40	K40 Seat Memory Control Module
M51D	M51D Seat Horizontal Motor - Driver
B90D	B90D Seat Horizontal Position Sensor - Driver

The easy entry seat system is available on the coupe only. The system consists of driver and passenger seat easy entry switches, seat horizontal motor, and the seat memory control module. The seat easy entry switches are located in the bezel of the seat back cushion release handle. Battery voltage is supplied at all times to the easy entry switches through a 5 A fuse located in the rear body fuse block.

The seat easy entry switch signal circuits are discrete inputs to the control module. Using the driver seat easy entry switch to move the entire seat forward and rearward functions is the same as using the driver seat adjuster switch. For the circuit description of the seat horizontal operation, refer to Seat Motors above.

The front passenger seat is a non-memory seat, however, with the seat easy entry system seat horizontal motor is controlled by the seat memory control module similar to the driver seat horizontal motor. The seat can be moved forward or rearward using either the passenger seat easy entry switch or the passenger seat adjuster switch. For the circuit description of the seat horizontal operation, refer to Seat Motors above.
