Rear Seat Belt Buckle Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

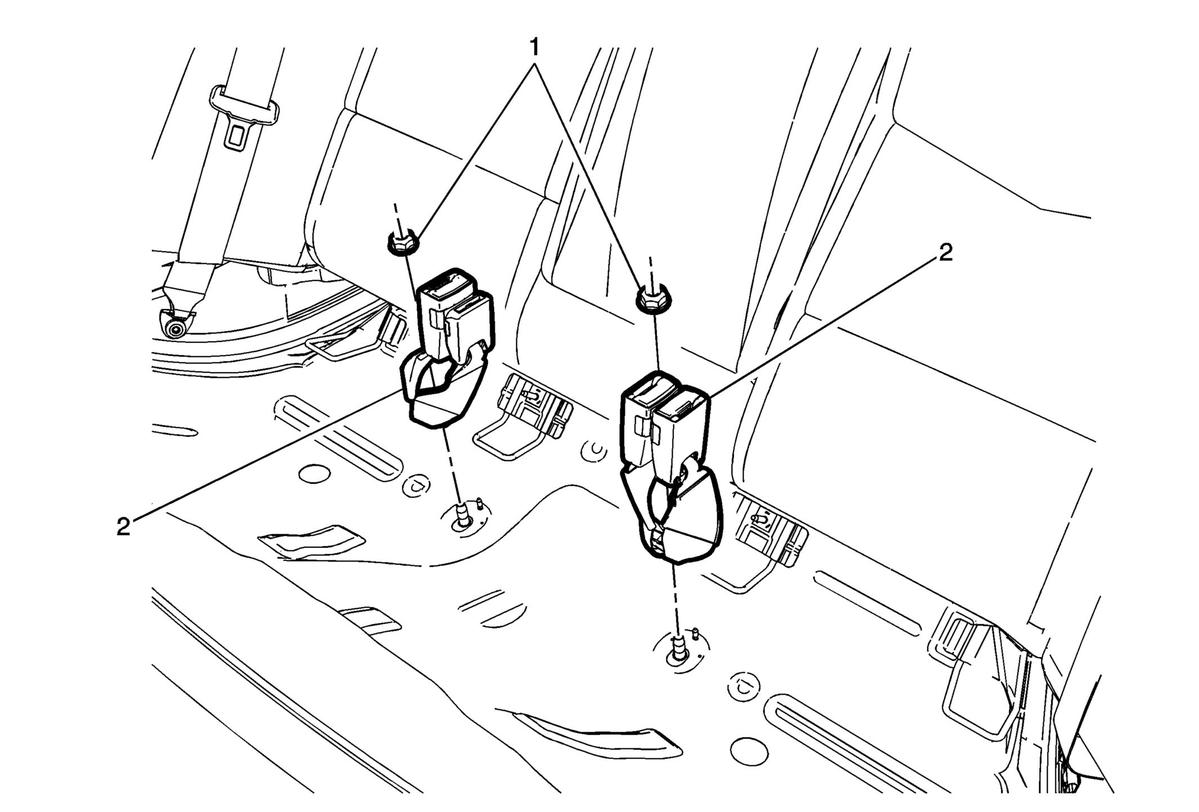

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) . |
|
| 1 | Rear Seat Belt Buckle Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Belt Buckle (Qty: 2) |
