Front Seat Belt Opening Bezel Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

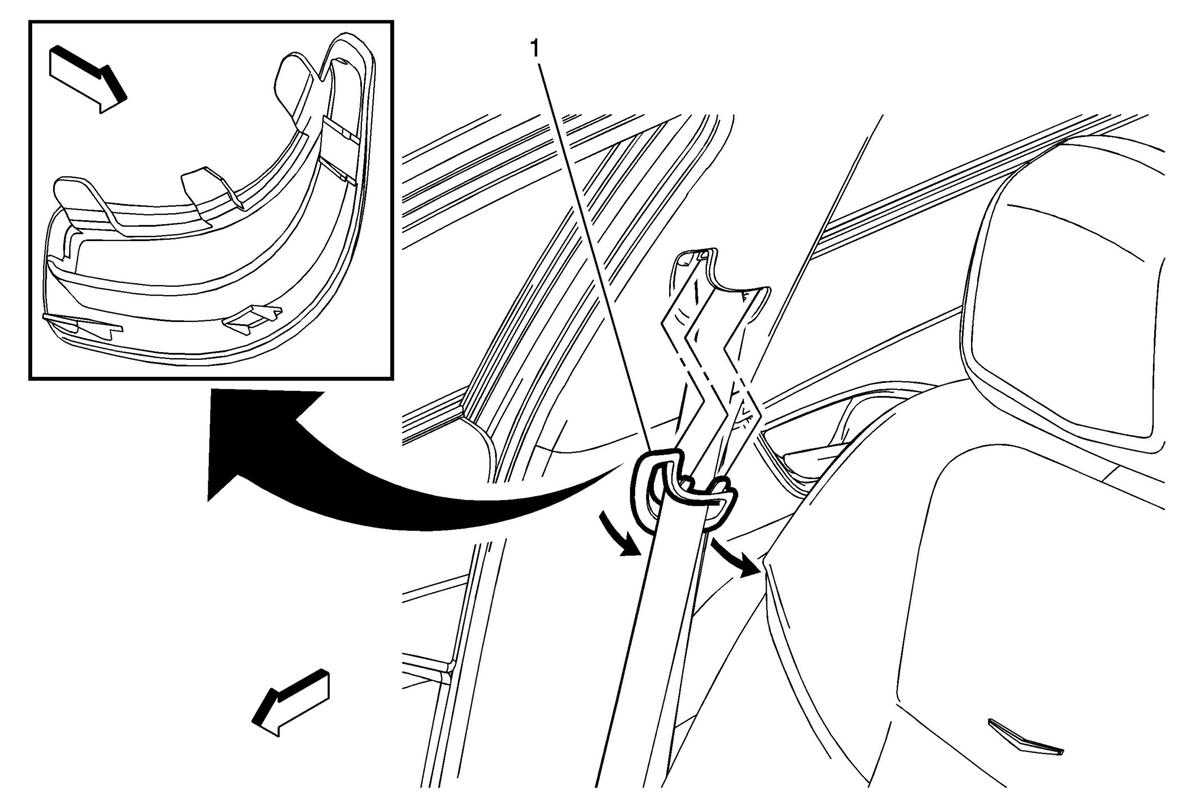

Fig 1: Front Seat Belt Opening Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the seat belt retractor anchor from the seat belt tensioner. Refer to Front Seat Belt Retractor Replacement (Sedan)Front Seat Belt Retractor Replacement (Coupe) .
1	Front Seat Belt Opening Bezel CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Firmly grasp both sides of the bezel pulling the bottom outward to disengage the bottom of the cover. Remove the bezel by sliding the cover downward over the seat belt and seat belt anchor.

Callout

Component Name

Preliminary Procedure
Remove the seat belt retractor anchor from the seat belt tensioner. Refer to Front Seat Belt Retractor Replacement (Sedan)Front Seat Belt Retractor Replacement (Coupe) .

Front Seat Belt Opening Bezel

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

Firmly grasp both sides of the bezel pulling the bottom outward to disengage the bottom of the cover.
Remove the bezel by sliding the cover downward over the seat belt and seat belt anchor.
