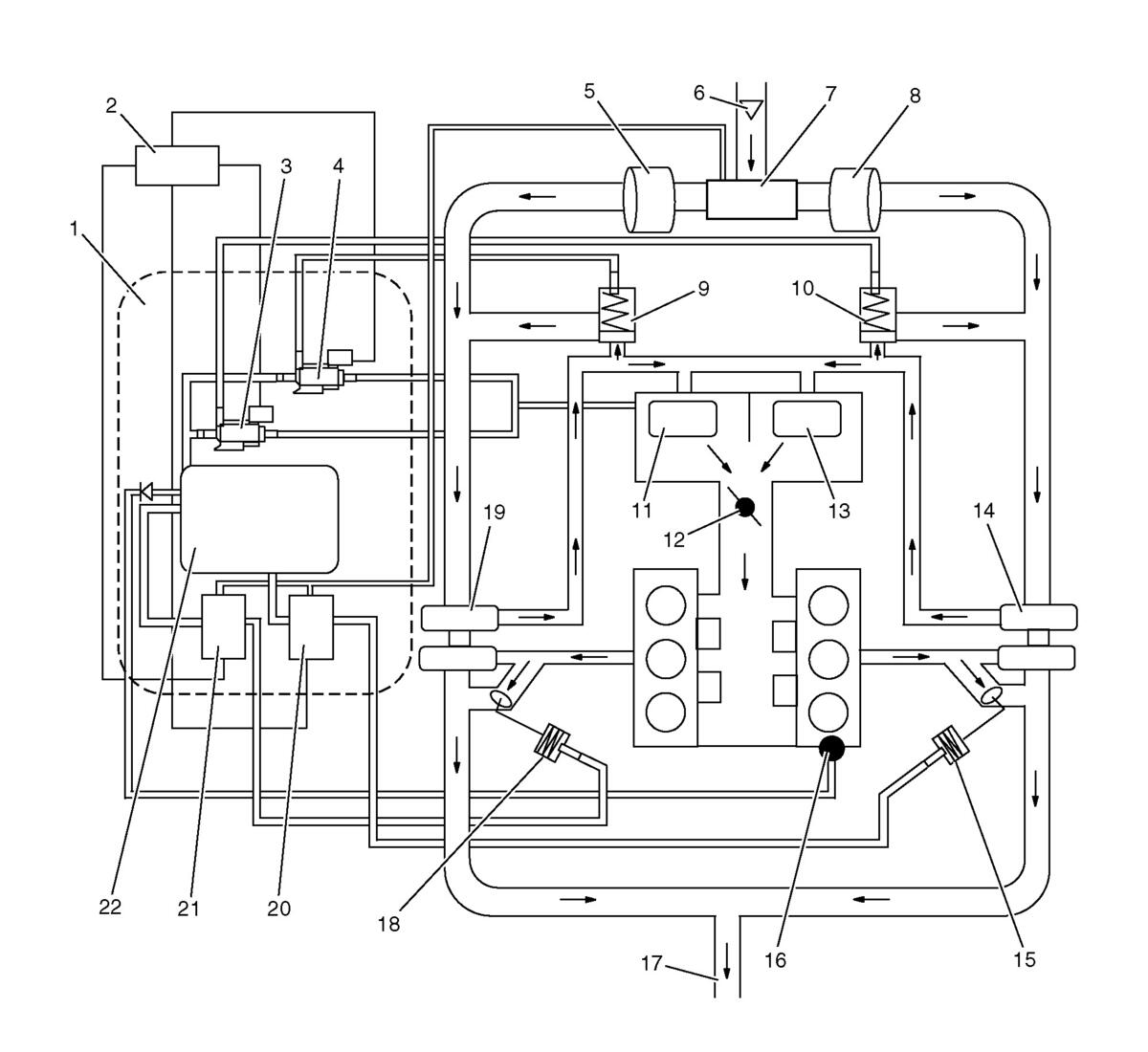

Twin Turbocharger System
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Vacuum Module |
| 2 | Engine Control Module |
| 3 | RH Bypass Valve Solenoid |
| 4 | LH Bypass Valve Solenoid |
| 5 | LH Mass Air Flow Sensor |
| 6 | Air inlet (snorkel) |
| 7 | Air Box |
| 8 | RH Mass Air Flow Sensor |
| 9 | LH Compressor Bypass Valve |
| 10 | RH Compressor Bypass Valve |
| 11 | Charge Air Cooler 2 |
| 12 | Throttle Body |
| 13 | Charge Air Cooler 1 |
| 14 | RH Turbocharger |
| 15 | RH Wastegate Actuator |
| 16 | Mechanical Vacuum Pump |
| 17 | Exhaust |
| 18 | LH Wastegate Actuator |
| 19 | LH Turbocharger |
| 20 | RH Wastegate Regulator Solenoid Valve |
| 21 | LH Wastegate Regulator Solenoid Valve |
| 22 | Vacuum Tank or Tanks (LF4) |
