Passenger Compartment Components - Passenger Seat Components (W2E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

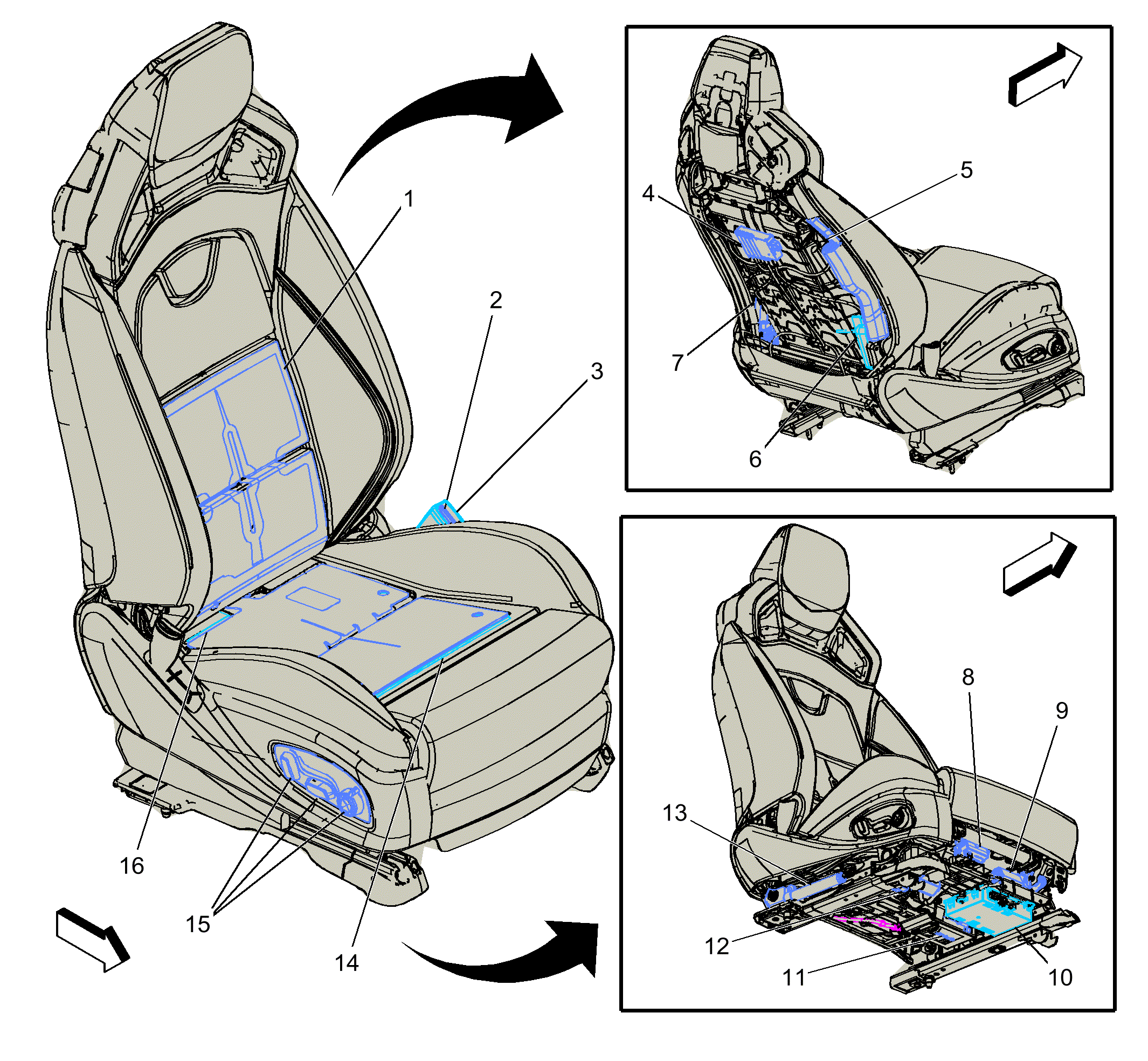

Fig 1: Passenger Compartment Components - Passenger Seat Components (W2E)

Courtesy of GENERAL MOTORS COMPANY

Items
1: E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1)
2: B88P Seat Belt Switch - Passenger
3: B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger
4: K134P Seat Bolster Memory Control Module - Passenger (W2E) K134P Seat Bolster Memory Control Module - Passenger (W2E)
5: F106RF Seat Side Air Bag - Right Front F106RF Seat Side Air Bag - Right Front
6: G31P Seat Lumbar/Bolster Pump - Passenger G31P Seat Lumbar/Bolster Pump - Passenger (-W2E)G31P Seat Lumbar/Bolster Pump - Passenger (W2E)
7: M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger (AQ9)M56P Seat Recline Motor - Passenger (W2E)
8: K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (KA1+W2E)K29F Seat Heating Control Module - Front X2 (KA1+W2E)K29F Seat Heating Control Module - Front X1 (KA1-W2E)K29F Seat Heating Control Module - Front X2 (KA1-W2E)
9: M50P Seat Front Vertical Motor - Passenger M50P Seat Front Vertical Motor - Passenger (AQ9/W2E)
10: K40P Seat Memory Control Module - Passenger (W2E) K40P Seat Memory Control Module - Passenger X1 (W2E)K40P Seat Memory Control Module - Passenger X2 (W2E)K40P Seat Memory Control Module - Passenger X3 (W2E)K40P Seat Memory Control Module - Passenger X5 (W2E)K40P Seat Memory Control Module - Passenger X6 (W2E)
11: M51P Seat Horizontal Motor - Passenger M51P Seat Horizontal Motor - Passenger
12: M55P Seat Rear Vertical Motor - Passenger M55P Seat Rear Vertical Motor - Passenger (AQ9/W2E)
13: F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
14: B60 Passenger Presence Sensor
15: S64P Seat Adjuster Switch - Passenger S64P Seat Adjuster Switch - Passenger X1 (AQ9)S64P Seat Adjuster Switch - Passenger X2 (AQ9)S64P Seat Adjuster Switch - Passenger (W2E)
16: E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1+W2E)E14D Seat Heating Element - Passenger Cushion (KA1-W2E)
