Heated Seats - Passenger Front (KA1-W2E)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

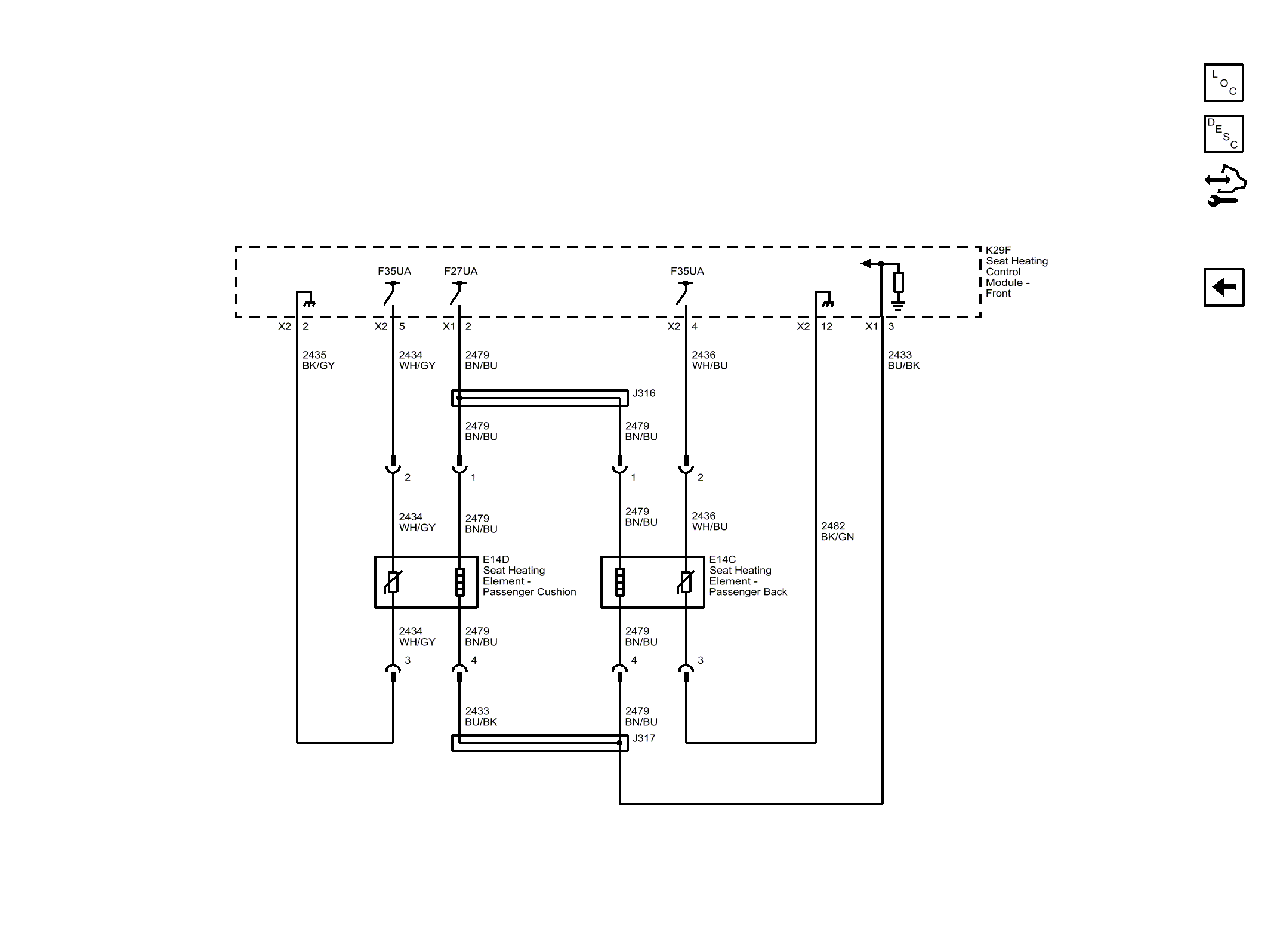

Fig 1: Heated Seats - Passenger Front (KA1-W2E)
GM4569572Courtesy of GENERAL MOTORS COMPANY
