Section 266 (Seat Heating System And Seat Cooling System)
>>
Schematic Wiring Diagrams
>>
Heated/Cooled Seat Wiring Schematics
>>
Heated Seats - Driver Front (KA1-W2E)
Heated Seats - Driver Front (KA1-W2E)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

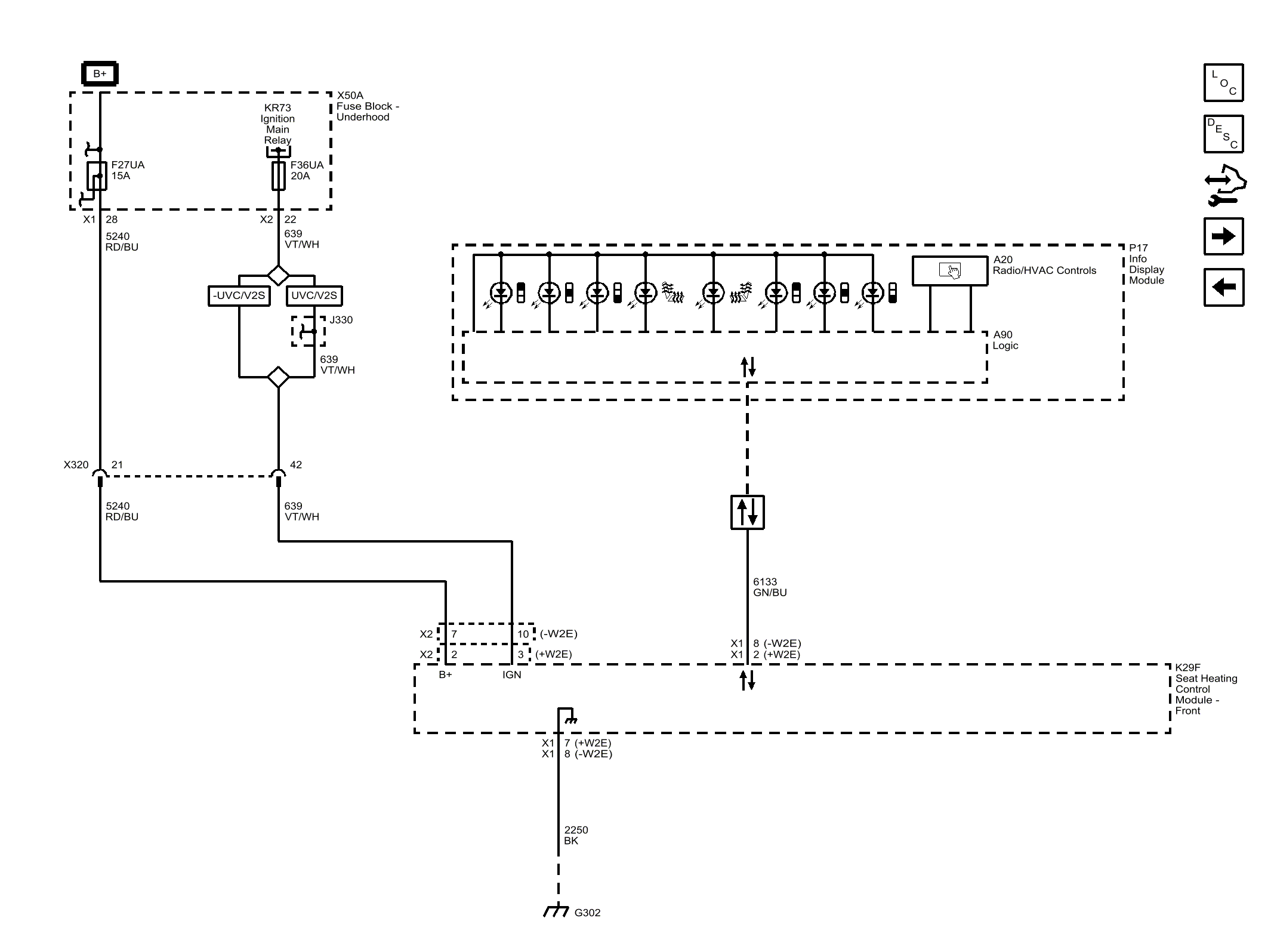

Fig 1: Heated Seats - Driver Front (KA1-W2E)
Courtesy of GENERAL MOTORS COMPANY

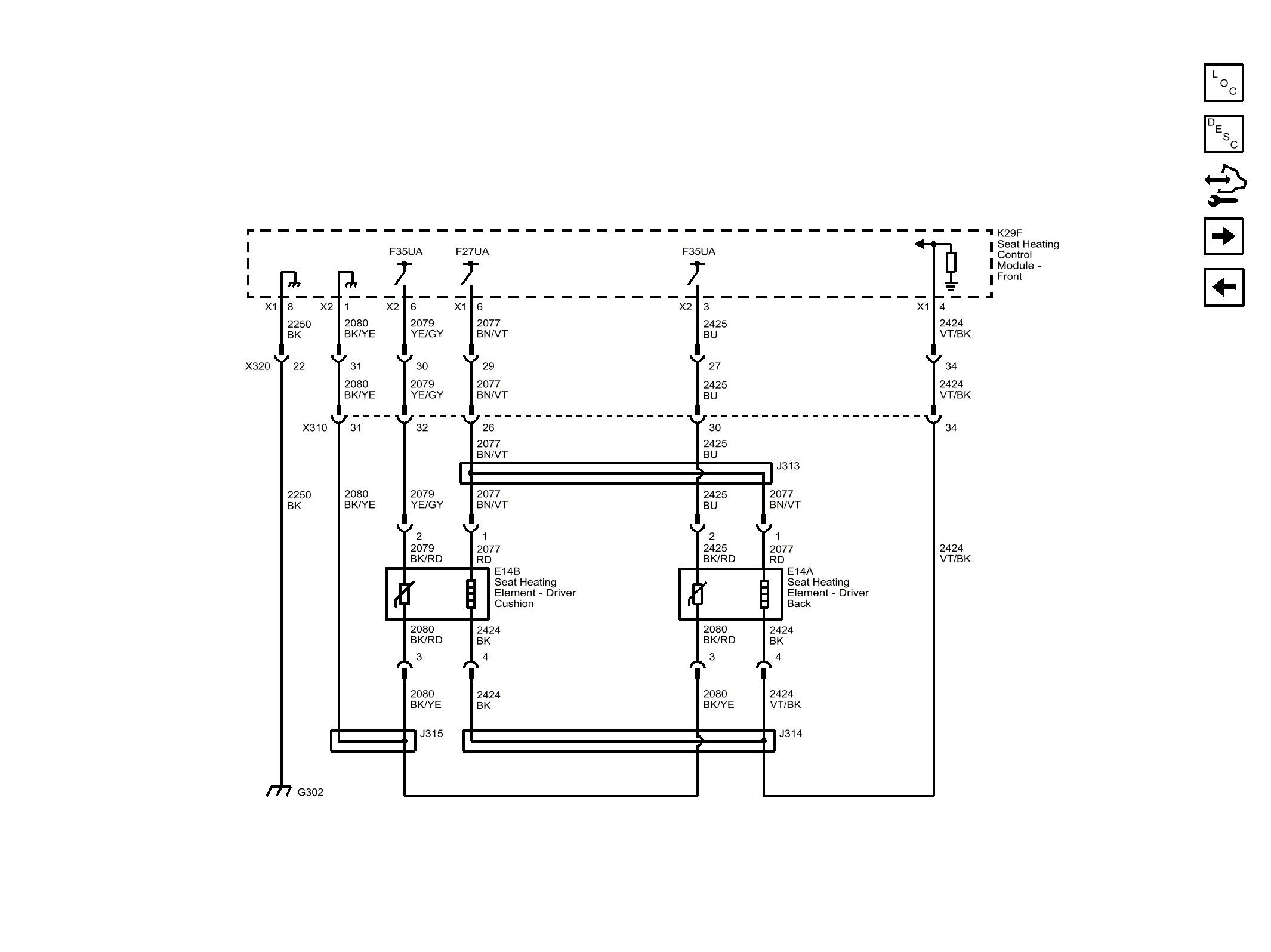

Fig 1: Heated Seats - Driver Front (KA1-W2E)
Courtesy of GENERAL MOTORS COMPANY
