Heated Seat Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
The heated seat system consists of the following components:
- Radio/HVAC controls with heated seat switches
- Body control module
- Seat heating control module
- Seat cushion heating element
- Seat back heating element
NOTE:

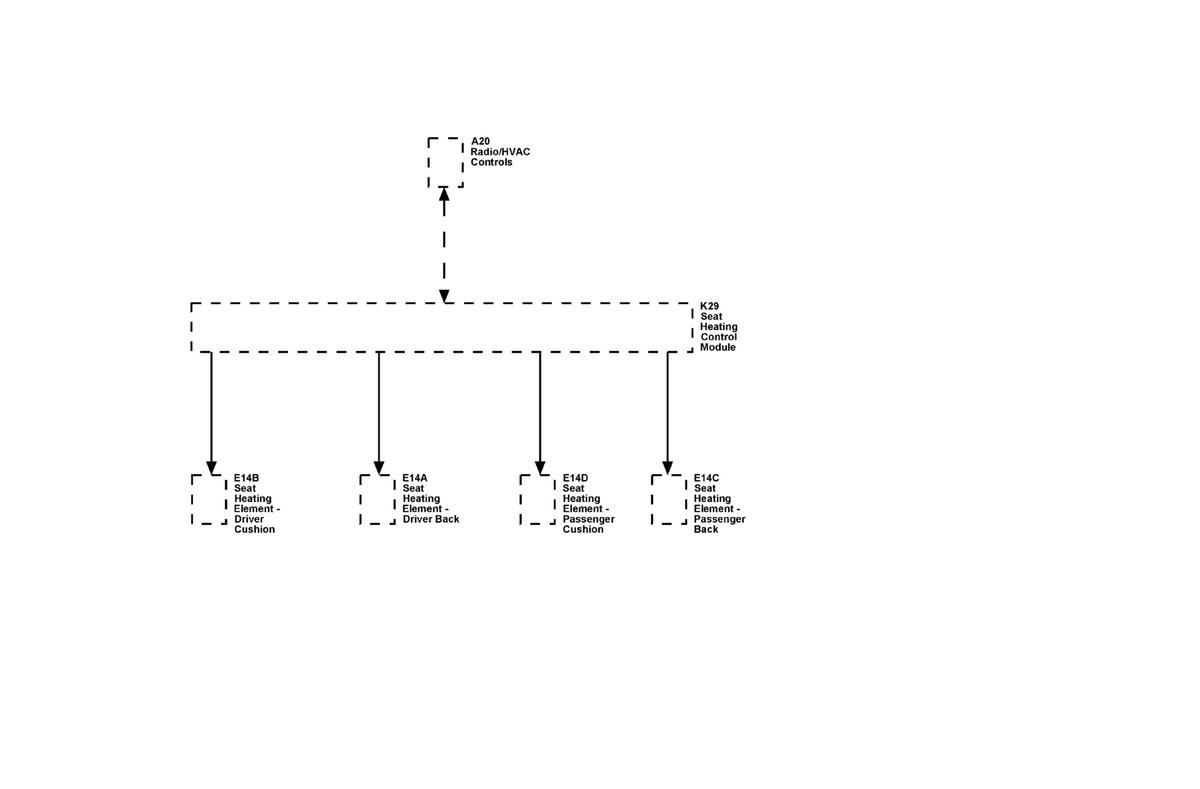

The passenger seat block diagram is identical to the driver seat.
| Callout | Component Name |
|---|---|
| A20 | A20 Radio/HVAC Controls |
| K29 | K29 Seat Heating Control Module |
| E14B | E14B Seat Heating Element - Driver Cushion |
| E14A | E14A Seat Heating Element - Driver Back |
| E14D | E14D Seat Heating Element - Passenger Cushion |
| E14C | E14C Seat Heating Element - Passenger Back |
